DC Power ON / OFF Switch

SPST NO (Single Pole Single Throw, Normal Open) DC Contactor

Top Hat Shape Bracket (optional)

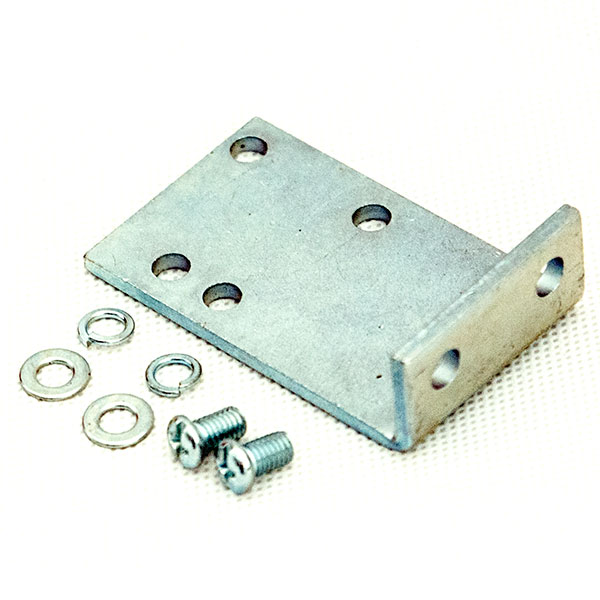

"L" Shape Bracket (optional)

Overview

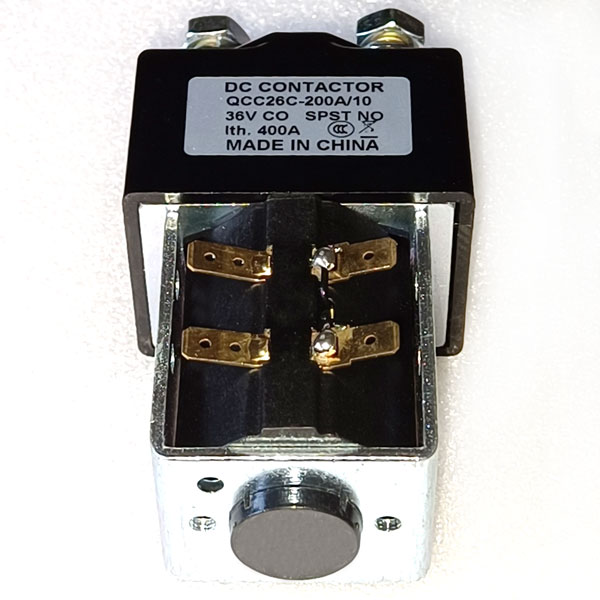

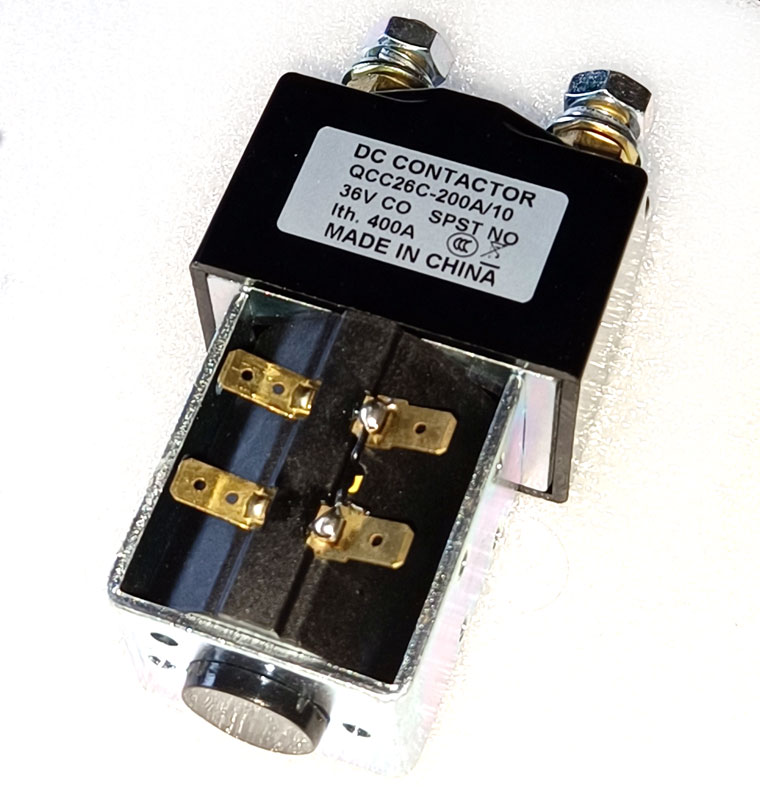

The QCC26C-200A/10B DC contactors are SPST (Single Pole Single Throw; normally open type) DC power breaking devices, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. QCC26C-200A/10B have main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC26C-200A/10B DC contactors can also be used in different DC power systems, DC power source ON / OFF switch, DC motor driving, telecommunication system, etc.

• Main rated load current of contact circuit (amps):
  • 200A with interrupted load
  • 150A with uninterrupted load
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact: not above 60mV

Specifications:

• Model: QCC26C-200A/10B
• Contactor type: SPST / NO (single pole single throw, normal open)
• Voltage options (Volts): 12V, 24V, 36V, 48V or 72V
• Magnetic blowout:
  • 12V: yes
  • 24V: yes
  • 36V: yes
  • 48V: yes
  • 72V: yes
  • If don't want the blowout function, please contact us
• Mounting bracket (need to buy separately):
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.68 kg

QCC26C-200A/10B can be used as the replacements of Albright SW180 DC contactors, for example 48V QCC26C-200A/10B to replace Albright SW180-108 or Albright SW180B-108; 24V QCC26C-200A/10 to replace Albright SW180B-751.

We supply also 100A SPST contactor QCC26C-100A/10 and 400A SPST contactor QCC26C-400A/10.

All products listed in this page have the main contact structure of one "normal open" (code 10). If you need the QCC26C-200A contactors of other main contact structures, please contact us.

QCC26C-200A/10B Diagram:
