DC Power ON / OFF Switch

SPST NO (Single Pole Single Throw, Normal Open) DC Contactor

Top Hat Shape Bracket (optional)

"L" Shape Bracket (optional)

Overview

The QCC26C-100A/10B DC contactors are SPST (Single Pole Single Throw; normally open type) DC power breaking devices, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. QCC26C-100A/10B have main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC26C-100A/10B DC contactors can also be used in different DC power systems, DC power source ON / OFF switch, DC motor driving, telecommunication system, etc.

• Main rated load current of contact circuit (amps):
  • 100A with interrupted load
  • 125A with uninterrupted load
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact: not above 60mV

Specifications:

• Model: QCC26C-100A/10B
• Contactor type: SPST / NO (single pole single throw, normal open)
• Voltage options (Volts): 12V, 24V, 36V, 48V, 60V, 72V or 80V
• Magnetic blowout:
  • 12V: no
  • 24V: no
  • 36V: no
  • 48V: yes
  • 60V: yes
  • 72V: yes
  • 80V: yes
  • The magnetic blowout is used to produce a magnetic field that lengthens the arc between opening contacts of a DC contactor / relay / solenoid or circuit breaker / switch, thereby helping to extinguish the arc.
• Mounting bracket (need to buy separately):
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.43 kg

QCC26C-100A/10B contactors can be used as the substitutes of Albright SW80 DC contactors, for example 48V QCC26C-100A/10B for replacing Albright SW80B-156, 24V QCC26C-100A/10B for replacing Albright SW80-65.

We supply also 200A SPST contactor QCC26C-200A/10B and 400A SPST contactor QCC26C-400A/10B.

All products listed in this page have the main contact structure of one "normal open" (code 10). If you need the QCC26C contactors of other main contact structures, please contact us.

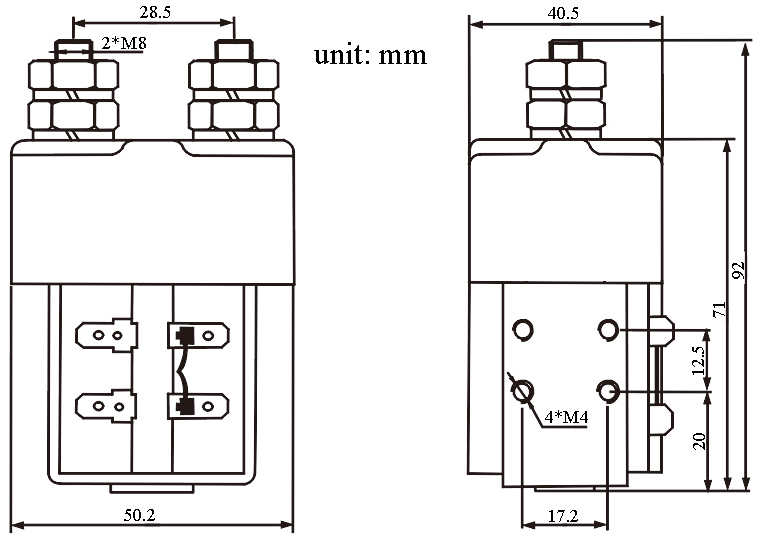

QCC26C-100A/10B Diagram:

Overview

The QCC26C-100A/10B DC contactors are SPST (Single Pole Single Throw; normally open type) DC power breaking devices, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. QCC26C-100A/10B have main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC26C-100A/10B DC contactors can also be used in different DC power systems, DC power source ON / OFF switch, DC motor driving, telecommunication system, etc.

• Main rated load current of contact circuit (amps):
  • 100A with interrupted load
  • 125A with uninterrupted load
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact: not above 60mV

Specifications:

• Model: QCC26C-100A/10B
• Contactor type: SPST / NO (single pole single throw, normal open)
• Voltage options (Volts): 12V, 24V, 36V, 48V, 60V, 72V or 80V
• Magnetic blowout:
  • 12V: no
  • 24V: no
  • 36V: no
  • 48V: yes
  • 60V: yes
  • 72V: yes
  • 80V: yes
  • The magnetic blowout is used to produce a magnetic field that lengthens the arc between opening contacts of a DC contactor / relay / solenoid or circuit breaker / switch, thereby helping to extinguish the arc.
• Mounting bracket (need to buy separately):
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.43 kg

Top Hat Shape Bracket (optional)

"L" Shape Bracket (optional)

QCC26C-100A/10B contactors can be used as the substitutes of Albright SW80 DC contactors, for example 48V QCC26C-100A/10B for replacing Albright SW80B-156, 24V QCC26C-100A/10B for replacing Albright SW80-65.

We supply also 200A SPST contactor QCC26C-200A/10B and 400A SPST contactor QCC26C-400A/10B.

All products listed in this page have the main contact structure of one "normal open" (code 10). If you need the QCC26C contactors of other main contact structures, please contact us.

QCC26C-100A/10B Diagram:
