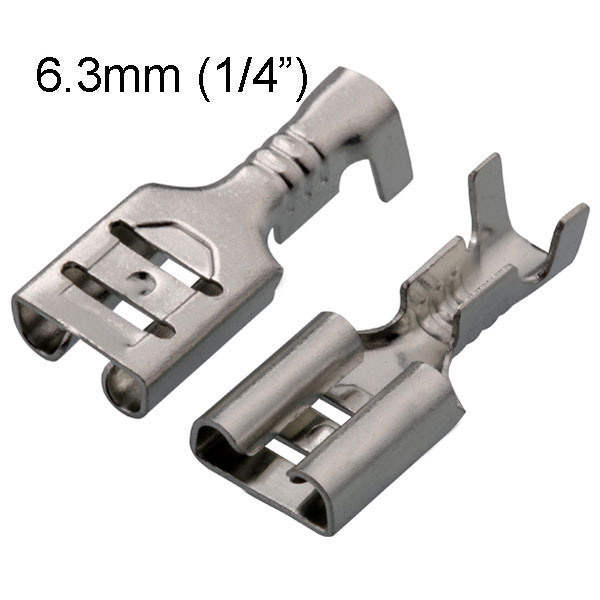

1/4" (6.3mm) Cold-Press Crimping Female Terminal

Fits 6.3x0.8mm male terminal (0.8 is the thickness of terminal)

SPADE.htm1/4" (6.3mm) spade contactors are cold-press tin plated brass terminals, widely used in automobile and automatic industries. With the plastic protectors, these terminals support max. 35 amp continual electric current.

Features:

• Material: brass, tin-plated
• Wire size:
  • 6.3A: 0.3 - 0.75 mm² (26 - 20 AWG)
  • 6.3B: 0.75 - 2.5 mm² (20- 10 AWG)
  • 6.3C: 2.5 - 4.0 mm² (10 - 6 AWG)
  • 6.3D: 4.0 - 6.0 mm² (6 - 3 AWG)
• Fits male terminals 6.3x0.8 mm (0.8 mm is the thickness of male terminal)
• Inserting connector, fast connecting & disconnecting
• Silicon sheath, isolation & protection

Dimensions:

1/4" (6.3mm) Cold-Press Crimping Female Terminal

Fits 6.3x0.8mm male terminal (0.8 is the thickness of terminal)

SPADE.htm1/4" (6.3mm) spade contactors are cold-press tin plated brass terminals, widely used in automobile and automatic industries. With the plastic protectors, these terminals support max. 35 amp continual electric current.

Features:

• Material: brass, tin-plated
• Wire size:
  • 6.3A: 0.3 - 0.75 mm² (26 - 20 AWG)
  • 6.3B: 0.75 - 2.5 mm² (20- 10 AWG)
  • 6.3C: 2.5 - 4.0 mm² (10 - 6 AWG)
  • 6.3D: 4.0 - 6.0 mm² (6 - 3 AWG)
• Fits male terminals 6.3x0.8 mm (0.8 mm is the thickness of male terminal)
• Inserting connector, fast connecting & disconnecting
• Silicon sheath, isolation & protection

Dimensions:
