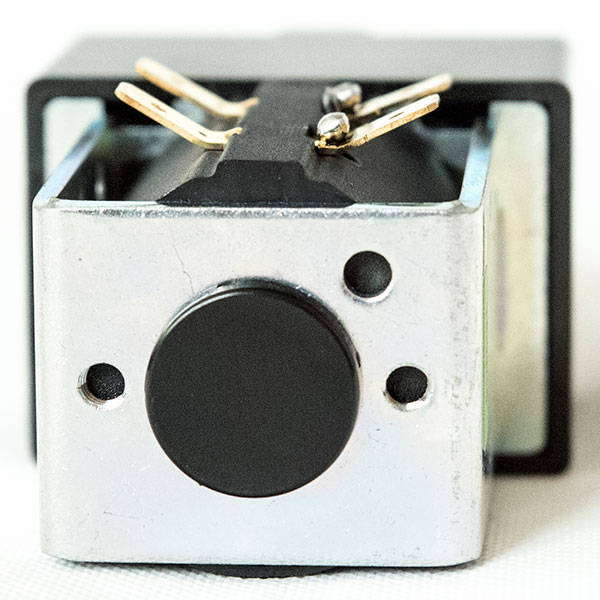

Albright SPST contactor SW180B-751, Forkift / Golf Cart Solenoid

Single pole single throw, rated for 24V / 200A CO (continuous load)

Overview

The Albright DC contactor SW180B-751 is designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.

SW180B UL recognized DC contactors are used in both battery powered vehicles and power distribution systems. This contactor is rated 200A for resistive loads (Power System) and 150A for inductive/capacitive loads (electric motors).

• Model: SW180B-751, upgraded version of SW180B-4 (Zapi B2SW23)
• Main Circuit Current Rating: 200A
• Main Circuit Voltage Rating: 24V DC
• Contactor Weight: about 0.68 kg
• Manufacturer: ALBRIGHT (made in China)

There are many different SW180 / SW180B sub-models used in different applications. Some of them are regularly in stock, some not.

• SW180B-4 (Zapi B2SW23) 24V
• SW180B-6 36V
• SW180-8 (Zapi B4SW21/B4SW22) 48V
• SW180B-7 (Zapi B4SW23) 48V
• SW180B-14 (Zapi B8SW21) 72V/80V
• SW180-13 (Zapi B8SW21) 80V
• SW180-108 & SW180B-108 48V (replacement of SW180-8 & SW180B-7)

We supply also the mounting bracket for SW180 / SW180B contactors:

• Top hat shape
• L shape

For Albright contactor model SW180B-751, 6.3 mm (0.25" or 1/4") spade terminals are used for coil connections.

For those models not included in our selling list, please contact us for knowing more details of price and shipping delay.

Click to download the Albright DC Contactor Model List (PDF format).
