MAHLE 30V / 3.3kW Three Phase AC Motors AMT7132

E-Z-GO Part Number 680638

48V Battery Powered E-Z-GO Golf Cart & Utility Vehicle Traction Motor

AC induction machines are popular due to their simplicity, reliability, and direct operation from an AC line voltage. More and more, AC motors are used in battery powered vehicles. For some electric car makers, almost all car models are driven by AC motors.

Equipped with a high resolution speed encoder (64 pulses, direction determined with A and B channels), MAHLE 3-Phase AC Motors AMT7132 are widely used in electric vehicles as the traction motor. Typical applications include:

• E-Z-GO 2016-2022 RXV 2+2 48V
• E-Z-GO 2016-2022 RXV Fleet 48V
• E-Z-GO 2016-2022 Freedom RXV 48V
• E-Z-GO 2017-2021 RXV Fleet ELiTE Lithium
• E-Z-GO 2017-2021 Freedom RXV ELiTE Lithium
• E-Z-GO RXV 2+2 ELiTE Lithium
• E-Z-GO 2021-2022 Express S4 ELiTE Lithium
• E-Z-GO 2016-2024 CUSHMAN / TEXTRON:
  • Hauler 800
  • Hauler 800X ELiTE Lithium
  • LSV
  • Etc.

Specifications:

• Model: AMT7132
• Brand: MAHLE
• Motor type: three phases AC motor
• Nominal power rate: 30V 3.3kW
• Vehicle / truck battery voltage: 48V
• Spline teeth number: 19
• Speed sensor: power supply 4.5 - 24V DC; 64 pulses / A & B channels

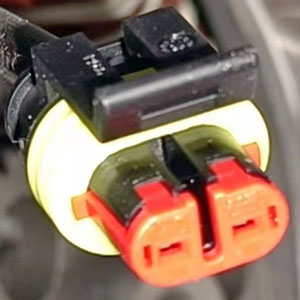

• Temperature sensor: Thermosensor PT1000
• Speed sensor and thermosensor mating connectors are included
• Insulation: class H
• Net weight: 27 kg

We supply also MAHLE AMT7181 3-Phase AC motor.
