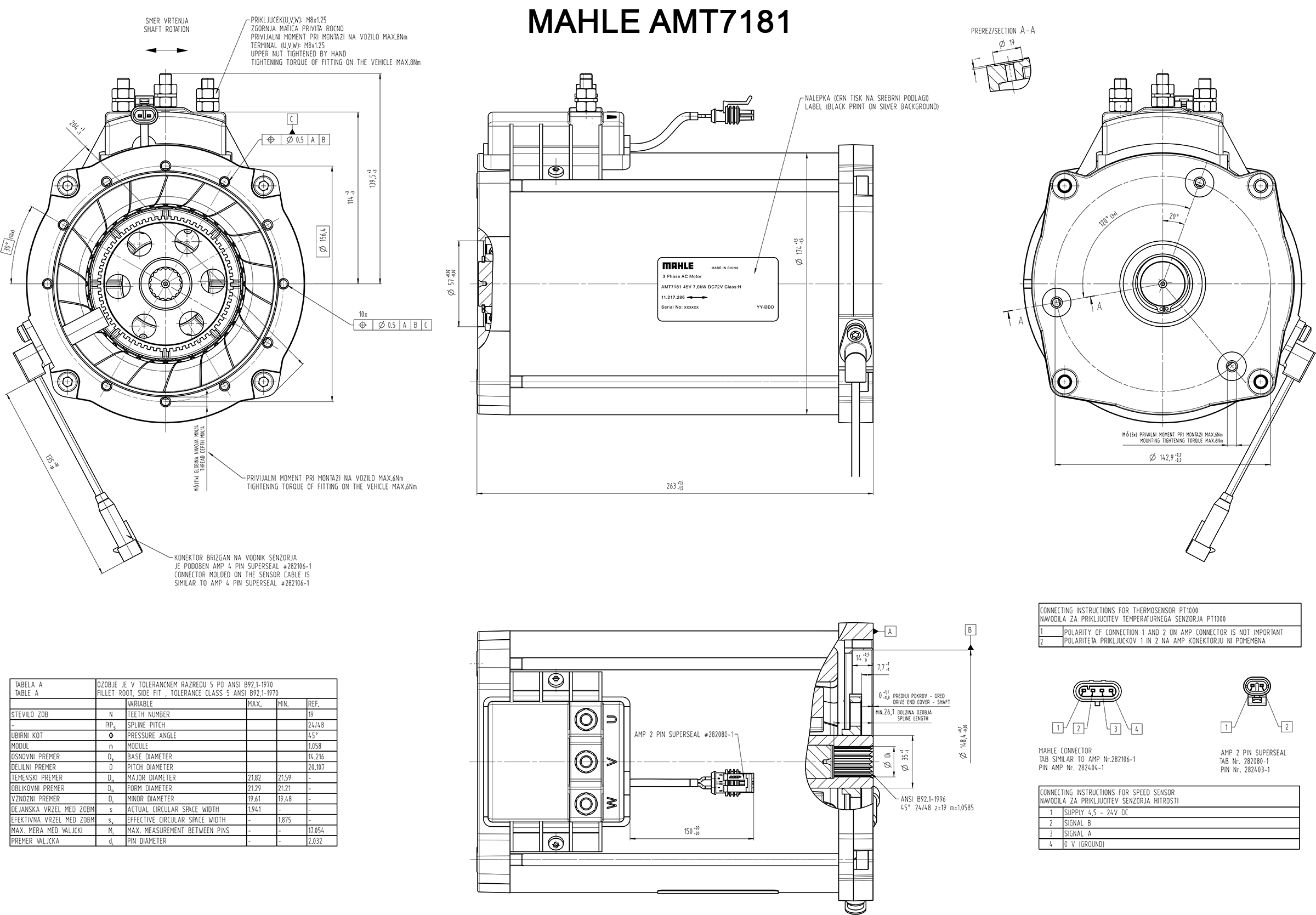

MAHLE 3 Phase AC Motor AMT7181

45V / 7.0kW traction motor，with thermo sensor PT1000 & speed encoder

We supply also 30V / 3.3kW MAHLE AMT7132 / E-Z-GO 680638, traction motor for 48V golf carts & utility vehicle.

AC induction machines are popular due to their simplicity, reliability, and direct operation from an AC line voltage. More and more, AC motors are used in battery powered vehicles. For some electric car makers, almost all car models are driven by AC motors.

Equipped with a high resolution speed encoder (64 pulses, direction determined with A and B channels), MAHLE 3 Phase AC Motors AMT7181 are widely used in electric vehicles as the traction motor. Typical applications include:

• Passenger transporter
• Golf cart
• Luggage truck / tractor
• Aviation / airport service mobility vehicle
• Industrial utility vehicle
• Etc.

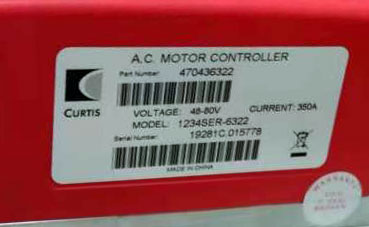

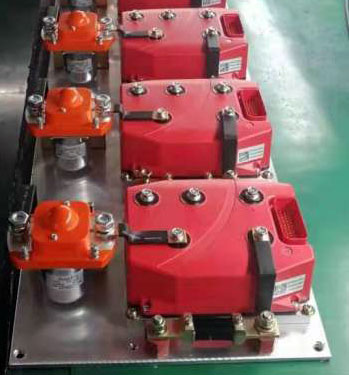

We supply also the controller or controller assemblage (for example, CURTIS 1234SER-6322, 1236E-6401 or 1236E-6421) for working with motor AMT7181. The controller may be reprogrammed for better adaptating to your vehicle. But it is still recommended that you can tune the controller in field, with a CURTIS 1313-4331 handheld programmer or a CURTIS PC station programmer 1314-4402.

Specifications:

• Model: AMT7181 (MAHLE reference number 11.217.286, Letrika P/N IM7082)
• Brand: MAHLE
• Motor type: three phases AC motor
• Duty: S2-60MIN
• Nominal power rate: 45V 7.0kW
• Vehicle / truck battery voltage: 72V
• Spline teeth number: 19
• Speed sensor: power supply 4.5 - 24V DC; 64 pulses / A & B channels
• Temperature sensor: Thermosensor PT1000
• Speed sensor and thermosensor mating connectors are included
• Insulation: class H
• Weight: 30 kg

There are several MAHLE AC motor models that we can propose, hereafter are two of them:

• AMT7192: 30V / 3.3kW Three Phase AC Motor (Vehicle Battery Voltage DC48V), Download Diagram, PDF Format
• AMT7193: 30V / 5.0kW Three Phase AC Motor (Vehicle Battery Voltage DC48V), Download Diagram, PDF Format

For more information of motors AMT7181, AMT7192, AMT7193 or else, please contact us.
