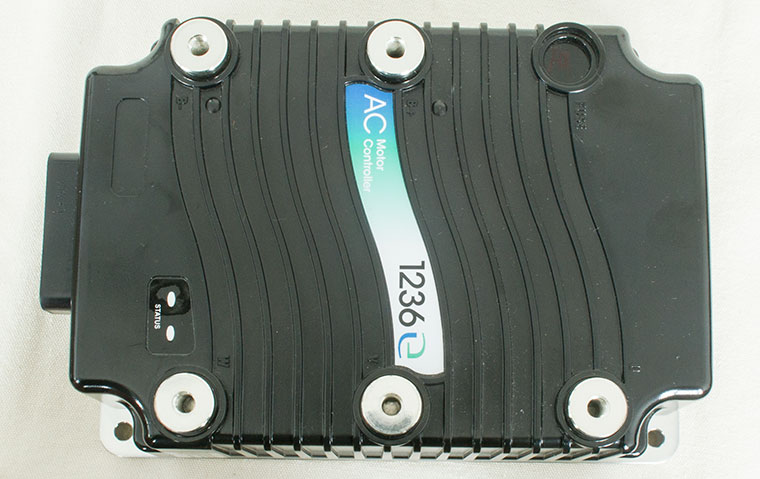

CURTIS AC Controller 1236E-6401 / 1236E-6421

Forklift & Golf Cart 48-80V / 350A AC motor speed controller

Notice: For the buyer without CONTROLLER APPLYING EXPERIENCE, please consult your cart/motor dealer and read carefully the CURTIS 1236E AC Motor Controller Datasheet before making the purchase.

Overview:

CURTIS 1236E AC induction motor controllers deliver smooth power unlike any previous vehicle control system. They provide unprecedented flexibility and power through inclusion of a field-programmable logic controller embedded in a state-of-the-art motor controller.

Specifications:

• PWM operating frequency: 15 kHz
• Electrical isolation to heatsink (min.): 500 VAC
• PWM operating frequency: 10 kHz
• Maximum encoder frequency: 15 kHz
• Maximum controller output frequency: 300 Hz
• Heatsink overtemperature cutoff: linear cutback starts at 85°; complete cutoff at 95°
• Heatsink undertemperature cutoff: complete cutoff at -40°

The ‘E’ difference: a significant enhancement to the CURTIS AC family, The ‘E’ models utilize a powerful dual-microprocessor logic architecture to provide improved performance and surpass the requirements of the latest international functional safety standards. CURTIS Models 1236E and 1238E provide advanced control of AC induction motors performing on-vehicle traction drive or hydraulic pump duties. They offer vehicle developers a highly cost-effective combination of power, performance and functionality. Designed primarily for use on medium to large material handling vehicles such as counterbalance or warehouse trucks. The Model 1236E is equally suitable for industrial utility vehicles. The larger Model 1238E is also intended for use on all heavy-duty applications such as Tow Tractors and Airport Ground Support Equipment (GSE).

The embedded logic controller runs a fully functional field-oriented AC motor control operating system (OS) that can be user-tailored via parameter modification. The OS also contains logic to execute OEMdeveloped software, called VCL, that can be used to enhance the controller capabilities beyond the basics.

VCL (Vehicle Control Language) is an innovative software programming language developed by CURTIS. Many electric vehicle functions are uniquely built into the VCL code, and additional functions can be OEM-controlled using VCL code. VCL opens new avenues of customization, product differentiation, and responsiveness to the market.

The CAN bus communications included in the 1236E, as well as in many other CURTIS products, allow these AC induction motor controllers to be part of an efficient distributed system. Inputs and outputs can be optimally shared throughout the system, minimizing wiring and creating integrated functions that often reduce the cost of the system. CURTIS 1236 controllers are the ideal solution for traction, hoist, dual drive, and other motor drive and vehicle control needs.

The 1236E controllers are fully programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. The programmer provides diagnostic and test capability in addition to configuration flexibility.

Key Features:

• CURTIS Model: 1236E-6401 / 1236E-6421 (upgraded version of 1236-6401 / 1236-6402)
• Nominal input voltage: 48-80V
• 2 Minute RMS Current Rating (amps): 350
• S2-60 Minute RMS Current Rating (amps): 100
• MOSFET overtemperature cutback: linear cutback starts at 100°; complete cutoff at 110°C
• MOSFET undertemperature cutback: approx. 50% motor current at -25°C; complete cutoff at -40°C
• All low power connections are made through a single 35-pin AMPSEAL connector
• Throttle Type: 0-5K Ω (default setting), flexible throttle circuitry accommodates a variety of throttle types: 5kΩ–0, 0–5kΩ, 0–5V, etc.
• Operating Ambient Temperature Range: -40°C to 50°C
• Internal Heatsink Operating Temperature Range: -40°C to 95°C
• Storage Ambient Temperature Range: -40°C to 95°C
• Package environmental rating: IP65
• Dimensions: L232xW165xH85 mm
• Net Weight: 4.35 kg

Features Include:

• Increased Performance, Improved functionality
  • Higher performance form, fit and functional replacements for earlier CURTIS Model 1236E AC controllers.
  • CE marked as a programmable safety device under EN ISO 13849-1.
  • Models available for 450 output at 48-80V system voltages. These are true 2 minute RMS ratings, not short duration ‘boost’ ratings.
  • Enhanced 64MHz micro and additional FLASH memory doubles the available VCL code space and provides more than twice the VCL execution speed.
  • Six additional VCL-configurable CAN "mailboxes" significantly increases CAN master capabilities.
  • Advanced Pulse Width Modulation techniques produce low motor harmonics, low torque ripple and minimized heating losses, resulting in high efficiency.
• Unmatched Flexibility
  • Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
  • Programmable for either traction or pump applications.
  • Field upgradeable software.
  • Integrated Battery state-of-charge algorithm and hour meter.
  • Fully-featured generic software and VCL for typical Warehouse Truck applications is included.
  • Comprehensive programming options and VCL allow other applications to be easily supported.
  • CURTIS hand-held or PC Windows programming tools provide easy programming and powerful system diagnostic tools.
  • Integrated status LED provides instant diagnostic indication.
• Robust Safety and Reliability
  • Dual Microprocessor architecture cross-checks critical circuits, logic, and software functions to ensure the highest possible functional safety performance level is achieved.
  • Insulated Metal Substrate power base provides superior heat transfer for increased reliability.
  • Fail-Safe power component design.
  • Reverse polarity protection on battery connections.
  • Short circuit protection on all output drivers.
  • Thermal cutback, warning, and automatic shutdown provide protection to motor and controller.
  • Rugged sealed housing and connectors meet IP65 environmental sealing standards for use in harsh environments.
• Meets or complies with relevant US and International Regulations
  • EMC: Designed to the requirements of EN12895.
  • Safety: Designed to the requirements of:
    • EN1175-1:1998+A1:2010
    • EN (ISO) 13849-1
  • IP65 Rated per IEC 60529.
  • UL recognized per UL583.

1 / 4

2 / 4

3 / 4

4 / 4

Please contact us for payment details: [email protected]
