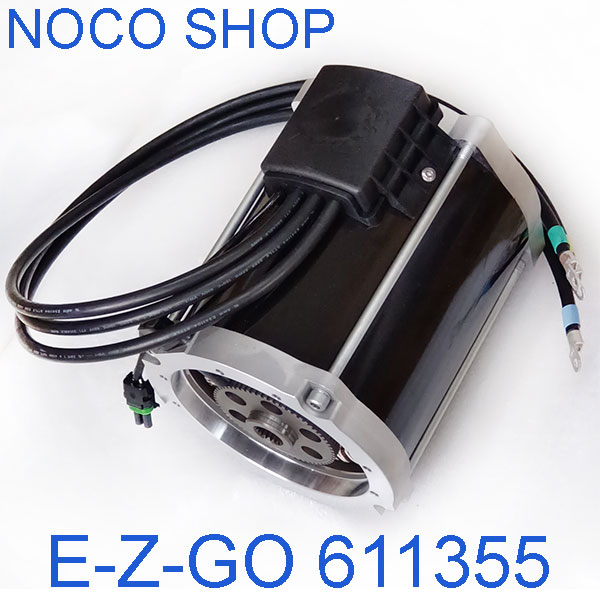

MAHLE 30V / 3.3kW Three Phase AC Motors AMT7156

E-Z-GO part number 611355, 48V battery powered E-Z-GO Golf Cart traction motor

AC induction machines are popular due to their simplicity, reliability, and direct operation from an AC line voltage. More and more, AC motors are used in battery powered vehicles. For some electric car makers, almost all car models are driven by AC motors.

Equipped with a high resolution speed encoder (64 pulses, direction determined with A and B channels), MAHLE 3-Phase AC Motors AMT7156 are widely used in electric vehicles as the traction motor. Typical applications include:

• E-Z-GO 2008-up RXV 48V
• E-Z-GO 2010-2015 2Five 48V

Specifications:

• Model: AMT7156 (E-Z-GO Part Number 611355)
• Brand: MAHLE
• Motor type: three phases AC motor
• Nominal power rate: 30V 3.3kW
• Vehicle / truck battery voltage: 48V

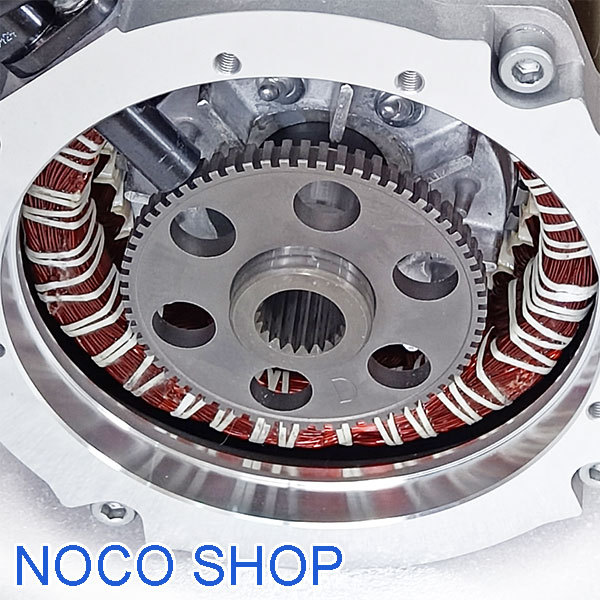

• Spline teeth number: 19

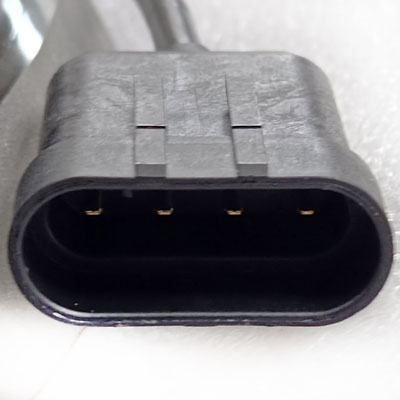

• Speed sensor: power supply 4.5 - 24V DC; 64 pulses / A & B channels

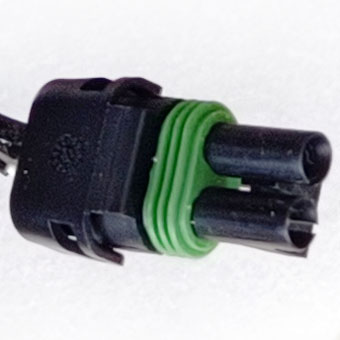

• Temperature sensor: Thermosensor PT1000
• Speed sensor and thermosensor mating connectors are included
• Insulation: class H
• Net weight: 27 kg

We supply also MAHLE AMT7181 3-Phase AC motor.
