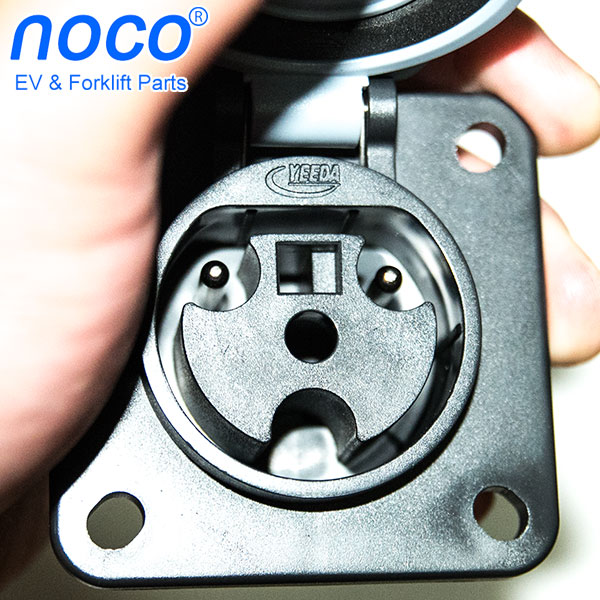

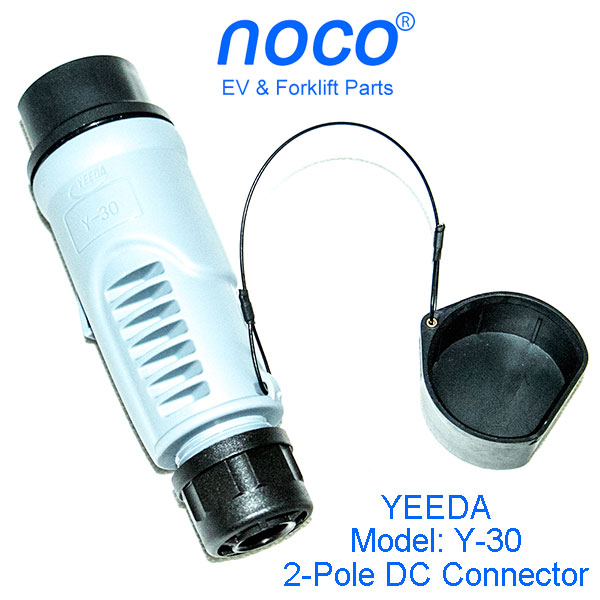

DC Power Connector YEEDA Y-30

Plug + Socket, 12V - 72V / 16A

Typical application: DC power connector for electric vehicle, sending the DC power source to battery pack by inserting the plug (male connector) into the socket (female connector).

We supply also

• YEEDA DC Connector With Internal Switch
• Y-30 AC Connector (110V AC / 220V AC)
• Y-30 AC Connector With 3 x 2.5 mm² Cable, without internal switch

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC / DC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 2-Pole DC connector, L and N (L used as B+, N used as B-, the third pole GND is not used), wiring recommendation:
  • The terminal "L" should be connected to the DC power positive "B+"
  • The terminal "N" should be connected to the DC power negative "B-"
  • The terminal "GND" is not available
• Nominal Current Rating: 16A
• Working Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, and 72V DC
• IP54 Waterproof Design

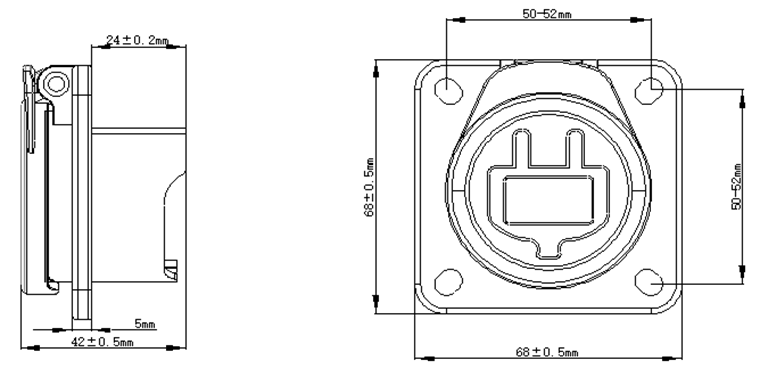

Dimensions:

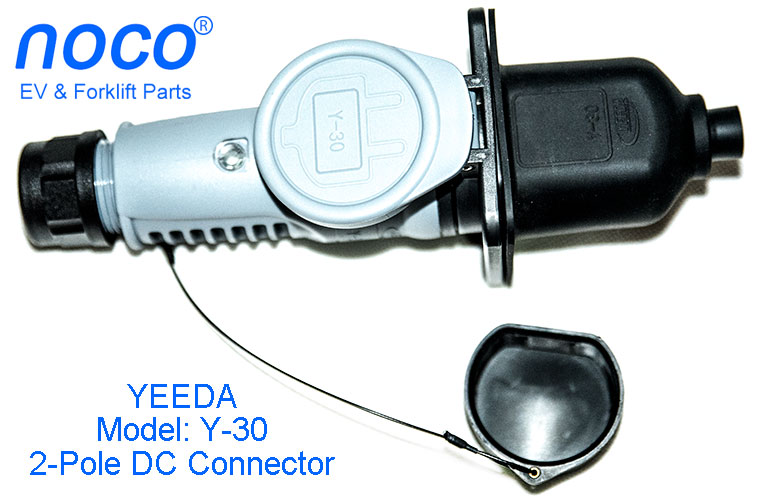

YEEDA DC power connector model Y-30 is a simple plug-in DC power jointing device, rated for 12V - 72V DC / 16A.

Typical application: DC power connector for electric vehicle, sending the DC power source to battery pack by inserting the plug (male connector) into the socket (female connector).

We supply also

• YEEDA DC Connector With Internal Switch
• Y-30 AC Connector (110V AC / 220V AC)
• Y-30 AC Connector With 3 x 2.5 mm² Cable, without internal switch

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC / DC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 2-Pole DC connector, L and N (L used as B+, N used as B-, the third pole GND is not used), wiring recommendation:
  • The terminal "L" should be connected to the DC power positive "B+"
  • The terminal "N" should be connected to the DC power negative "B-"
  • The terminal "GND" is not available
• Nominal Current Rating: 16A
• Working Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, and 72V DC
• IP54 Waterproof Design

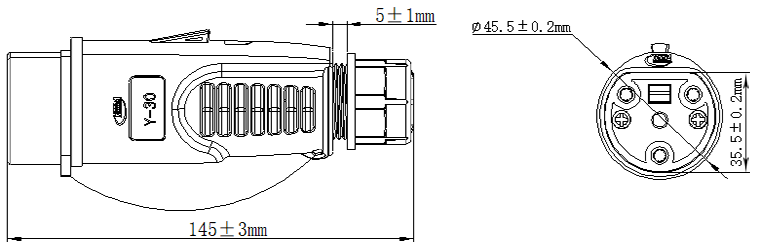

Dimensions:
