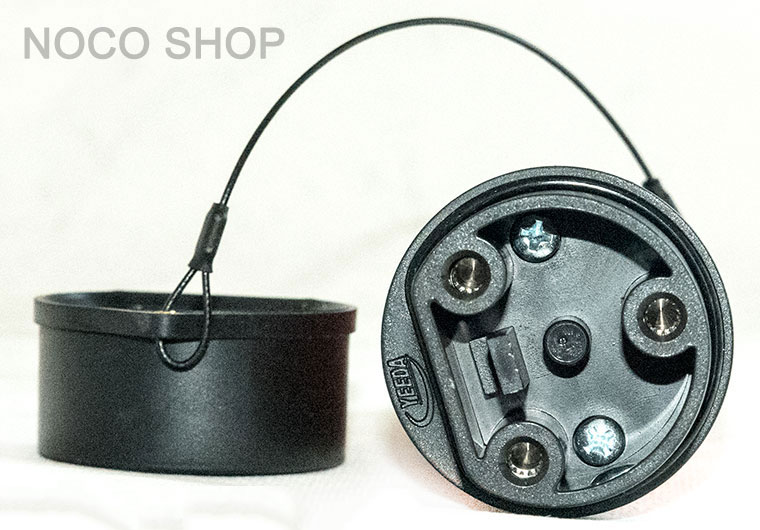

Power Connector YEEDA Y-30, 110V AC / 220V AC - 16A

Plug + Socket, Waterproof Cover Protection, Normal Close Internal Switch

Spade Terminals For Switch

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 3-Pole AC connector with internal switch:
  • 3-Pole: L, N and GND. Wiring recommendation: the terminal "L" should be connected to the unearthed conductive part of AC main supply, the terminal "N" should be connected to the earthed conductive part of AC main supply, and "GND" should be connected to the safety ground of battery charger.
  • Internal switch: NC type (normal close)
• Nominal Current Rating: 16A
• Working Voltage:
  • 110V: 100-120V AC
  • 220V: 200-240V AC
• IP54 Waterproof Design

Dimensions:

Equipped with waterproof cover protection & internal switch, the AC power connectors YEEDA Y-30 (plug + Socket) are applied as 110V AC / 220V AC input for electric vehicle battery chargers.

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 3-Pole AC connector with internal switch:
  • 3-Pole: L, N and GND. Wiring recommendation: the terminal "L" should be connected to the unearthed conductive part of AC main supply, the terminal "N" should be connected to the earthed conductive part of AC main supply, and "GND" should be connected to the safety ground of battery charger.
  • Internal switch: NC type (normal close)
• Nominal Current Rating: 16A
• Working Voltage:
  • 110V: 100-120V AC
  • 220V: 200-240V AC
• IP54 Waterproof Design

Spade terminals for internal switch:

Dimensions:
