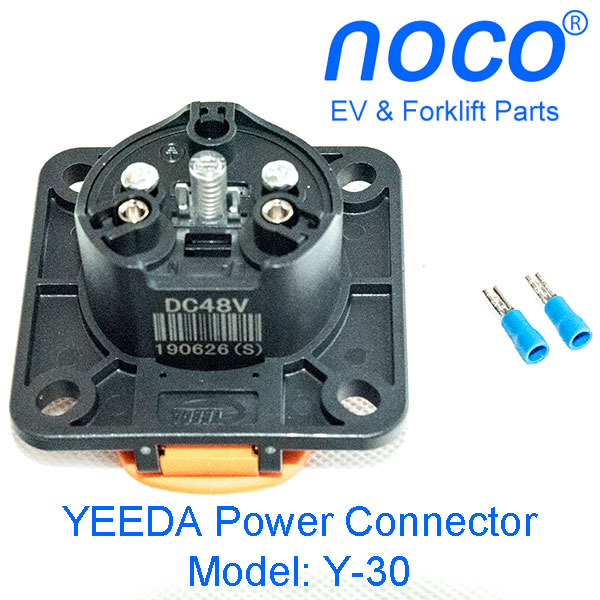

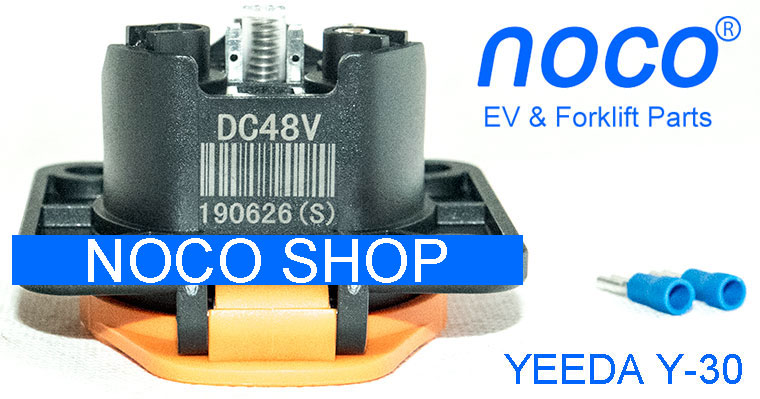

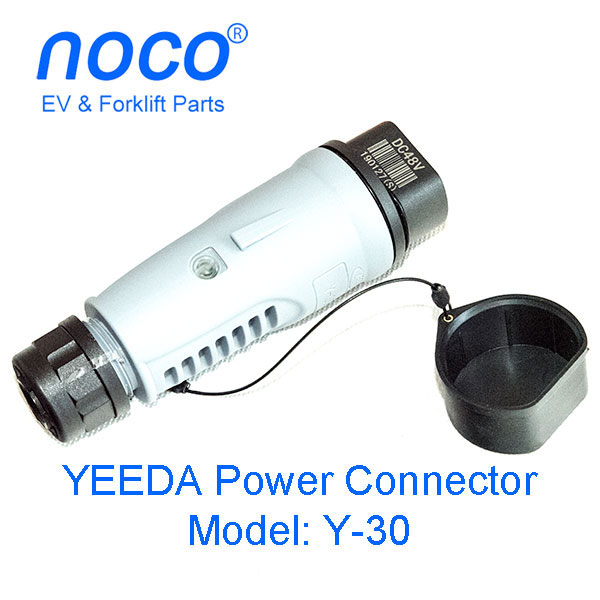

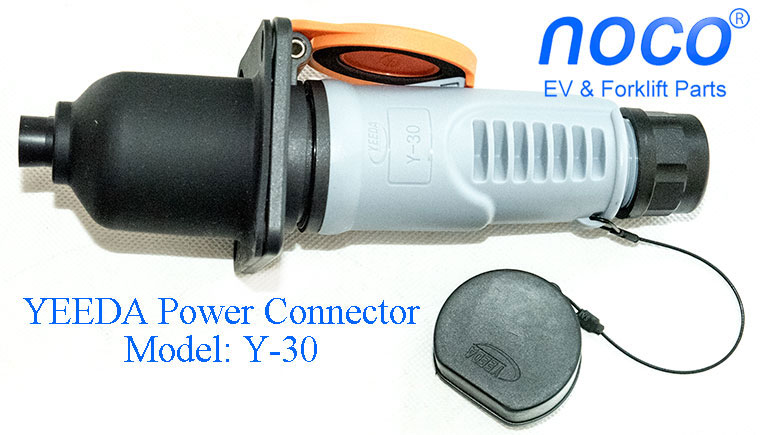

Power Connector YEEDA Y-30, 12V - 72V DC - 16A

Plug + Socket, Waterproof Cover Protection, Normal Close Internal Switch

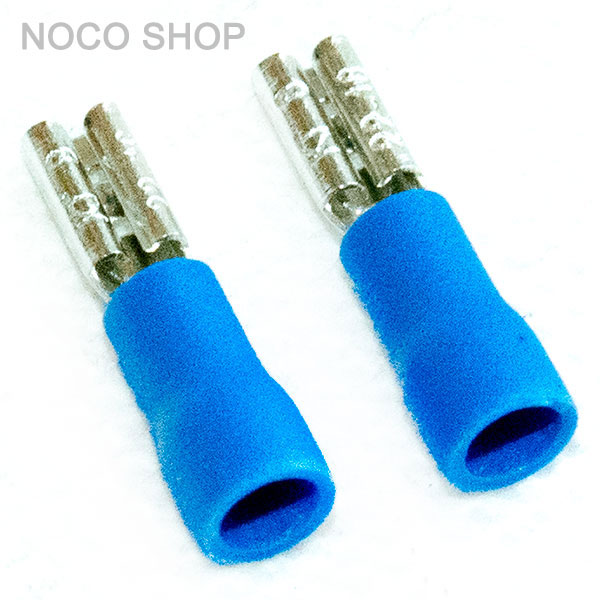

Spade Terminals For Switch

Typical application: DC power connector for electric vehicle, sending the DC power source to battery pack by inserting the plug (male connector) into the socket (female connector).

We supply also the Y-30 AC Connector (110V AC / 220V AC).

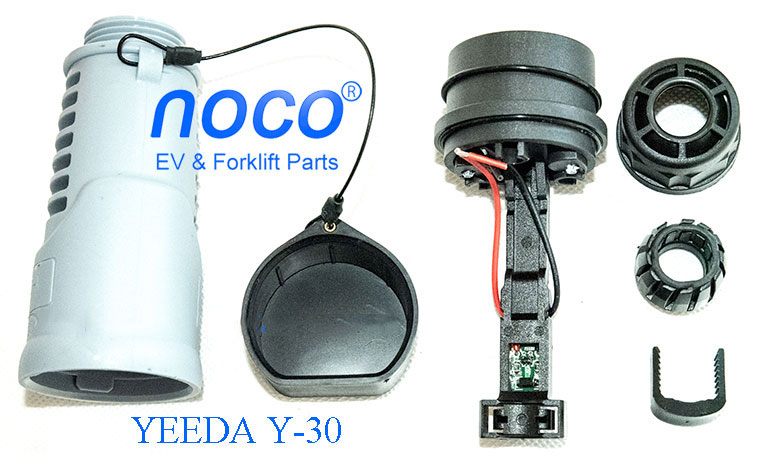

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC / DC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 2-Pole DC connector with internal switch:

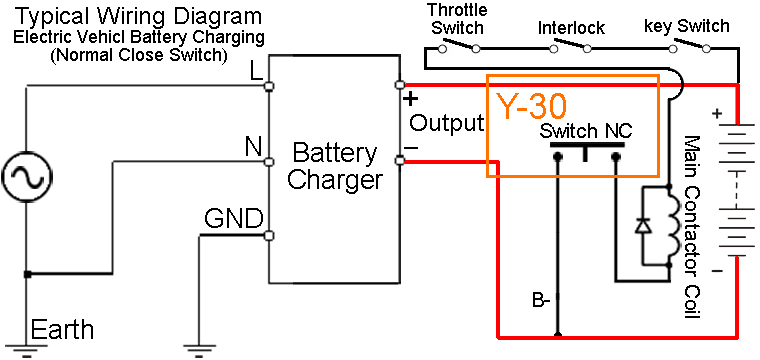

  • 2-Pole: L and N (L used as B+, N used as B-, the third pole GND is not used). Wiring recommendation: the terminal "L" should be connected to the DC power positive "B+", the terminal "N" should be connected to the DC power negative "B-", and "GND" should be left unconnected.
  • Internal switch: NC type (normal close)
• Nominal Current Rating: 16A
• Working Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, and 72V DC
• IP54 Waterproof Design

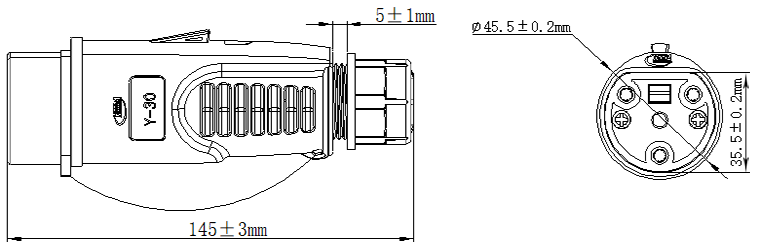

Dimensions:

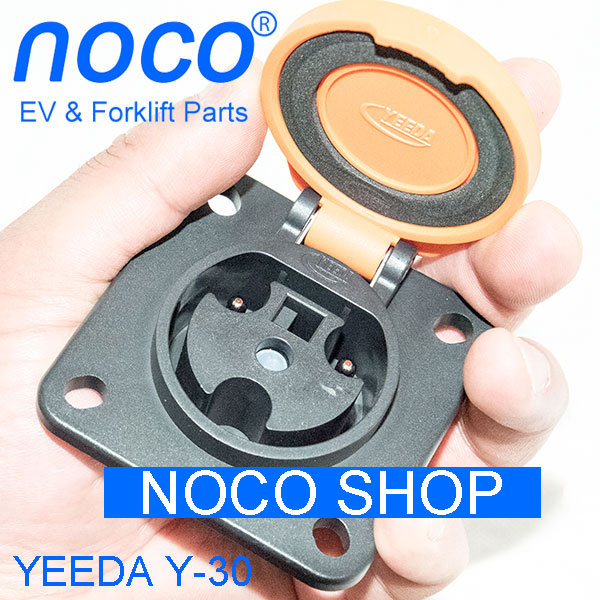

Equipped with waterproof cover protection & internal switch, the DC power connectors YEEDA Y-30 (plug + Socket) are applied as 12V - 72V DC input for electric vehicle battery chargers. Typical application: DC power connector for electric vehicle, sending the DC power source to battery pack by inserting the plug (male connector) into the socket (female connector).

We supply also the Y-30 AC Connector (110V AC / 220V AC).

Y-30 waterproof connectors are designed for electric vehicle battery charging purpose, is widely used as golf cart and ATV onboard / portable battery charger AC / DC input connectors. Its internal switch design and "power on" LED indicator offer higher operation safety, and make the DC power charging application easier to install and connect / disconnect. For more details, please see the datasheet of YEEDA connector Y-30 (PDF Format).

Key features

• Brand: YEEDA
• Model: Y-30 power connector, plug & socket
• 2-Pole DC connector with internal switch:
  • 2-Pole: L and N (L used as B+, N used as B-, the third pole GND is not used). Wiring recommendation: the terminal "L" should be connected to the DC power positive "B+", the terminal "N" should be connected to the DC power negative "B-", and "GND" should be left unconnected.
  • Internal switch: NC type (normal close)
• Nominal Current Rating: 16A
• Working Voltage: 12V DC, 24V DC, 36V DC, 48V DC, 60V DC, and 72V DC
• IP54 Waterproof Design

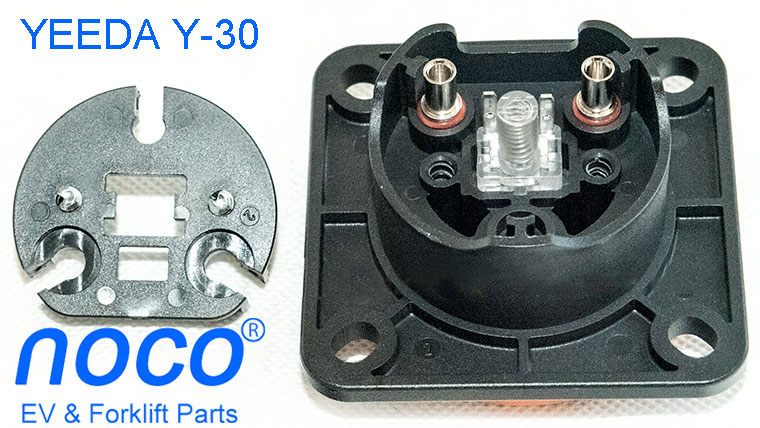

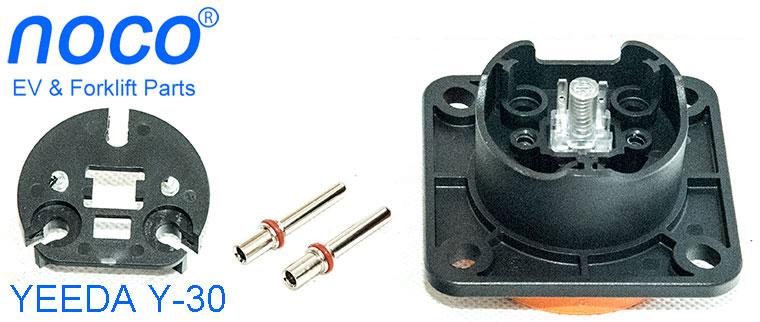

Spade terminals for internal switch:

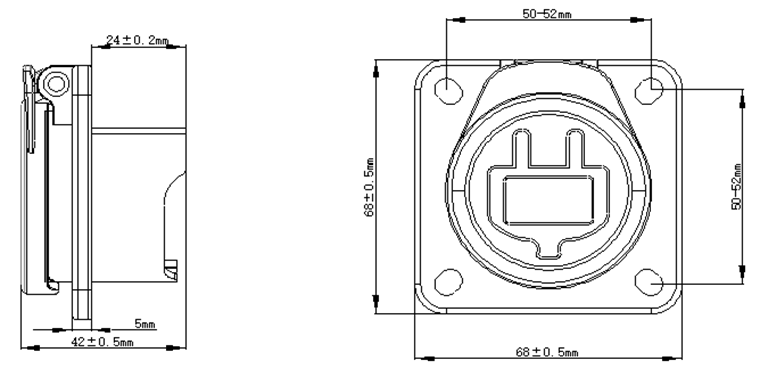

Dimensions:
