E-Z-GO Inductive Throttle Sensor

Part number 25854-G01, part of E-Z-GO TXT golf carts 1994-up

Typical Application 73333-G05

Inductive sensing technology offers a robust solution that seamlessly integrates with existing motor speed control system. By using the non-contact inductive detecting technology, Inductive Throttle Sensor EXC12 is applied as speed signal device to E-Z-GO golf cart 36V or 48V motor speed controllers, can be used with 4-pin or 5-pin electric speed controllers and on vehicles with the DCS (Drive Control System) and PDS (Precision Drive System) controllers.

Specification:

• Model: EXC12
• E-Z-GO part number: 25854-G01
• Fits to E-Z-GO golf carts:
  • Electric TXT 1994-current
  • Medalist
  • 875 / 881
  • ST Sport, ST Sport II, ST Express
  • Clays Car
  • 4/6-Passenger Shuttle, Shuttle 950
  • Titan
  • Workhorse-MPT (Multi-Purpose Truck) 800/1000
  • Etc.
• Net weight: 0.13 kg

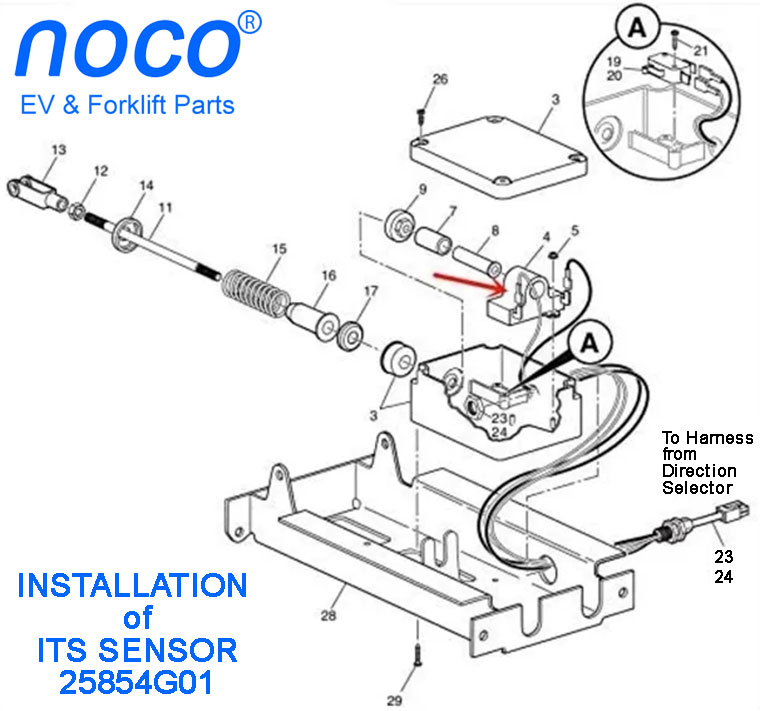

Installation diagram:

E-Z-GO Inductive Throttle Sensor

Part number 25854-G01, part of E-Z-GO TXT golf carts 1994-up

Inductive sensing technology offers a robust solution that seamlessly integrates with existing motor speed control system. By using the non-contact inductive detecting technology, Inductive Throttle Sensor EXC12 is applied as speed signal device to E-Z-GO golf cart 36V or 48V motor speed controllers, can be used with 4-pin or 5-pin electric speed controllers and on vehicles with the DCS (Drive Control System) and PDS (Precision Drive System) controllers.

Typical Application 73333-G05

Specification:

• Model: EXC12
• E-Z-GO part number: 25854-G01
• Fits to E-Z-GO golf carts:
  • Electric TXT 1994-current
  • Medalist
  • 875 / 881
  • ST Sport, ST Sport II, ST Express
  • Clays Car
  • 4/6-Passenger Shuttle, Shuttle 950
  • Titan
  • Workhorse-MPT (Multi-Purpose Truck) 800/1000
  • Etc.
• Net weight: 0.13 kg

Installation diagram:
