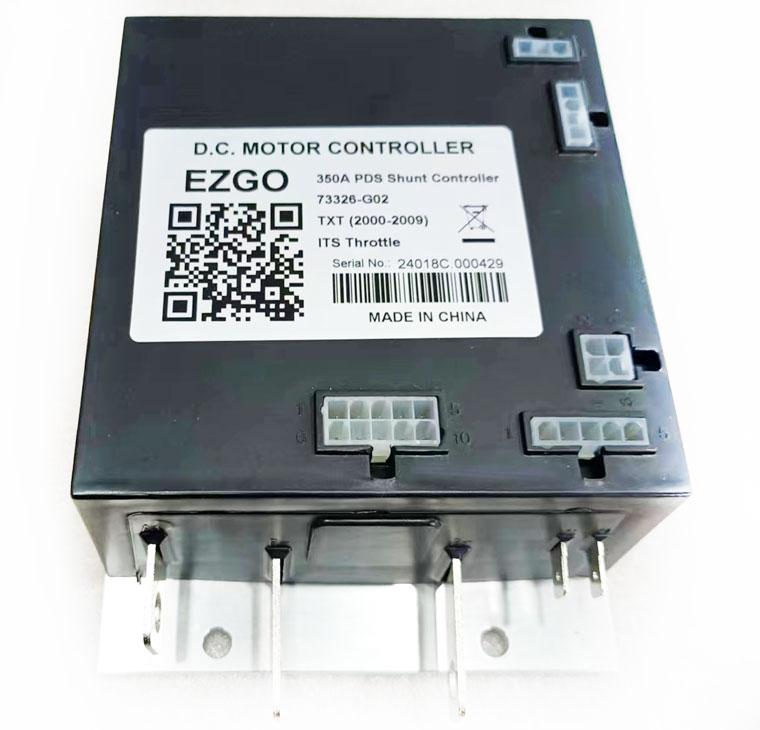

EZGO PDS Shunt Controller 73326-G02 (73326G02)

Fits TXT (year 2000 - 2009), working with ITS throttle

Overview:

73226-G02 is an EZGO PDS shunt controller. PDS (Precision Drive System) is a unique traction motor control unit applied by EZGO starting in 2000. A PDS is composed by a SepEx DC motor that serves as the traction drive and creates the capability of regenerative braking, and a controller. 73226-G02 is the PDS controller fitting EZGO TXT (year 2000 - 2009).

Key Features

• EZGO Part Number: 73326-G02 (73326G02, replacing CURTIS 1206MX 350A controller)
• Compatible with:
  • EZGO 73326-G03 (73326G03)
  • EZGO 73326-G04 (73326G04)
  • EZGO 73326-G05 (73326G05)
  • EZGO 73326-G06 (73326G06)
  • EZGO 73326-G07 (73326G07)
  • FOREPAR 6-230P
  • EZGO 609083
  • CURTIS 1206MX-1115
  • CURTIS 1206MX-4301
• Norminal Battery Voltage (Volts): 36V
• Current Rating: 350A
• Throttle Type: ITS
• Fits EZGO TXT (year 2000 - 2009)

Typical application: EZGO electric TXT (year 2000 - 2009) golf cart, with motor DE2-4007 / ZQS36-3.0C-T and speed sensor 73327G01.
