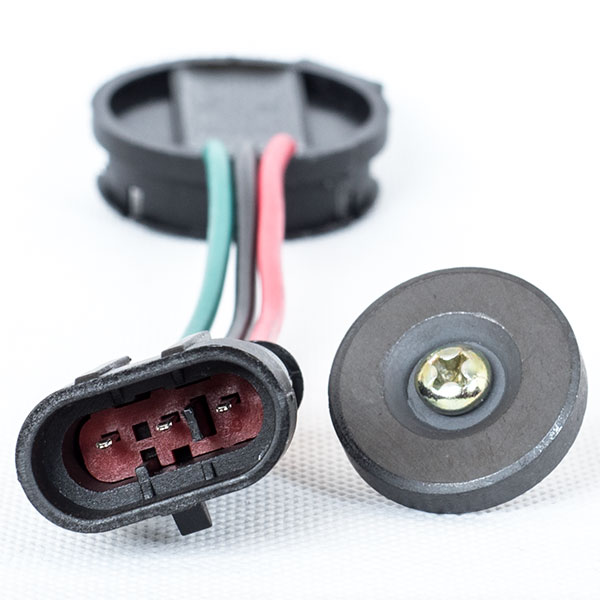

Hall Effect Speed Sensor

Electric motor speed encoder, with magnet

Description:

Hall effect sensor can be used to sense the speed and position of a rotating motor. Same as an encoder for digital signal analyzing device, the speed sensor turns the motor shaft rotation into pulse signal, feeding to a motor speed controller for monitoring the motor's speed.

The DC motor speed sensors are based on using the Hall element to sense the change influx in the air gap between a magnet and a notch in a rotating shaft. The main advantage of Hall effect speed sensors is that they are a non-contact sensor that is not limited by mechanical wear. The circuitry inside the sensor typically consists of a pulse counter to provide an output signal that can be directly connected to the motor controller.

Specifications:

• Model: NOCO-SS-1020
• Used as speed encoder of XQ series DC series winding motors or DC seperately excited motors (also widely used in other motor models). Typical applicatons:
  • DC series winding motor:
    • XQ-3.8-4
    • XQ-3-4
    • XQ-5FC
    • XQ-5.3A
  • DC SepEx motor:
    • XQ-3.8
    • XQ-5.3
    • XQ-3-4T
• Operating temperature range: -50°C to +125°C
• Connector: 3-Pin waterproof type (other connector type is available)
• Wiring (example: DC SepEx Motor Controller Assemblage, Model: 1268-5403):
  • Red wire: power +
  • Black: power -
  • Green: speed signal
• Installation hole size: Ø32 mm
• Installation position: rear end of motor (see example: XQ-3-4 DC Series motor or XQ-3-4T DC SepEx motor. Please pay attention to the difference of connectors.)

Description:

Hall effect sensor can be used to sense the speed and position of a rotating motor. Same as an encoder for digital signal analyzing device, the speed sensor turns the motor shaft rotation into pulse signal, feeding to a motor speed controller for monitoring the motor's speed.

The DC motor speed sensors are based on using the Hall element to sense the change influx in the air gap between a magnet and a notch in a rotating shaft. The main advantage of Hall effect speed sensors is that they are a non-contact sensor that is not limited by mechanical wear. The circuitry inside the sensor typically consists of a pulse counter to provide an output signal that can be directly connected to the motor controller.

Specifications:

• Model: NOCO-SS-1020
• Used as speed encoder of XQ series DC series winding motors or DC seperately excited motors (also widely used in other motor models). Typical applicatons:
  • DC series winding motor:
    • XQ-3.8-4
    • XQ-3-4
    • XQ-5FC
    • XQ-5.3A
  • DC SepEx motor:
    • XQ-3.8
    • XQ-5.3
    • XQ-3-4T
• Operating temperature range: -50°C to +125°C
• Connector: 3-Pin waterproof type (other connector type is available)
• Wiring (example: DC SepEx Motor Controller Assemblage, Model: 1268-5403):
  • Red wire: power +
  • Black: power -
  • Green: speed signal
• Installation hole size: Ø32 mm
• Installation position: rear end of motor (see example: XQ-3-4 DC Series motor or XQ-3-4T DC SepEx motor. Please pay attention to the difference of connectors.)
