DC Series Motor
Model: XQ-3-4
619.00 - 639.00 USD
1 / 4

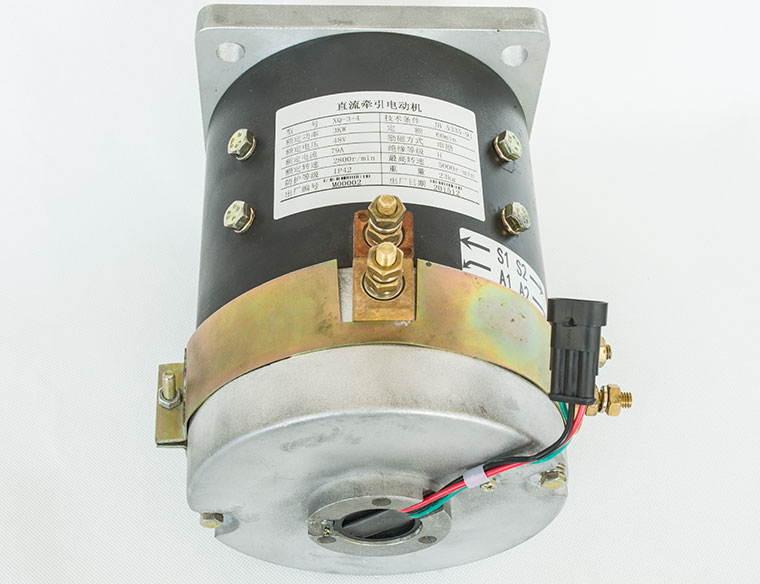

48V 3.0kW DC Series Motor XQ-3-4 Eagle Marshell Fairplay Golf Cart Traction Motor
2 / 4
48V 3.0kW DC Series Motor XQ-3-4 Eagle Marshell Fairplay Golf Cart Traction Motor
3 / 4
48V 3.0kW DC Series Motor XQ-3-4 Eagle Marshell Fairplay Golf Cart Traction Motor
4 / 4
48V 3.0kW DC Series Motor XQ-3-4 Eagle Marshell Fairplay Golf Cart Traction Motor
Flange option
Secured Payment of PayPal, VISA, MASTERCARD

48V 3kW DC Series Winding Motor

Golf cart traction motor, with speed sensor

Diagram of 48V 3kW DC Series Winding Motor XQ-3-4

Specifications:

  • Nominal power rate: 3 kW
  • Operating voltage: 48V
  • Optional square flange
  • Spline:
    • With flange: 18 teeth
    • Without flange: 19 teeth
  • Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor, for more details, please see the product diagram in PDF format)
  • Insulation: class H
  • Dimensions (L×Ø): 272 (Max.) × 174 mm
  • Weight: 21.4 kg
  • Package environmental rating: IP20

Notice: this DC Series motor XQ-3-4 is the product of New United Group. New United Group is the co-working partner of Bombardier Industrial in China, a major manufacturer of tracting electric motor in the world.

Notice: XQ-3-4 can work with CURTIS 1204M-5203 Series Motor Controller. We can also provide the controller assemblage of 1204M-5203.

Shaft End of 48V 3kW DC Series Winding Motor XQ-3-4
XQ-3-4 (without square flange, 19 teeth spline)

For more application details (spline, transmission, etc.), please contact us ...

DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor
Model: XQ-3-4
619.00 - 639.00 USD
Flange option
Secured Payment of PayPal, VISA, MASTERCARD
Free Int'l Expedited Shipping
12-Month warranty
Product Diagram (PDF format) PDF LOGO - https://www.noco-evco.com/

48V 3kW DC Series Winding Motor

Golf cart traction motor, with speed sensor

Diagram of 48V 3kW DC Series Winding Motor XQ-3-4

Specifications:

  • Nominal power rate: 3 kW
  • Operating voltage: 48V
  • Optional square flange
  • Spline:
    • With flange: 18 teeth
    • Without flange: 19 teeth
  • Speed sensor mating connector is included (different connector types are available. By default, an AMP waterproof 3-Pin connector is coming with the motor, for more details, please see the product diagram in PDF format)
  • Insulation: class H
  • Dimensions (L×Ø): 272 (Max.) × 174 mm
  • Weight: 21.4 kg
  • Package environmental rating: IP20
DC Series Motor XQ-3-4, 48V / 3kW, Other Voltage Options Available DC Series Motor XQ-3-4, 48V / 3kW, Other Voltage Options Available
DC Series Motor XQ-3-4, 48V / 3kW, Other Voltage Options Available DC Series Motor XQ-3-4, 48V / 3kW, Other Voltage Options Available

Notice: this DC Series motor XQ-3-4 is the product of New United Group. New United Group is the co-working partner of Bombardier Industrial in China, a major manufacturer of tracting electric motor in the world.

Notice: XQ-3-4 can work with CURTIS 1204M-5203 Series Motor Controller. We can also provide the controller assemblage of 1204M-5203.

Shaft End of 48V 3kW DC Series Winding Motor XQ-3-4
XQ-3-4 (without square flange, 19 teeth spline)

For more application details (spline, transmission, etc.), please contact us ...

DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
DC Series Motor XQ-3-4, 48V / 3kW
