SW822 Type Motor Reversing DC Contactor

2xDPST, closed contacts housing, with 6.3mm (1/4") Spade Connector Kit

6.3mm (1/4") Spade Connector Kit

Not origninal Albright / CURTIS product

Overview

The SW822 has been designed for Motor Reversing applications with direct current loads, particularly motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW822 is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

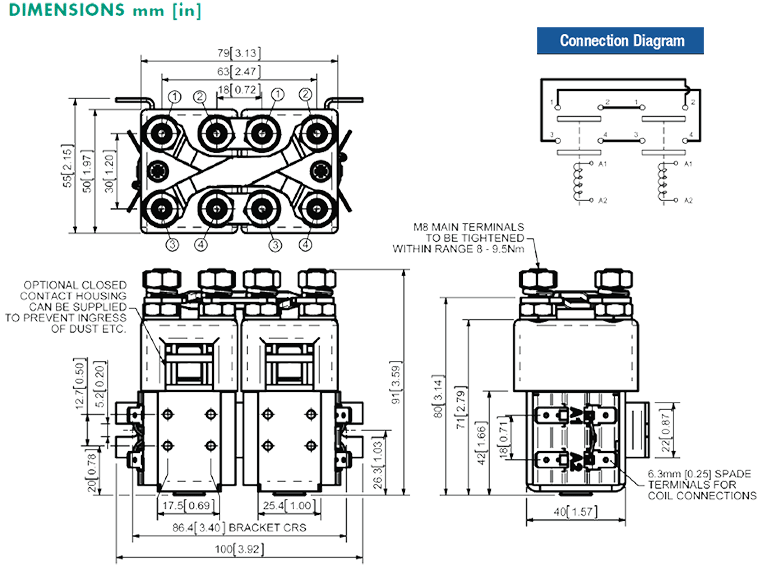

The SW822 features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW822 has M8 stud main terminals and 6.3 mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.

Specifications:

• Model: SW822 (2xDPST)
• Voltage options (Volts): 12V, 24V, 36V, 48V or 72V
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature: –40°C to +60°C
• Net weight: 0.92 kg

Click to download the Albright DC Contactor Model List (PDF format).
