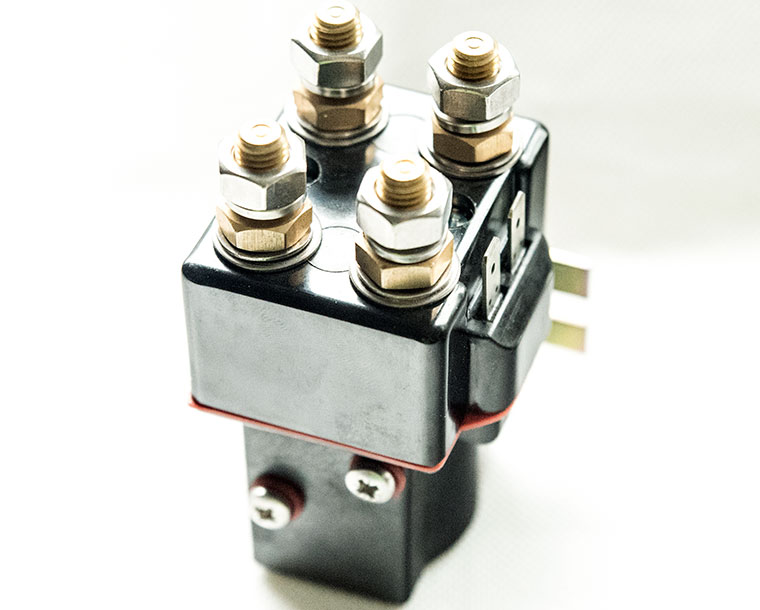

Notice: Albright SW82 (Typical Model: SW82-157P, 48V) DC contactors are DOUBLE POLE SINGLE COIL SOLENOID, widely applied in electric pump / vehicle systems.

Click to download the Albright DC Contactor Model List (PDF format).

Overview

The SW82 type of contactors has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW82 is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance)
• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance)

The SW82 features double pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The contactors are compact in size and are fully serviceable with a full range of spare parts available. The SW82 has M8 stud main terminals and 6.3 mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
