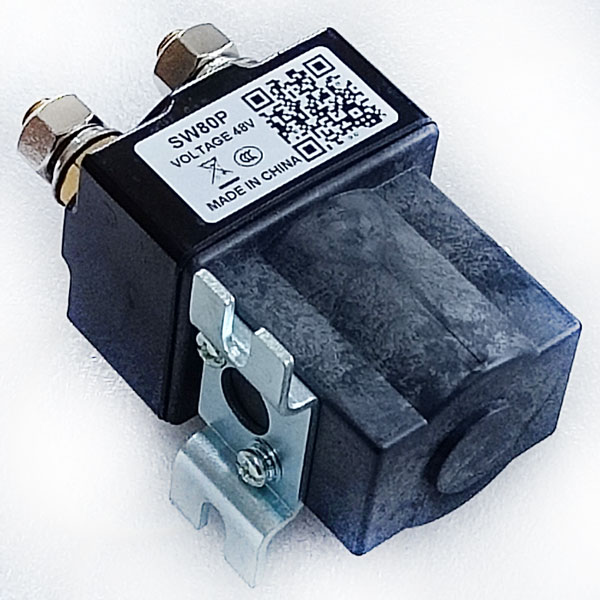

IP66 Sealed Type DC Contactor / Solenoid

125A SW80P, coil voltage options: 12V, 24V, 36V, 48V

Connection Diagram

Same as the original SW80P, this SW80P type DC contactor is a miniature SPST (single pole single throw), free standing, compact contactor which is sealed to IP66.

Specifications:

• Model: SW80P (compatible with Albright SW80P, IP66 DC power switching solenoid)
• Control coil working voltage:
  • 12V (alternative replacement of SW80P-374, SW80P-390, SW80P-702)
  • 24V (alternative replacement of SW80P-357, SW80P-747)
  • 36V (alternative replacement of SW80P-353, SW80P-754)
  • 48V (alternative replacement of SW80P-415, SW80P-416, SW80P-522, SW80P-727)
• Rated working current: 100A (interrupted load); 125A (uninterrupted load)
• Ingress protection: IP66
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature: –40°C to +60°C
• Net weight: 0.39 kg

The SW80P is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, the SW80P is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.

The SW80P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80P incorporates an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3 mm spade coil connections. It can be mounted via mounting brackets (supplied fitted).

Dimensions:
