DC Power Switching Solenoid

SPDT NONC (Single Pole Double Throw, One Normal Open + One Normal Close) DC Contactor

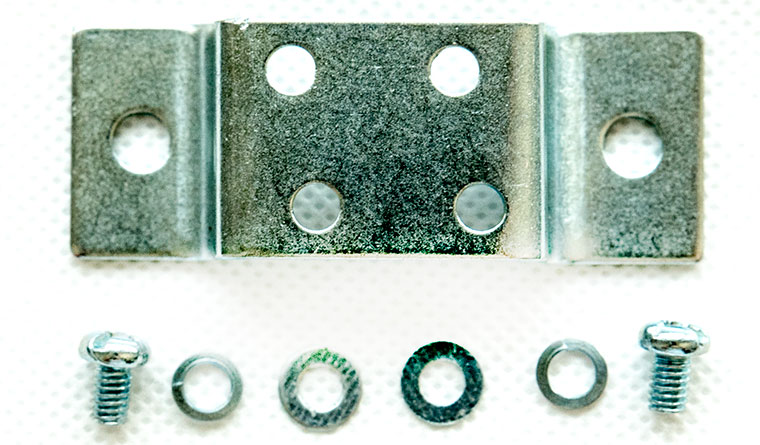

Top Hat Shape Bracket (optional)

"L" Shape Bracket (optional)

Overview

The QCC25C-100A/11 DC contactors are SPDT (single pole single throw; one "normal open" and one "normal close") DC power changeover switches, designed for direct current loads, particularly for motors on electric vehicles, like electric forklift, electric pallet stacker, tow tractor, etc. QCC25C-100A/11 has main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

QCC25C-100A/11 DC contactors can also be used in different DC power systems:

• DC power supply changeover
• DC motor driver selection
• Telecommunication system DC power source backup
• DC battery charging selector

Specifications:

• Model: QCC25C-100A/11
• Contactor type: SPDT (single pole double throw; one normal open, one normal close)
• Coil voltage options (Volts): 12V, 24V, 36V, 48V or 72V
• Magnetic blowout:
  • 12V: no
  • 24V: no
  • 36V: no
  • 48V: yes (if don't want the blowout function, please contact us)
  • 72V: yes (if don't want the blowout function, please contact us)
• Mounting bracket (need to buy separately):
  • Top hat shape
  • L shape
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Ambient temperature：-25~+40°C
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7~1.1Ue
• Net weight: 0.43 kg

Wiring Diagram

Other features include:

• Compatible with Albright SPDT SW81 contactors
• Main rated load current of contact circuit (amps):
  • 100A with interrupted load
  • 125A with uninterrupted load
• Main contact voltage: ≤ 96VDC (no matter the coil voltage)
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact: not above 60mV

We supply other SPDT contactors:

• 200A SPDT contactor QCC25C-200A/11
• 200A SPDT contactor with long contact plate QCC25C-200A/11L
• 400A SPDT contactor QCC25C-400A/11
• 400A SPDT contactor with long contact plate QCC25C-400A/11L
• Albright 200A SPDT contactor SW181B-245T (Zapi Model: B4SW24)
• Albright 400A SPDT contactor SW215-16 (48V / 400A, LINDE Part Number: 7915692519) and SW215-17 (80V / 400A, LINDE Part Number: 7915692516)
