We supply also the 100A version starter DC contactor SPST QCC15-100A.

Overview

The QCC15-200A DC contactors are designed for DC power disconnection.

With its magnetic blowout structure, QCC15 series DC contactor offers high load start capability (maximum 4x rated current for 5ms), typically used as engine starter motor solenoid.

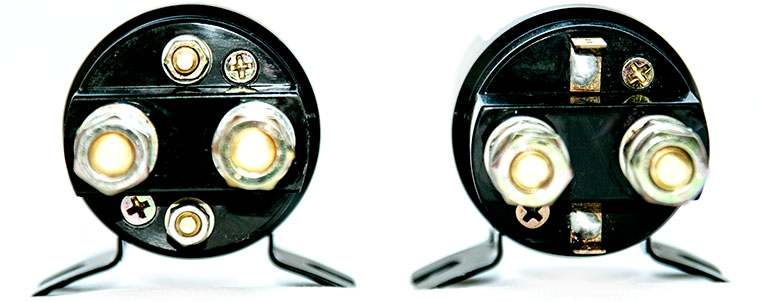

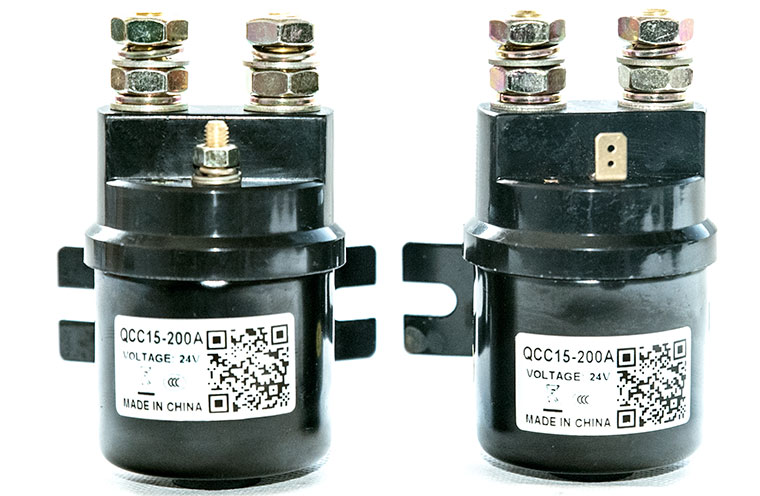

Two control coil terminal types are available:

• Bolt type: 2 x 5mm bolts
• Spade terminal type: 2 x 6.3mm spade crimp terminals

Specifications:

• Model: QCC15-200A
• Voltage Options (Volts): 12V, 24V, 36V, 48V
• Main contact voltage:
  • Inductive load: 48V DC
  • Resistive load: 60V DC
• Max. action (on / off) time: 40 ms
• Cold action voltage:
  • Action ON: ≥ 60%
  • Action OFF: ≥ 5-30%
• Net weight: 0.55 kg (QCC15-200A)

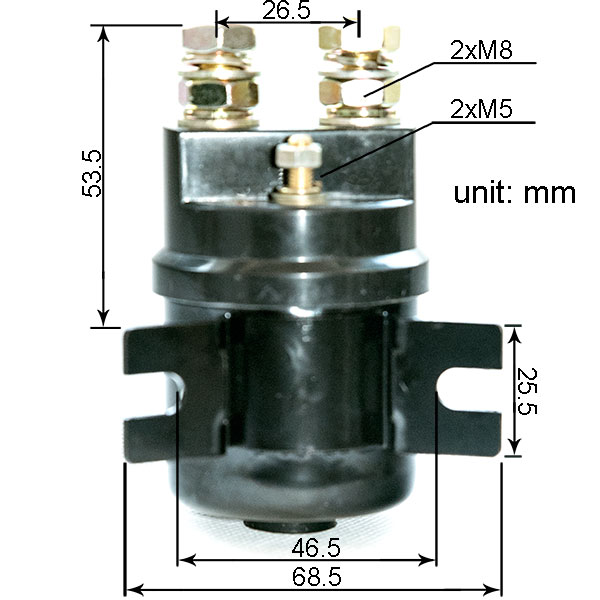

Dimensions (there is no difference on outline dimensions for spade terminal type and bolt terminal type):

Applications:

• DC motor (pump, electric vehicle, marine, etc.)
• Telecommunication
• DC power supply
• Photoelectric power system
