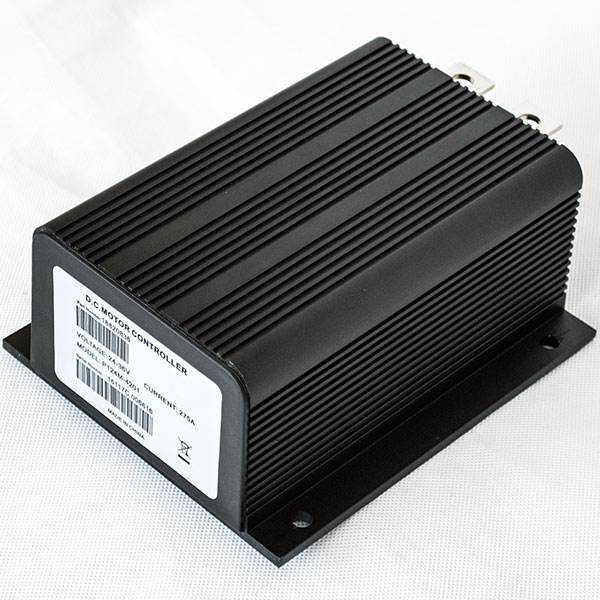

Programmable DC Series Winding Motor Controller

Model P124M-4201, 24-36V, 275A

The controller P124M-4201 provides an economic DC series winding motor speed controlling solution.

Made by a Chinese manufacturer, P124M-4201 is the replacement of CURTIS 1204M-4201, with the same functions and dimensions.

We supply also the P124M-4201 controller assemblage with throttle (foot pedal), please contact us for more details on price and delivery delay.

Overview:

P124M-4201 programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. P124M-4201 controllers are fully compatible with 1204M-4201, the updated version of the popular 1205 / 1205M controllers, with the added functionality of being programmable—via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

P124M-4201 controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

Wiring Diagram:

By default, the J5 terminal of controller P124M-4201 is not activated. The controller wiring is same to the old 1205M controllers without J5 terminal.


Click here to download the diagram (PDF format)

If you want to activate the J5 terminal for using the Rev Input / Main Driver functions, please see the page 7 and 8 of 1204M / 1205M controller manual (PDF format).

Key Features

• Controller Model: P124M-4201 (Replacement of CURTIS 1204M-4201, 1204-001 and other old 24V or 36V 1204-xxx controllers)
• Norminal Battery Voltage (Volts): 24V or 36V
• 2 Minute Current Rating (amps): 275
• 5 Minute Current Rating (amps): 200
• 1 Hour Current Rating (amps): 125
• Plug Braking (A2 Busbar): Yes
• PWM operating frequency: 15.6 kHz
• Electrical isolation to heatsink (min.): 500 VAC
• KSI input current (no contactors engaged):
  • 70 mA without programmer
  • 130 mA with programmer
• Logic input current: < 2 mA
• Status LED output current (max.): < 2 mA
• Ten throttle types can be used with these controllers:
  • Type 0: 2-wire potentiometer, 0–5kΩ
  • Type 1: 2-wire potentiometer, 5kΩ–0
  • Type 2: single-ended 0–5V input
  • Type 3: 2-wire potentiometer, 4.6kΩ–0
  • Type 4: 2-wire potentiometer, 5.5kΩ–0
  • Type 5: 2-wire potentiometer, 1kΩ–0
  • Type 6: ITS input
  • Type 7: single-ended 6.3–10.6 V input
  • Type 8: single-ended 6–12 V input
  • Type 9: single-ended 3-wire potentiometer, 0–5kΩ
• Operating ambient temperature range: -40°C to 50°C
• Storage ambient temperature range: -40°C to 85°C
• Dimensions: L173xW146xH77 mm
• Net Weight: 2.3 kg
• Package environmental rating: ISTA 2A; electronics sealed to IP54
• Regulatory compliance: EN 12895 and EN 61000

Features include:

• High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
• Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
• Compatible with either a two-wire potentiometer or a voltage throttle.
• Throttle fault protection circuitry disables controller if throttle wires become open.
• High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
• Plug braking diode internal to controller.
• Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
• Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
• Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
• Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

As a controller with "24V or 36V Working Voltage" option, P124M-4201 is ideal for replacing an old CURTIS 1204 controller (1204-004, 1204-036 or other 1204-xxx controllers). With the original controller model number provided by the buyer, the seller could identify more detailed information like "voltage", "current" and "throttle type". Then the controller will be programmed to the same setting as the original one of the buyer.
