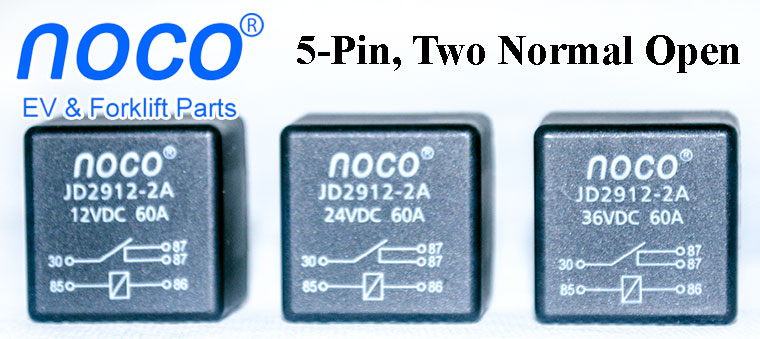

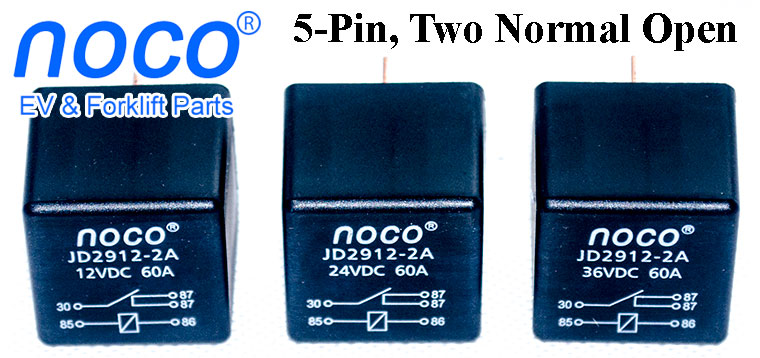

JD2912, 5-Pin DC Relay, Two Normal Open Contacts

Working voltage: 6V / 12V (14V) / 24V (28V) / 36V

Wiring Diagram

Contacts' Layout

Derived and developed from Bosch type Automotive SPDT DC Relay, JD2912 relays are widely used in various DC current switching circuits. Main applications include:

• Automotive light & horn
• Engine starter
• Telecommunication remote DC power station
• Photovoltaic energy grid
• Electric vehicle & marine vessel control
• Etc.

KEY FEATURES

• Model: JD2912-2A (two normal open contacts)
• Nominal Current Rating: 60A (Intermittent Current Rating:)
  • 1% Duty: 60A
  • 2% Duty: 52A
  • 3% Duty: 48A
  • 5% Duty: 45A
  • 10% Duty: 35A
  • 20% Duty: 30A
  • 30% Duty: 22A
  • 50% Duty: 12A
  • 100% Duty: 6A
• Working Voltage: 6V / 12V / 24V / 36V (voltage range ± 20%)
• Coil Consumption: 1.8W
• Contact Resistance: ≤ 50mΩ
• Isolation Resistance: ≥ 1.0MΩ
• Electric Life: 100,000 times
• Mechanic Life: 10,000,000 times
• Electrical Isolation:
  • Between open contacts: 500VAC
  • Between coil contacts: 500VAC
• Connection:
  • Wires with 1/4" (6.3mm) Spade Contactors
  • Installation socket
• Working Temperature: -25°C – +100°C
• Product Weight: 32.5g

Dimensions (unit: mm)

There are variable models of JD2912 DC relay. We supply also:

• Multiple-option JD2912
• JD2912-1Z-xx/10, 12-48V / 10A (Continuous Load 5A)
• 80A Large Contact JD2912 (5-Pin, One Normal Open / One Normal Close)
• JD2912-1A, 12-72V / 40A (One Normal Open)
• JD2912-1A, 6V / 40A (One Normal Open)

Waterproof DC relay JD2912-S ("S" means "sealed") is also available:

• 40A JD2912-S
• 60A JD2912-S

Derived and developed from Bosch type Automotive SPDT DC Relay, JD2912 relays are widely used in various DC current switching circuits. Main applications include:

• Automotive light & horn
• Engine starter
• Telecommunication remote DC power station
• Photovoltaic energy grid
• Electric vehicle & marine vessel control
• Etc.

Wiring Diagram

Contacts' Layout

KEY FEATURES

• Model: JD2912-2A (two normal open contacts)
• Nominal Current Rating: 60A (Intermittent Current Rating:)
  • 1% Duty: 60A
  • 2% Duty: 52A
  • 3% Duty: 48A
  • 5% Duty: 45A
  • 10% Duty: 35A
  • 20% Duty: 30A
  • 30% Duty: 22A
  • 50% Duty: 12A
  • 100% Duty: 6A
• Working Voltage: 6V / 12V / 24V / 36V (voltage range ± 20%)
• Coil Consumption: 1.8W
• Contact Resistance: ≤ 50mΩ
• Isolation Resistance: ≥ 1.0MΩ
• Electric Life: 100,000 times
• Mechanic Life: 10,000,000 times
• Electrical Isolation:
  • Between open contacts: 500VAC
  • Between coil contacts: 500VAC
• Connection:
  • Wires with 1/4" (6.3mm) Spade Contactors
  • Installation socket
• Working Temperature: -25°C – +100°C
• Product Weight: 32.5g

Dimensions (unit: mm)

There are variable models of JD2912 DC relay. We supply also:

• Multiple-option JD2912
• JD2912-1Z-xx/10, 12-48V / 10A (Continuous Load 5A)
• 80A Large Contact JD2912 (5-Pin, One Normal Open / One Normal Close)
• JD2912-1A, 12-72V / 40A (One Normal Open)
• JD2912-1A, 6V / 40A (One Normal Open)

Waterproof DC relay JD2912-S ("S" means "sealed") is also available:

• 40A JD2912-S
• 60A JD2912-S
