Overview

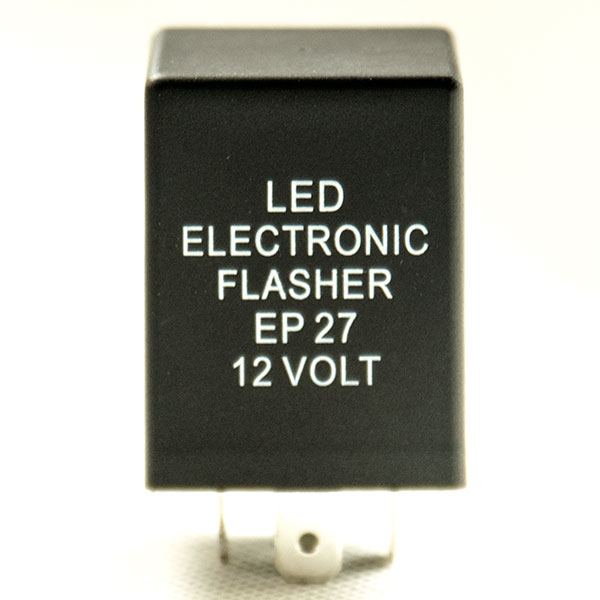

LED compatible, designed as automotive hazard warning & turn signal flasher, EP27 is an electronic turn signal flasher that operates at 12 V. The flasher model EP27 has been wildly used in the automotive industry, working with various brands, Buick, Chevrolet, Chrysler, Dodge, Ford, Jeep, Lincoln, Mazda, Mercury, Oldsmobile, Plymouth and Pontiac vehicles. More and more, EP27 is applied in battery drive vehicles, lift truck, golf cart, mobility vehicles, etc.

• 12 Volt applications
• LED compatible
• Two-coil structure
• 5 terminals (6.3 mm male spade terminal)
• High sensitive & stable electronic timing
• With ticking sound
• Dimensions (LxWxH ): 30.5 x 30.5 x 39 mm

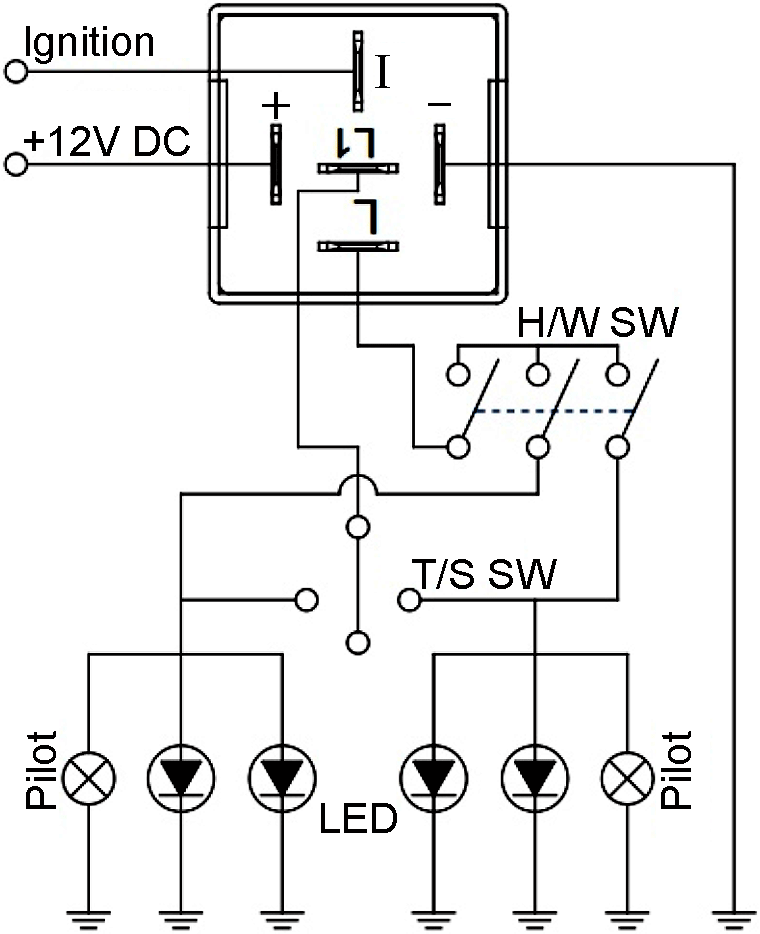

Wiring diagram:

• H/W SW: hazard warning switch
• T/S SW: turn signal switch

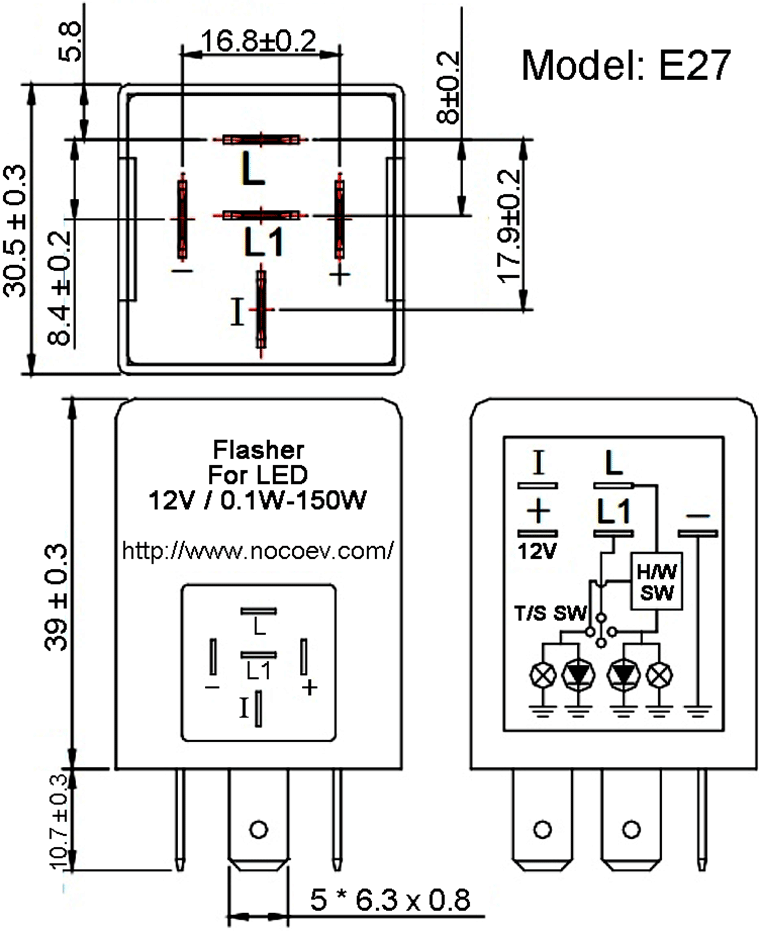

Dimensions (unit: mm):

Specifications:

• Model: EP27 two-coil type automotive hazard warning & turn signal flasher
• Flashing frequency: 85 times per minute
• Coil voltage (Volts): 12V DC
• Working (operation) voltage: 11 - 15V DC
• Test voltage: 13 ± 0.2V DC (test temperature: 20 ± 0.2°C)
• Max load: 150W
• Switching current: 0.02 - 20A
• Ambient temperature: -40 ~ +80°C
• Lift span: 400 working hours
• Net weight: 30 grams
