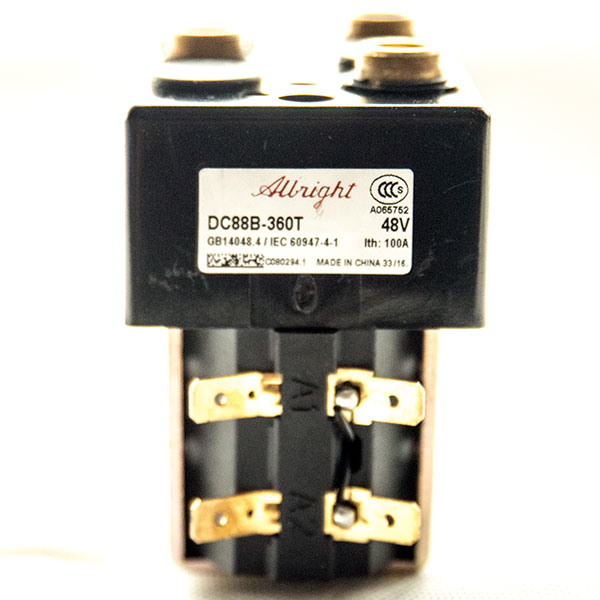

Albright Monoblock DC Contactor DC88B-360T

ZAPI B4DC11, 48V / 100A, forklift / pallet truck / golf cart reversing solenoid

Overview:

The DC88 / DC88B motor reversing type of contactor has been designed for direct current loads, particularly motors as used on electric vehicles such as industrial trucks. The DC88 is a monoblock construction, resulting in a compact design which is compatible with modern electronic control systems. Developed for both interrupted and uninterrupted loads, the DC88 is suitable for switching Resistive, Capacitive and Inductive loads.

Main contact current rating:

• Interrupted load: 100A, opening and closing on load with frequent switching (results in increased contact resistance).
• Uninterrupted load: 100A, no or infrequent load switching requirements (maintains a lower contact resistance).

Bracket (need to buy separately)

For Albright DC88 / DC88B contactors, 6.3 mm (0.25" or 1/4") spade terminals are used for coil connections.

We supply also the installation bracket of DC88 contactor.

There are many different DC88 and DC88B (model with magnetic blowout) sub-models used in different applications. Some of them are regularly in stock, some not. For those models not included in our selling list, please contact us for knowing more details of price and shipping delay.

• DC88-1 24V
• DC88-317T (Zapi B2DC12) 24V
• DC88B-317T (Zapi B2DC11) 24V
• DC88-5 (Zapi B3DC12 / B3DC11) 36V
• DC88-360T (Zapi B4DC11) 48V
• DC88B-360T (Zapi B4DC11) 48V
• DC88B-528 48V
• DC88B-388T 48V

Click to download the Albright DC Contactor Model List (PDF format).

We supply also the DC88 alternative replacement contactors, with multiple voltage options.
