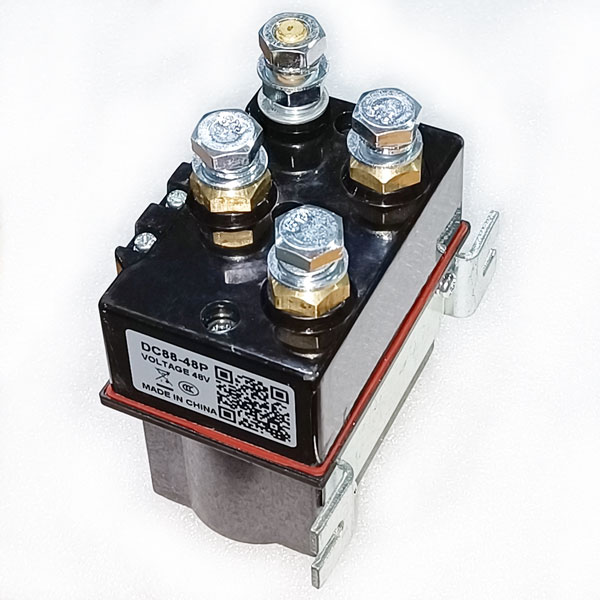

Waterproof Reversing Monoblock DC Contactor

12-48V, rated for 100A, industrial winding system & electric vehicle motor reversing contactor

We supply also Albright DC88 contactors and compatible products:

• 24V DC88-317T
• 48V DC88-360T
• NOCO-DC88, compatible with Albright DC88, multiple voltage options

Fully compatible with Albright DC88P contactors, monoblock DC contactor DC88-xxP features single pole double breaking main contacts, designed for motor reversing.

Sealed to IP66 thus offering greater protection against adverse environments such as water or dust, DC88-xxP is widely applied as motor reversing DC contactor in winding system and in variable battery powered vehicles.

Developed for both interrupted and uninterrupted loads, the DC88-xxP is suitable for switching Resistive, Capacitive and Inductive loads.

• Interrupted current: opening and closing on load with frequent switching (results in increased contact resistance).
• Uninterrupted current: no or infrequent load switching requirements (maintains a lower contact resistance).

The DC88-xxP features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The DC88-xxP main contact circuit, designed for motor reversing, is such that it has a built in failsafe, so that if both coils are energised simultaneously the contact arrangement is open circuits. The DC88-48P has M8 stud main terminals and 3mm screw-in terminals as coil control connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards.

Features:

• Model: DC88-xxP (fully compatible with Albright DC88P series contactors, alternative model ZJWTP100A). Model options available for different coil working voltage ratings:
  • DC88-12P: 12V DC
  • DC88-24P: 24V DC
  • DC88-36P: 36V DC
  • DC88-48P: 48V DC (interchangeable with DC88-1038P)
• Thermal Current Rating (Ith): 100A
• Intermittent Current Rating:
  • 30% Duty 185A
  • 40% Duty 160A
  • 50% Duty 140A
  • 60% Duty 130A
  • 70% Duty 120A
• 3mm screw-in terminals for coil connections (three M3 cold press ring terminals are included)
• Maximum Recommended Contact Voltages (Ue): 48V DC
• Typical Voltage Drop per pole across New Contacts at 100A: 50mV
• Mechanical Durability: > 300,000 Cycles
• Electrical Durability: &gr; 50,000 Cycles
• Coil Power Dissipation:
  • Intermittent: 18 - 22 Watt
  • Continuous: 13 - 18 Watts
• Maximum Pull-In Voltage (Coil at 20°C):
  • Intermittent: 60%Us
  • Continuous: 66%Us
• Drop-Out Voltage Range: 5 - 25%
• Typical Contact Bounce Period: 3ms
• Environmentally Protected IP66
• Closed Contact House
• Net weight: 0.99 kg
• Operating Ambient Temperature: -40°C to 60°C
• Storage Temperature: -40°C to 85°C

There are many different contactor / solenoid models, variable in function as well as dimensions or installation. For those models not included in our selling list, please contact us for knowing more details of price and shipping delay.

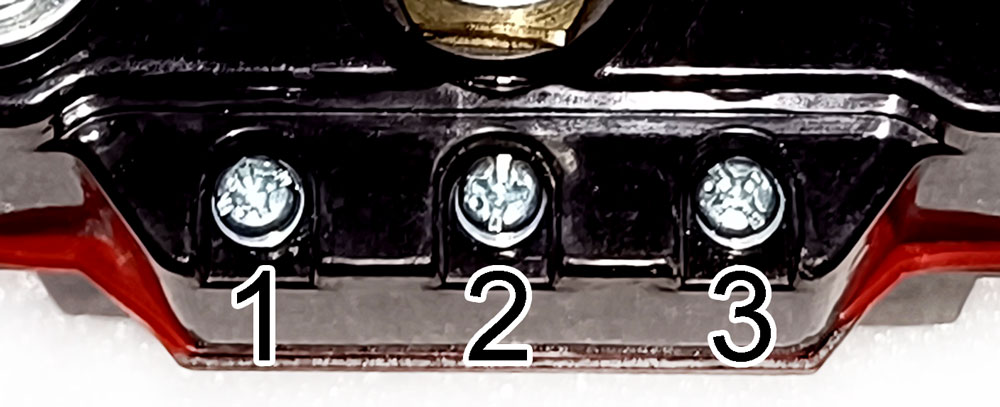

Connection Diagram:

Dimensions:

Time / Current Curve:
