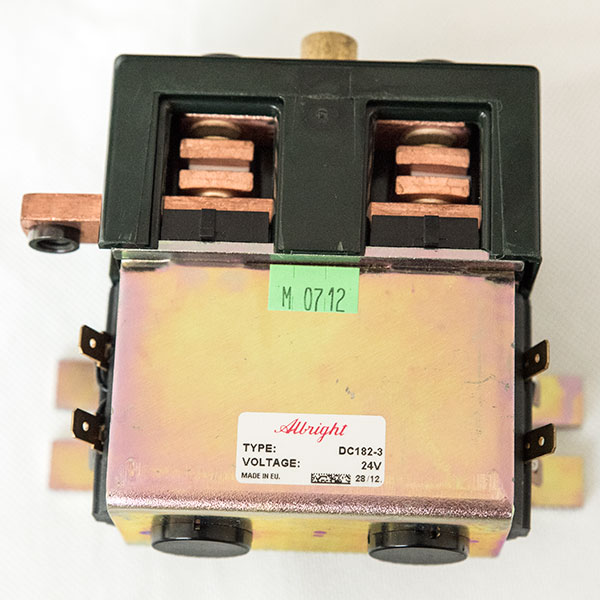

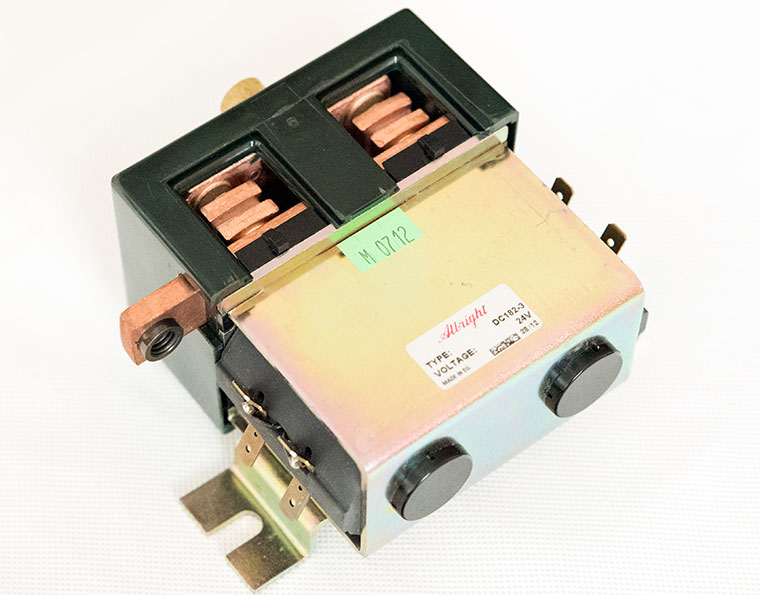

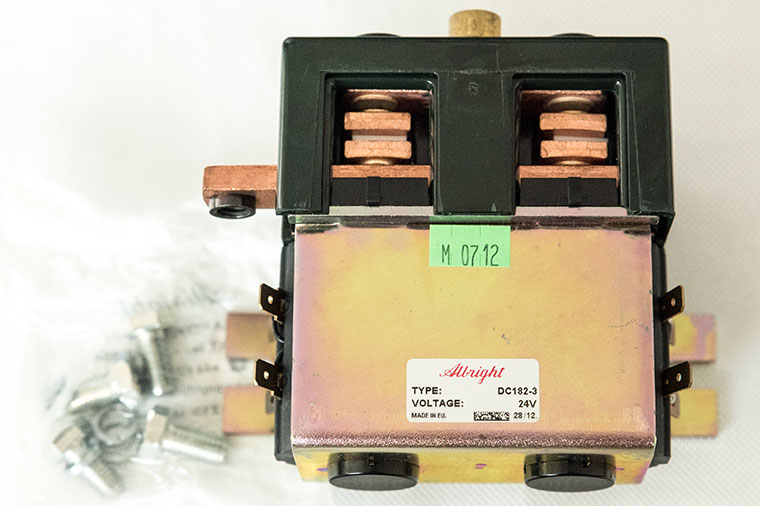

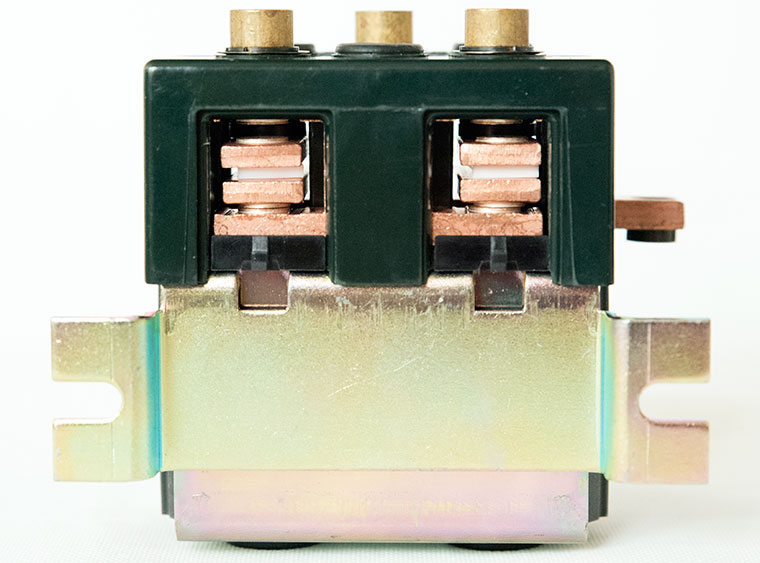

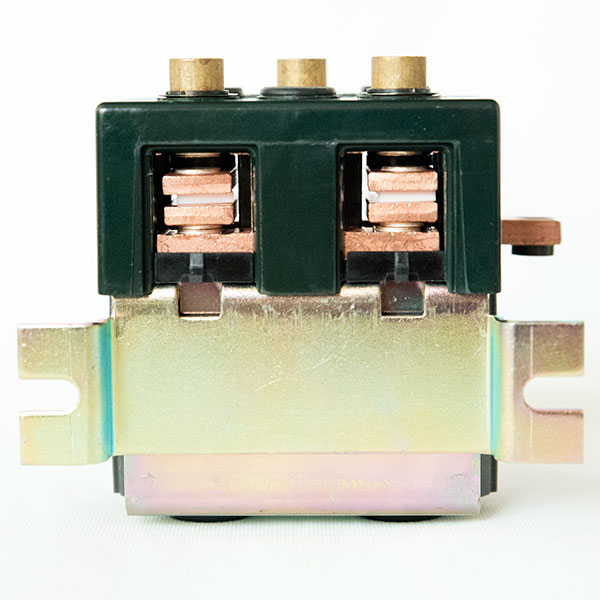

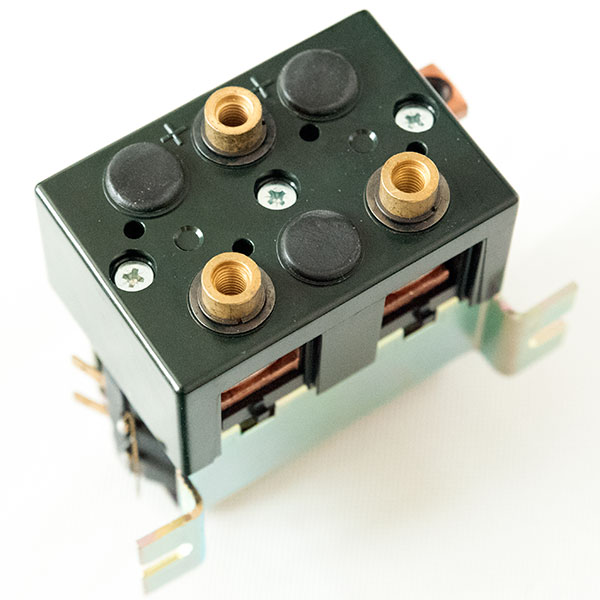

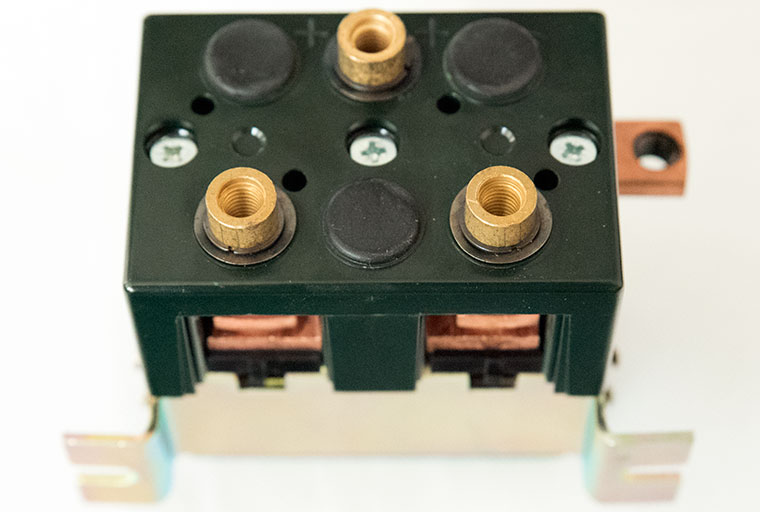

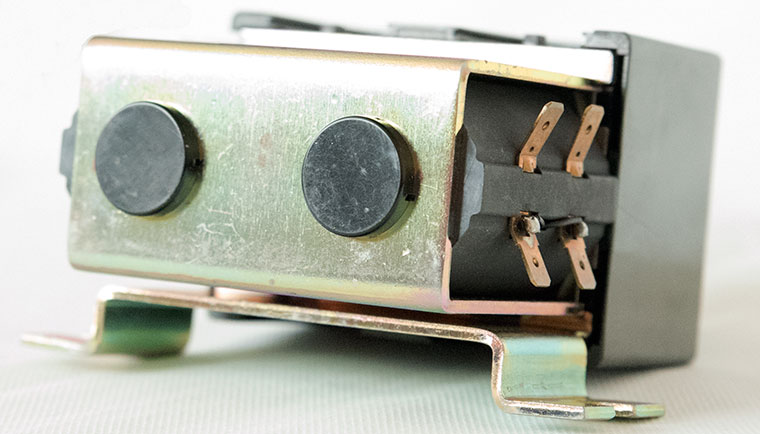

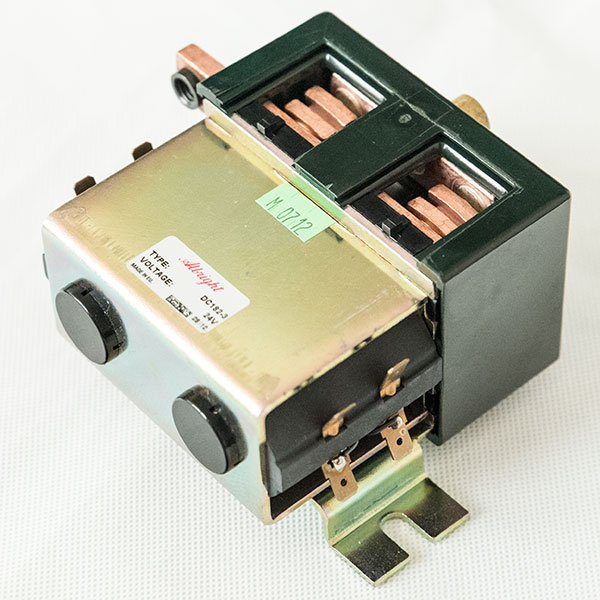

Albright Monoblock contactor DC182-3, Forkift / Golf Cart Solenoid

24V reversing contactor, forward / reverse change switch

Overview:

DC182 has a monoblock structure, resulting in a neat compact design which is compatible with modern electronic control systems. They comprise two single-pole changeover contactors configured in such a way so that all the necessary links for DC motor reversing applications are contained within the compact housing.

The main terminals can be configured in a variety of ways in order to suit the application layout.

Specifications:

• Manufacturer: ALBRIGHT
• Model: DC182-3
• Contactor Type: Monoblock, Single Pole Double Throw (for motor reversing)
• 6.3 mm (0.25" or 1/4") spade terminals for coil connections
• Main Circuit Voltage Rating: 24V DC
• Weight: 1.62 kg

Notice: we supply Albright contactors with multiple voltage / current / function options. If you need a contactor other than DC182-3, please contact us.

Notice: DC182-3 is mainly applied for motor reversing application.

Click to download the Albright DC Contactor Model List (PDF format).

Circuit Diagram:

Dimensions:
