Cable links CURTIS 1229 Motor Controller And Programmer

Works with CURTIS 1307 / 1311 / 1313 handheld programmers and CURTIS 1314 PC station programmer

Description:

This programming cable is designed for diagnosing CURTIS 1229 permanent magnet drive DC motor speed controllers through a CURTIS programmer. It works with different CURTIS 1229 controller models:

• 1229-3101
• 1229-3105
• Other 1229 controllers

Features:

• Easy to use, plug-in 23-Pin connector for CURTIS 1229 controller and 4-Pin connector forCURTIS 1313 handheld programmer or CURTIS 1314 PC station programmer
• Simple wiring, users need only to provide a low power rate DC source (for example 24V / 50W; maximum voltage = rated voltage of controller), no need to connect to other parts than the controller
• Quick and clean, can be used in different places, onboar, in a garage or on an office table

By linking an AMP 23-Pin plug connector to a MOLEX 4-Pin socket connector, the cable provides a connecting interface between the CURTIS programmers (1313-4331 Handheld Programmer or 1314 PC Programming Station) and CURTIS 1229 DC motor controllers.

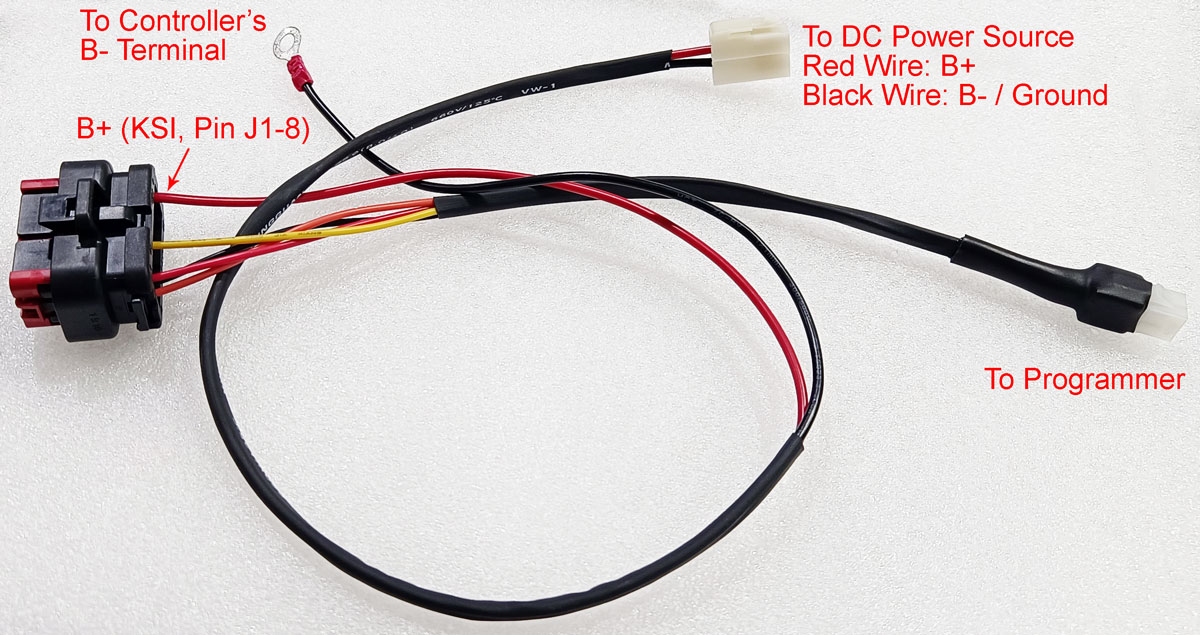

Wiring of Cable

By using this programming cable, for diagnosing and programming a CURTIS 1229 permanent magnet drive DC motor controller, you need to connect:

• the main terminal (busbar) "B-" of controller to the DC power source negative (B-) pole
• the AMP 23-Pin connector to its mating part on controller
  • the programmer 4-Pin MOLEX connector to its mating part of the programming cable
  • the B+ terminal of 23-Pin connector (extended red wire with 2-Pin connector) to the DC source positive (B+) pole

The 2-Pin connector is used for connecting the DC source, red wire for "B+" and black wire for "B-".
