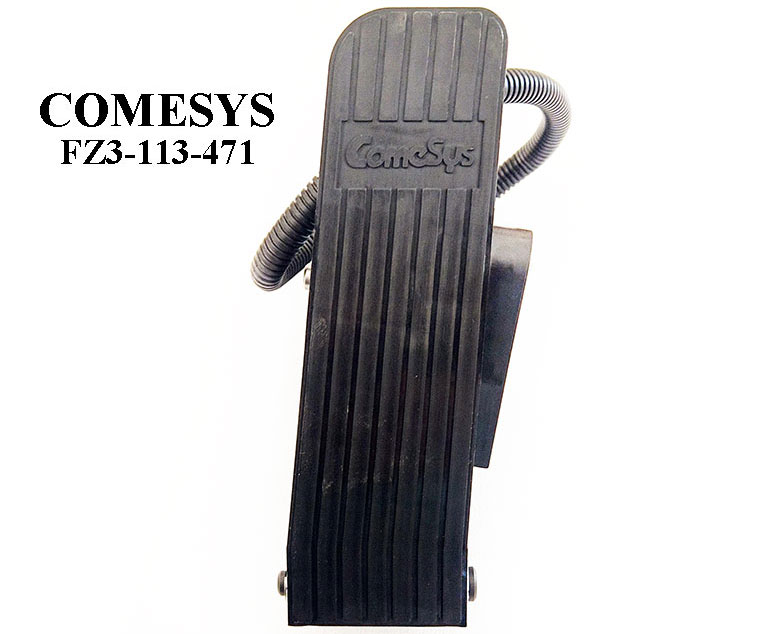

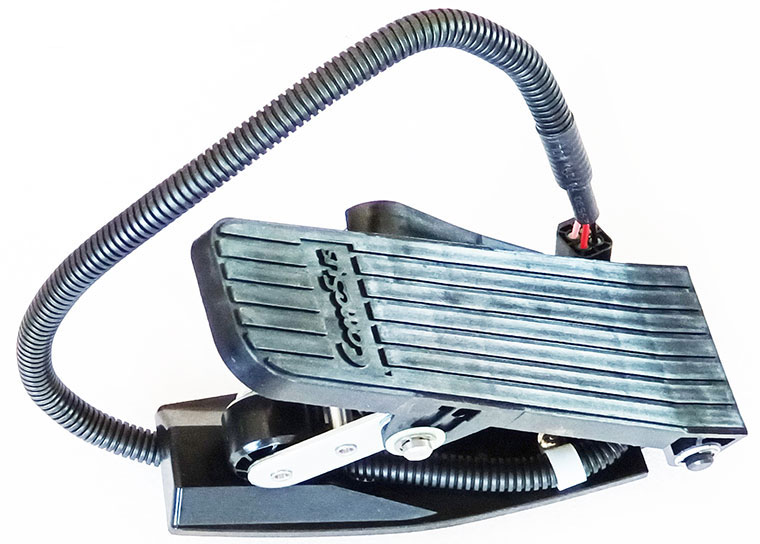

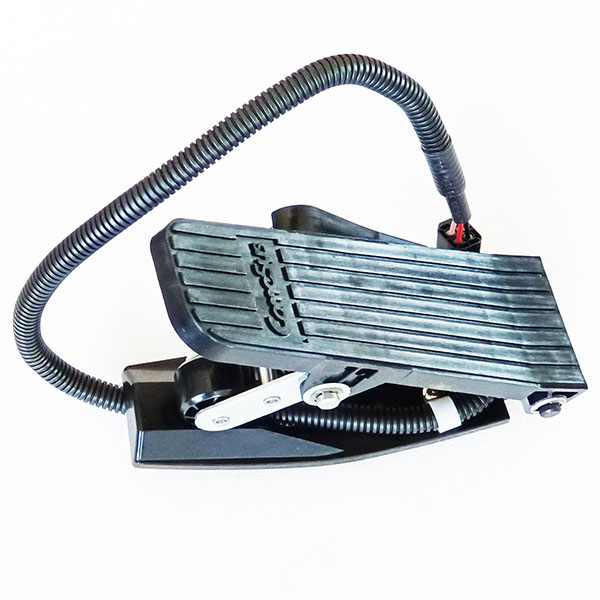

Clark Material Tug Accelerator FZ3-113-471

COMESYS Foot pedal throttle, with mating connector

There are different COMESYS accelerators for Clark vehicles:

• COMESYS FZ3-512-471
• COMESYS FZ3-123-471

Description:

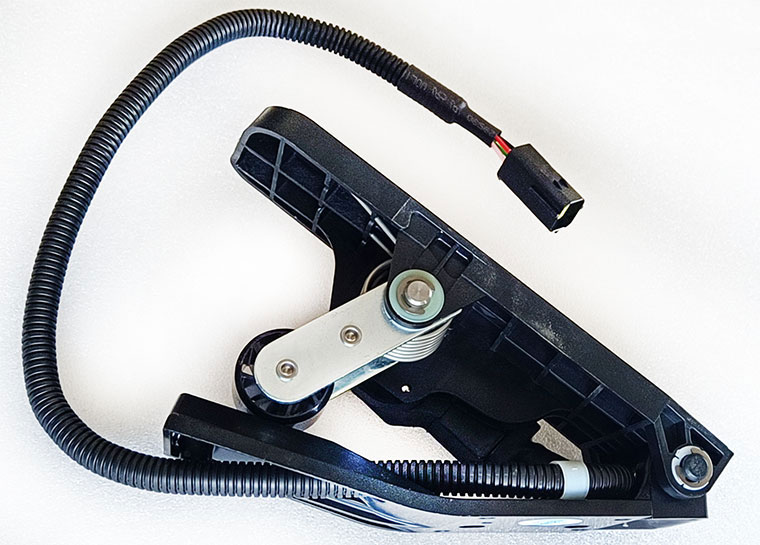

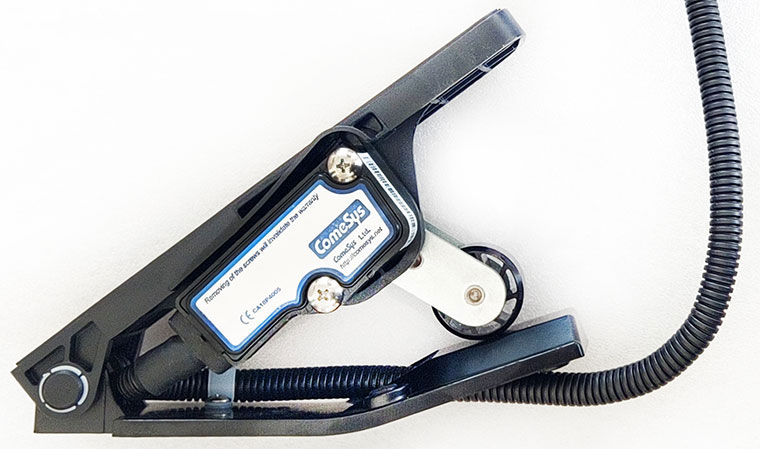

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-113-471 sends voltage throttle signal to motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Clark forklift part number 8159405 (typical application: Clark Material Tug CTX70 accelerator)
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Connector Wiring
Pin Code	Description	Wire Color
A	Power Input, Vcc 5VDC	Red
B	Ground	Black
C	Pedal Sensor Signal Output	Green
D	Switch Signal (IVS3)	Pink

Application:

4-Pin Connector

Typically applied as Clark forklift part (for example, accelerator of Clark Material Tug CTX70), COMESYS foot pedal throttle FZ3-113-471 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

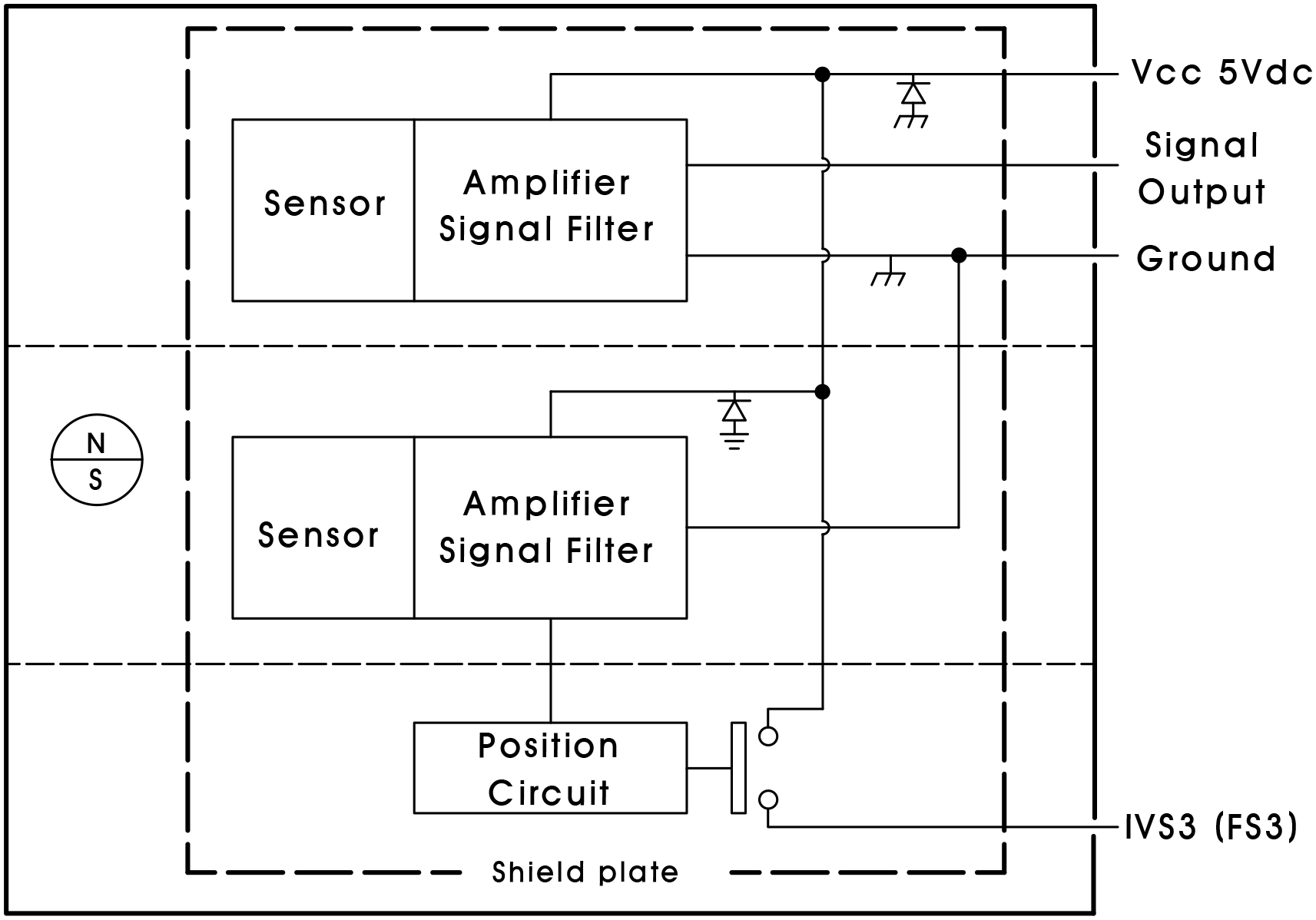

Wiring Diagram:

Clark Material Tug Accelerator FZ3-113-471

COMESYS Foot pedal throttle, with mating connector

There are different COMESYS accelerators for Clark vehicles:

• COMESYS FZ3-512-471
• COMESYS FZ3-123-471

Description:

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-113-471 sends voltage throttle signal to motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Clark forklift part number 8159405 (typical application: Clark Material Tug CTX70 accelerator)
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Connector Wiring
Pin Code	Description	Wire Color
A	Power Input, Vcc 5VDC	Red
B	Ground	Black
C	Pedal Sensor Signal Output	Green
D	Switch Signal (IVS3)	Pink

Application:

Typically applied as Clark forklift part (for example, accelerator of Clark Material Tug CTX70), COMESYS foot pedal throttle FZ3-113-471 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor.

4-Pin Connector

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

Wiring Diagram:
