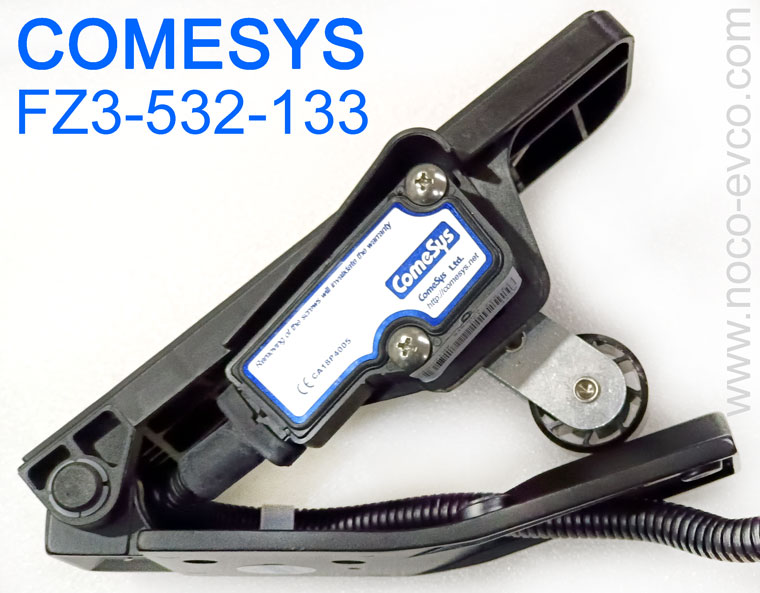

COMESYS Foot Pedal Throttle

Model: FZ3-532-133, electronic accelerator pedal assembly

Installed on the aluminum die-casted bottom plate, with an excellent design of non-lubricated contact between metal rail and plastic roller, secured by dual stainless steel return springs, the COMESYS foot pedal throttle model FZ3-532-133 are accelerating signal generator for motor speed controllers, for driving the traction motors of electric material handling vehicles like forklift and electric truck.

Specifications:

• Manufacturer: COMESYS
• Model: FZ3-532-133 (interchangeable with FZ3-123-471)
• Input voltage: 48/80VDC
• Product life : 10,000,000 cycles ( full travel sycle)
• Seal integrity : IP67
• Mating connector & installation kit are included
• ESD : tested in accordance with IEC 61000-4-2
• EMS : as per ISO 11452-2 (2004E)

Installation Kit	Mating Connector	Typical Wiring Method
Throttle Connector Wiring Instruction
Pin	Wire Color	Function
A	Red	Battery Posistive (B+)
B	Green	Throttle Signal
C	Black	Battery Negative (B-)
D	Yellow	Throttle Switch Common (Ground)
E	Blue	Throttle Switch Out (normal open)

Application:

COMESYS FZ3-532-133 is full function electric accelerator pedal assembly, working with SEVCON / CURTIS controllers.

FZ3-532-133 is ideal for both indoor and outdoor material handling electric vehicles such as forklift, electric truck, golf cart, pallet stacker and tow tractor. Typically applications include:

• HELI electric forklift
• BAOLI electric forklift
• LONKING electric forklift
• HYUNDAI electric forklift
• MAXIMAL electric forklift

Characteristics:

1. Pedal travel : 17.5 +/- 2deg
2. Pedal resistant force (measured at the point of 150 mm from the pedal pivot axis): initial load: 30N min; full load: 60N max.
3. Working temperature. : -40 - 85 °C
4. Storage temperature. : -40 - 105 °C
5. Vibration resistance: at least 20 hours for random vibration between 20 and 2000Hz in all 3 axis

COMESYS foot pedal assembly FZ3-532-133 wiring diagram:
