Permanent Magnet Drive DC Motor Speed Controller Assemblage

Model: 1227-3402, 36V / 160A, with 0-5V foot pedal throttle

Description:

Designed for driving permanent magnet motor， the 1227-3402 is an advanced, programmable microprocessor based motor speed controller which offers smooth, silent, cost-effective speed and torque control of 36V permanent magnet drive motor. Four quadrant, full bridge power output stages provide for solid state motor reversing and full regenerative braking power.

The 1227-3402 controller is fully programmable, via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

If you want to modify the controller parameters of 1227-3402, please send us a message with the list of parameters to be modified (Click here to download the parameter list of controller assemblage setting 1227-3402, PDF format).

Specifications

• full controlling set for 36V permanent magnet drive DC motor
• proposed motor power rate: 0.3 - 1.8 kW
• 0-5V foot pedal accelerator (throttle), model RJSQ-001
• simple plug-in connctors, with mating connectors
• easy to install

There are small round labels on the assemblage, indicating the wire connecting points: B+, B-, A1, A2.

KEY FEATURES

• Controller Model: 1227-3402
  • Norminal Battery Voltage (Volts): 36V DC
  • 1 Minute Current Rating (amps): 160A
  • 1 Hour Current Rating (amps): 60A
  • Under Voltage Cutback (Volts): 21V DC
• Assemblage Net Weight: 2.9 kg
• Package Weight: 5.5 kg (including the foot pedal throttle, mating connectors and installation kit)

The controller assemblage includes:

• Controller 1227-3402
• Main contactor QCC26C-100A
• Power fuse (stud type)
• Control fuse
• Wiring with 8-Pin connector
• 0-5V foot pedal throttle RJSQ-001, with 4-Pin connector
• Mating connectors and installation kit

If you don't use Electomagnetic Brake (EM Brake) or Mode Selection Switch with the controller assemblage 1227-3402, please select the options "Without EM Brake" and "Without Mode Select Switch".

Mating Connectors & Installation Kit

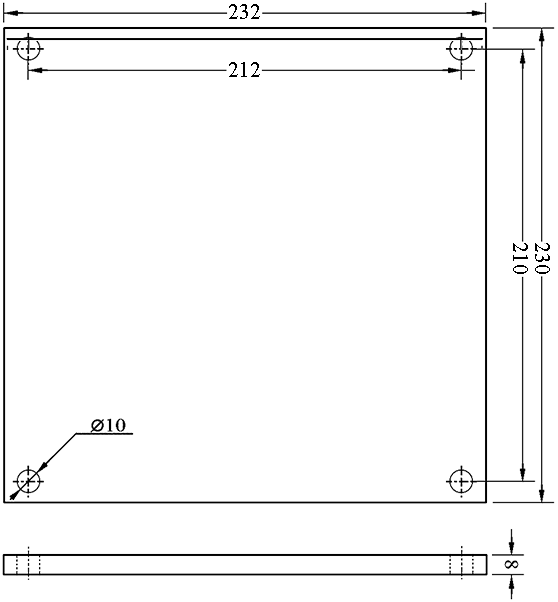

Installation Dimensions:
