CURTIS Series Winding Motor Speed Controller

Model: 1204M-4201, 24-36V / 275A, With Mating Connectors

Specifications

• full controlling set for 24V or 36V DC Series Motor
• proposed motor power rate: 2.3 - 3.6 kW
• foot pedal accelerator (throttle), pre-wired for assemblage
• simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
• Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
• reinforced carton package, safe for international delivery

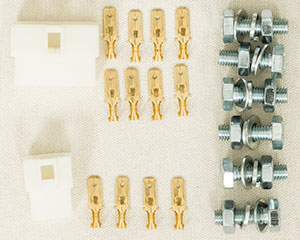

Mating Connectors & Installation Kit

This 1204M-4201 controller assemblage is a completed electric vehicle DC Series Motor control system, with components mounted on a heat-sink aluminium alloy installation plate. The assemblage includes:

• controller
• main contactor
• forward / reverse contactor
• fuses
• wiring
• heat-sink aluminium alloy installation plate
• foot pedal accelerator (throttle)
• plug-in connectors
• installation (bolts, washes and nuts) kit Included

There are small round labels on the assemblage, indicating the wire connecting points: B+, B-, A1, A2, D1 (F1 or S1) and D2 (F2 or S2).

For more installtion details, please take reference with the 1204M / 05M Controller Assemblage Connectors' Definition (PDF format) and 1204M / 05M Controller Assemblage Installation Instruction (PDF format).

Overview

CURTIS 1204M programmable series motor controllers are designed to provide smooth, silent, cost-effective control of motor speed and torque. 1204M controllers are updated versions of the popular 1204 controllers, with the added functionality of being programmable—via the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station. This means the controllers can be tailored to the needs of specific applications. In addition to configuration flexibility, use of the programmer offers diagnostic and test capability.

CURTIS 1204M controllers are the ideal solution for a variety of electric vehicle applications, including industrial trucks, personnel carriers, material handing vehicles, golf cars, etc.

Wiring Diagram:

In this assemblage, the J5 terminal of new 1204M controllers is not activated. The controller wiring is same to the old 1204M controllers without J5 terminal.


Click here to download the diagram (PDF format)

For more informaion of J5 terminal and the Rev Input / Main Driver functions, please see the page 7 and 8 of 1204M / 1205M controller manual (PDF format).

KEY FEATURES

• CURTIS Model: 1204M-4201
  • Norminal Battery Voltage (Volts): 36V (default setting) or 24V
  • 2 Minute Current Rating (amps): 275
  • 5 Minute Current Rating (amps): 200
  • 1 Hour Current Rating (amps): 125
  • Plug Braking (A2 Busbar): Yes
• Assemblage Net Weight: 7.9 kg
• Package Weight: 10.5 kg (including the foot pedal throttle)

Features include:

• High-frequency switching and ultra-low voltage drops provide high efficiency and silent operation.
• Simple mounting and wiring with push-on connectors for control signals and plated solid copper buses for power connections.
• Compatible with either a two-wire potentiometer or a voltage throttle.
• Throttle fault protection circuitry disables controller if throttle wires become open.
• High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
• Plug braking diode internal to controller.
• Thermal protection and compensation circuit provides constant current limit over operating range and during under/over temperature cutback; no sudden loss of power under any thermal conditions.
• Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
• Easily programmable through the CURTIS Model 1313-4331 Handheld Programmer or 1314 PC Programming Station.
• Rugged anodized aluminum extruded housing meets IP65 environmental sealing standards for use in harsh environments.

Installation Dimensions:

Equipped with a foot pedal throttle, the controller assemlage 1204M-4201 offers also a solution for replacing old CURTIS 1204 motor control unit. It may be installed as a direct replacement for CURTIS 1204 controller models listed below:

• 1204-001: 24-36V / 275A, 0-5K throttle
• 1204-004: 24-36V / 275A, 0-5K throttle
• 1204-015: 24-36V / 275A, 0-5K throttle
• 1204-018: 24-36V / 275A, 0-5V throttle
• 1204-022: 24-36V / 275A, 0-5K throttle
• 1204-026: 24-36V / 275A, 0-5V throttle
• 1204-027: 24-36V / 275A, 0-5K throttle
• 1204-031: 24-36V / 275A, 5K-0 throttle
• 1204-034: 24-36V / 275A, 0-5K throttle
• 1204-036: 24-36V / 275A, 0-5V throttle
• 1204-101: 24-36V / 175A, 0-5K throttle
• 1204-102: 24-36V / 175A, 0-5K throttle
• 1204-104: 24-36V / 175A, 0-5K throttle
• 1204-105: 24-36V / 175A, 0-5V throttle
• By default, we provide the controller assemblage 1204M-4201 only with a 0-5K foot pedal throttle EFP-001. If you don't want to used this throttle or need another throttle (for example, 0-5V foot pedal throttle RJSQ-001, 3-wire 0-5K foot pedal throttle JSQD-DWK-003D or ITS type 0-5V throttle FT-02YG), please contact us.

Specifications

• full controlling set for 24V or 36V DC Series Motor
• proposed motor power rate: 2.3 - 3.6 kW
• foot pedal accelerator (throttle), pre-wired for assemblage
• simple plug-in connctors (1204M / 05M Controller Assemblage Connectors' Definition (PDF format))
• Easy to install (1204M / 05M Controller Assemblage Installation Instruction (PDF format))
• reinforced carton package, safe for international delivery
• Assemblage Net Weight: 7.9 kg
• Package Weight: 10.5 kg (including the foot pedal throttle)
