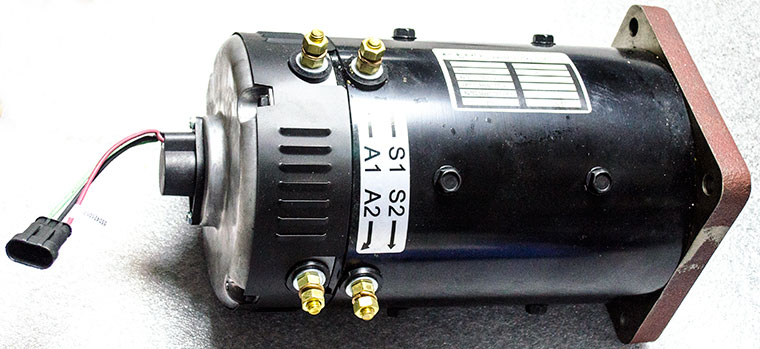

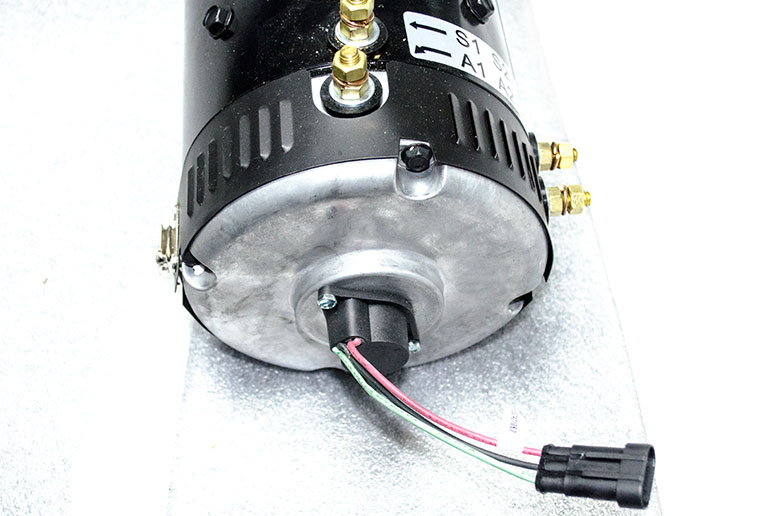

ZQS48-4.0-C1, DC Series Winding Motor

48V / 4.0kW, AMD / KDS product, electric vehicle traction motor

Specifications:

• Nominal power rate: 4.0 kW
• Operating voltage: 48V
• With speed sensor
• Insulation: class H
• Speed: 2800 rpm
• Torque: 13.64 Nm
• Package weight: 32 kg

Notice: this DC series winding motor ZQS48-4.0-C1 is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle models of EAGLE, Marshell, and other electric cart trademarks.

Notice: ZQS48-4.0-C1 can work with CURTIS 1205M-5603 DC series controller. We can also provide the controller assemblage of 1205M-5603.

Dimensions:
