AMD DC SepEx Motor
Model: ZQS48-3.8-T
765.00 USD
1 / 4
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available
2 / 4
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available
3 / 4
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available
4 / 4
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available
Speed Sensor Connector Option
Secured Payment of PayPal, VISA, MASTERCARD

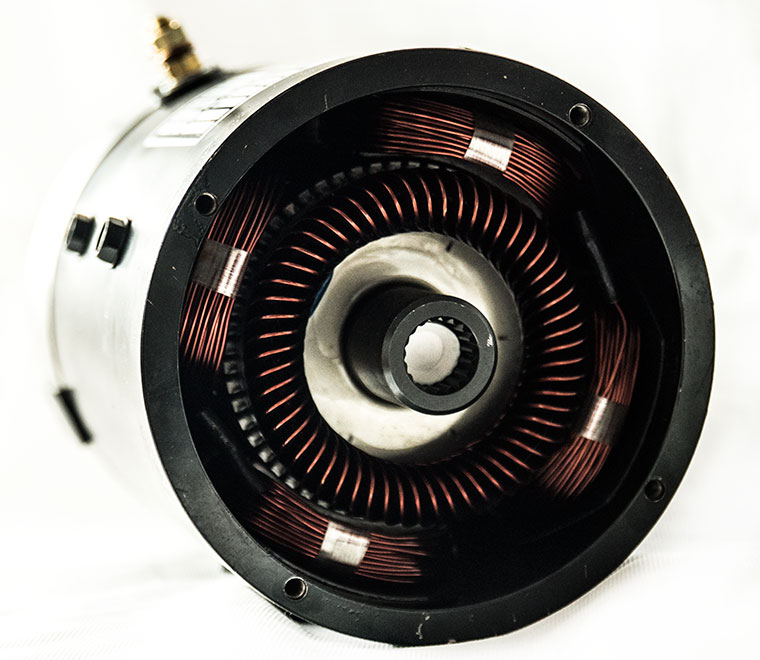

48V / 3.8kW DC SepEx Motor

Golf cart & electric utility vehicle traction motor

Specifications:

  • Model: ZQS48-3.8-T, compatible models include:
    • Advanced Motors (AMD) GB9-4001
    • Tomberlin E-Merge electric golf cart traction motor 1008255
    • DA8-4012
    • ZQS48-3.8-T1
  • Nominal power rate: 3.8 kW
  • Operating voltage: 48V
  • Spline teeth: 19
  • A Speed sensor is installed at the blind end of motor. The speed sensor mating connector is included. Two connector types are available:
  • Insulation: class H
  • Dimensions (L×Ø): 259.5 × 173.8 mm
  • Package weight: 32 kg
  • Package environmental rating: IP20

Speed sensor connectors:

AMD KDS Motor Speed Sensor

Notice: this SepEx motor ZQS48-3.8-T is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle models of EZGO, CLUB CAR, and other electric cart trademarks.

Notice: ZQS48-3.8-T can work with CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.

For more application details (spline, transmission, etc.), please contact us ...
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
DC SepEx Motor ZQS48-3.8-T
AMD DC SepEx Motor
Model: ZQS48-3.8-T
765.00 USD
Speed Sensor Connector Option
Secured Payment of PayPal, VISA, MASTERCARD
Free Int'l Expedited Shipping
12-Month warranty
Outline Dimensions (PDF format) PDF LOGO - https://www.noco-evco.com/

KDS 48V 3.8kW DC SepEx Motor

Model: ZQS48-3.8-T, golf carts traction motor

Specifications:

  • Nominal power rate: 3.8 kW
  • Operating voltage: 48V
  • Spline teeth: 19
  • A Speed sensor is installed at the blind end of motor. The speed sensor mating connector is included. Two connector types are available:
  • Insulation: class H
  • Dimensions (L×Ø): 259.5 × 173.8 mm
  • Package weight: 32 kg
  • Package environmental rating: IP20

Speed sensor connectors:

AMD KDS Motor Speed Sensor
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available
DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available DC SepEx Motor ZQS48-3.8-TT, 48V / 3.8kW, Other Voltage Options Available

Notice: this SepEx motor ZQS48-3.8-T is the product of AMD (made by Chinese manufacturer KDS), applied in multiple electric vehicle models of EZGO, CLUB CAR, and other electric cart trademarks.

Notice: ZQS48-3.8-T can work with CURTIS 1268-5403 SepEx controller. We can also provide the controller assemblage of 1268-5403.

For more application details (spline, transmission, etc.), please contact us ...
