600A Heavy Duty DC Contactor

Model: ZJ600D, DC power ON / OFF switching solenoid

Overview

The ZJ600D contactor is a SPST (Single Pole Single Throw; normally open type) DC contactor, designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. ZJ600D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

ZJ600D is a contactor of unicoil winding.

Specifications:

• Model: ZJ600D
• Control coil working voltage Options (Volts): 12V, 24V, 36V, 48V, 60V or 72V
• Main contact rated voltage: ≤ 80VDC
• Main rated load current of contact circuit (amps): 600A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 600A: Not above 80mV
• Voltage fluctuating：0.7~1.1Ue

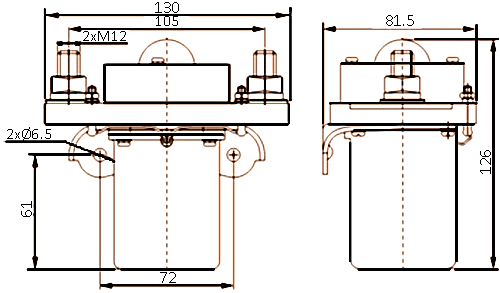

• Dimensions (LxWxH ): 130x81.5x126 mm
• Mounting: two 6.5mm fixing holes in bracket; pitch-row: 72mm
• Continual working duration: 8h
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times
• Ambient temperature：-25~+40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Net weight: 1.1 kg
