Single Pole Single Throw DC Contactor

Rated for 100A, with cable lugs and insulators

Overview

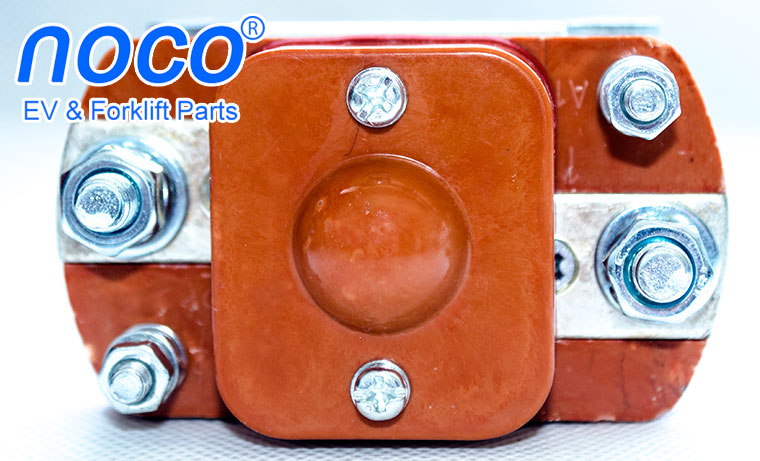

ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Main rated load current of contact circuit (amps): 100A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 100A: Not above 80mV
• Rated voltage of main contacts: ≤ 80VDC
• Control coil power consumption: ≤ 7.0 watts
• Dimensions (LxWxH ): 54x42.5x64 mm
• Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
• Continual working duration: 8h
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times

Specifications:

• Model: ZJ100D
• Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
• Ambient temperature：-25 ~ +40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7 ~ 1.1Ue
• Wiring:
  • Main contacts: tinned copper lug SC16-6, maximum wiring size 16 mm²
  • Silicone insulators for main contactor cable lugs
  • Control coil terminals: cold pressed O-type connector RV1.25-4S, maximum wiring size 1.25 mm²

Overview

ZJ100D is a SPST (Single Pole Single Throw; normally open type) DC contactor of unicoil winding. Designed for direct current loads, particularly for motors on small electric vehicles (light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc.), ZJ100D has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

• Main rated load current of contact circuit (amps): 100A
• Dielectric (volt) strength: 50Hz 1000V AC 1min
• Current volt drop of main contact at 100A: Not above 80mV
• Rated voltage of main contacts: ≤ 80VDC
• Control coil power consumption: ≤ 7.0 watts
• Dimensions (LxWxH ): 54x42.5x64 mm
• Mounting: two 4.5mm fixing holes in bracket; pitch-row: 47mm
• Continual working duration: 8h
• Mechanical life: 100,000 times
• Electric life: 2,000,000 times

Specifications:

Lug SC16-6

• Model: ZJ100D
• Voltage Options (Volts): 12V, 24V, 36V, 48V or 72V.
• Ambient temperature：-25 ~ +40°C
• Altitude range：0~2000m
• Max.relative humidity: 90% at 25°C
• Installation method：vertically or horizontally
• Voltage fluctuating：0.7 ~ 1.1Ue
• Wiring:
  • Main contacts: tinned copper lug SC16-6, maximum wiring size 16 mm²
  • Silicone insulators for main contactor cable lugs
  • Control coil terminals: cold pressed O-type connector RV1.25-4S, maximum wiring size 1.25 mm²
