ZF Gear Tooth Speed & Direction Sensor

Two-Channel Hall Effect Sensor, With Mounting Flange

The ZF SD74-4502 sensors are Hall Effect products for measuring very slow movements of ferromagnetic targets. They work with an Open Drain output. The immersion depth of sensor detector is 45mm.

Typical applications:

• Hyster forklift
• Crown forklift

Key features:

• Model: SD74-4502
• Sensor body length: 45 mm
• Sensor detecting range: 0 - 20 kHz sensing capability
• Typical air gap range: 0.3 - 2.2 mm (0.01" - 0.09")
• Wiring (refer to the photo on this page):
  • Red: B+ (wire number 1)
  • Black: B- (wire number 2)
  • Blue: channel 2 (wire number 3)
  • White: channel 1 (wire number 4)
  • For different applications, the connector form and the wiring sequence may be different. We may also rewire the connector per buyer's requirement.

For ZF speed sensor SD74-4502, it works with a wild range of supply voltage 4.5 - 24V DC (maximum input voltage 28V DC).

Note: an external pull-up resistor is required. The value of resistance is dependent on the supply voltage. The resistor should be connected between the output and Vcc.

Recommended external pull-up resistor:

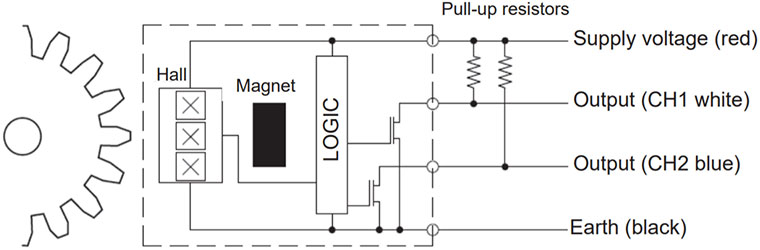

Wiring diagram:

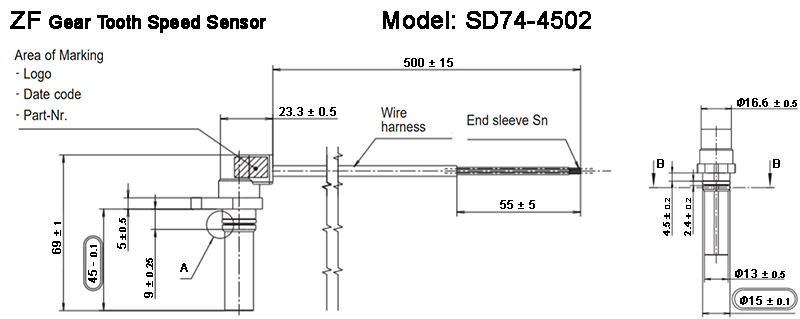

Dimensions (unit: mm):

We supply also ZF encoders with AMP Superseal connectors:

• 35mm SD74-3502
• 45mm SD74-4502
