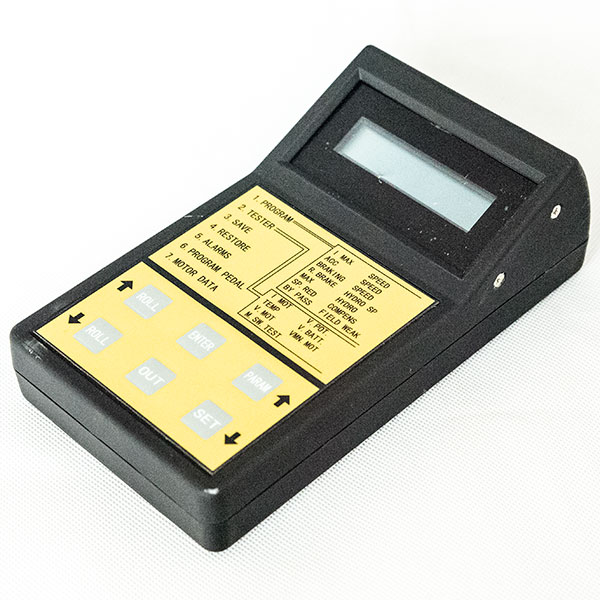

ZAPI Handheld Programmer / Mini-Console

Diagnosing and programming tool, working with ZAPI motor speed controllers

Attention: this handset (handheld programming unit) is not the product of ZAPI company. It is developed and manufactured by a Chinese manufacturer. This handset works with most ZAPI motor speed controllers (typical application: ZAPI H2B DC series winding motor speed chopper). For more details, please feel free to contact us.

We supply also genuine ZAPI Smart Console.

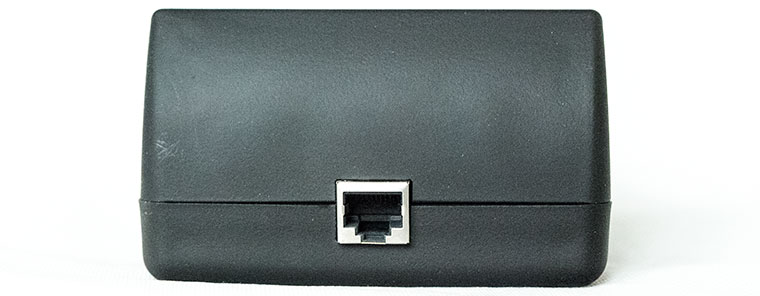

Attention: Pay special attention to the polarity of the console connector when it is hooked up to the chopper.

CAUTION: HOOKING UP MUST ONLY BE DONE WITH THE MACHINE OFF.

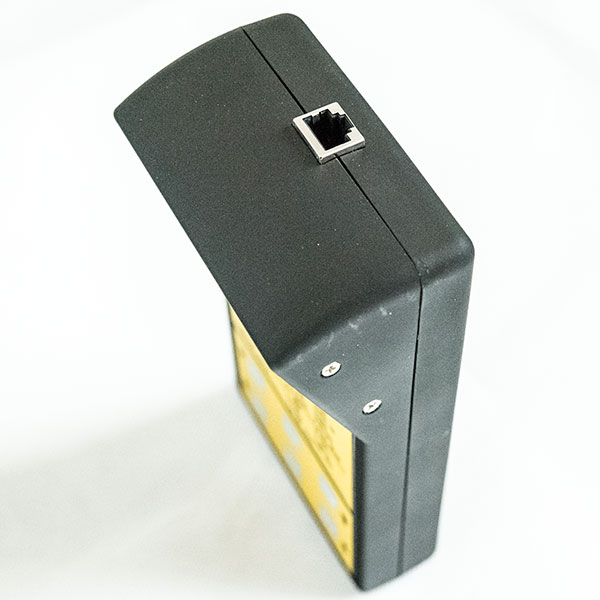

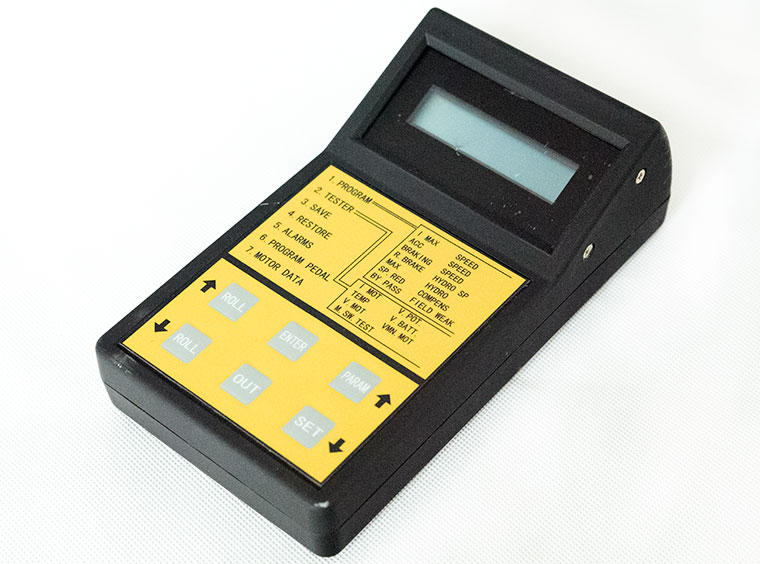

ZAPI controllers all have a serial output that is able to communicate with the external systems, such as personal computers. Designed as an intelligent microprocessor based console, with a LCD display and multi-function keyboard, the handset ZAPI_HHC is developed for monitoring, diagnosing and programming the ZAPI controllers.

Technical details:

• PROGRAMMING PARAMETERS:
• maximum current
• braking
• acceleration rate
• creep speed
• 1st level of speed reduction
• 2nd level of speed reduction
• etc.
• TESTER:  provides a visual display of analogue and numeric measurements within the chopper (battery voltage, motor voltage, motor current, temperature, throttle signal, etc.).
• RESTORE: enables a fast digital re-coverage of previously set parameters. This function may be used for reprogramming controllers to obtain the homogenized operating behavior.
• ALARMS: this function displays visually the last 5 controller faults.
• DIMENSIONS: 100 x 190 x 60 mm

Typical wiring method for diagnosing H1 / H2 / H2B / H3 (traction and pump) controllers:

• Turn Off the power.

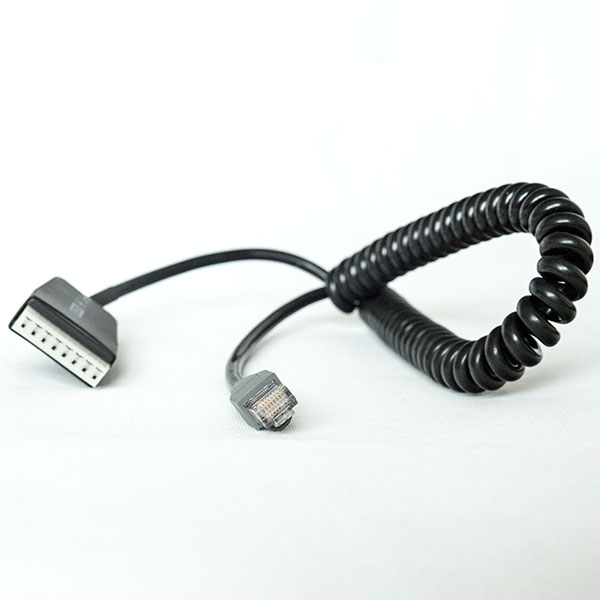

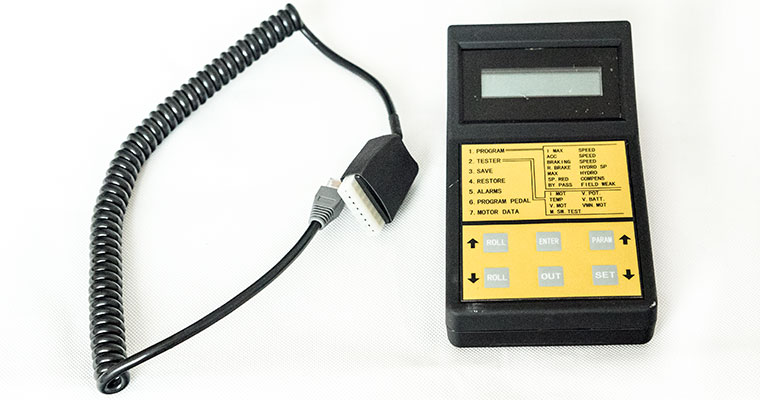

• Connect the mini-console cable 8-Pin connector to controller's connector B. The function of each pin is listed as below:
  • B1: PCLRXD, Serial reception positive
  • B2: NCLRXD, Serial reception negative
  • B3: PCLTXD, Serial transmission positive
  • B4: NCLTXD, Serial transmission negative
  • B5: GND, Console supply negative
  • B6: +12, Console supply positive
  • B7: FUNCTION SELECT, Channel for mini-console (speed signal)
  • B8: UP / DOWN, Channel for mini-console (speed ref.)
• Connect battery positive (B+) to B+ main terminal and D1 terminal (+CH IN, to be connected to the key); connect battery negative (B-) to B- main terminal.
• Turn on the power, you will see the mini-console to be activated automatically.
