Industrial AC Power Connector

Y015 Plug + Y115 Socket, 5-Pin + Earth, Screw-in Tightening, 200 - 240V (346 - 415V) AC / 16A

Contacts of Y015 & Y115 / Position of Dowel Pin

Y015 (part number 0150106) and Y115 (part number 1151106) connectors are designed for industrial AC power interconnecting & distributing purposes, are widely used in construction industry, wind photovoltaic power system, remote telecommunication power source, etc. The Y015 / Y115 connectors offer higher operation safety, and make the AC power interconnection applications easier to install and connect / disconnect.

The Y015 / Y115 connectors are often used as AC power inlet for electric vehicles. Typical application: fast pull-push battery charger AC power connector for electric vehicle.

Key features:

• Brand: YEEDA
• Model: Y015 plug & Y115 socket
• Two AC power terminals + earth terminal:
  • 4-Pole: "L1", "L2", "L3" and "N". Wiring recommendation: the terminal "L/+" should be connected to the AC power "line" ("live") electrodes, the terminal "N" should be connected to the AC power "neutral" electrode
  • The "Earth" terminal should be connected to the AC power "earth" electrode (if there is not an earth electrode in your AC power source, the "Earth" terminal can be left unconnected). For safery, it is not recommended to use the electric power source without earth electrode.
• Nominal current rating: 16A
• Working voltage: 200 - 240V (346 - 415V) AC
• Screw-in compressing and tightening, easy to wire
• IP44 Waterproof Design

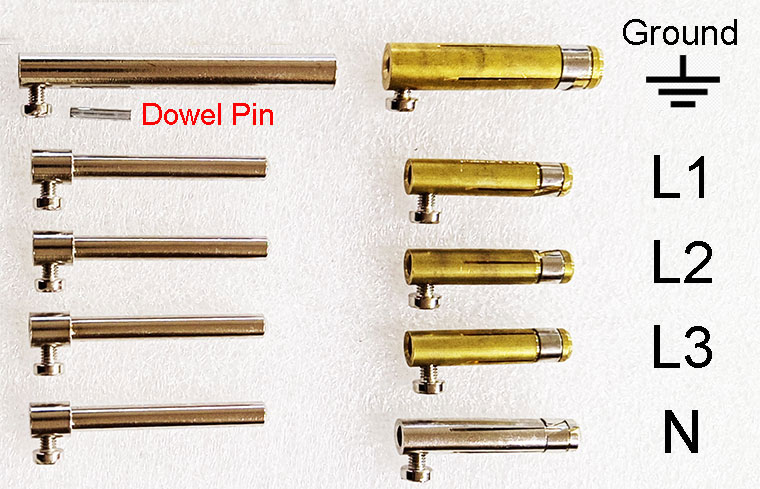

Wiring of contacts:

Dimensions of plug Y015 (part number 0130106):

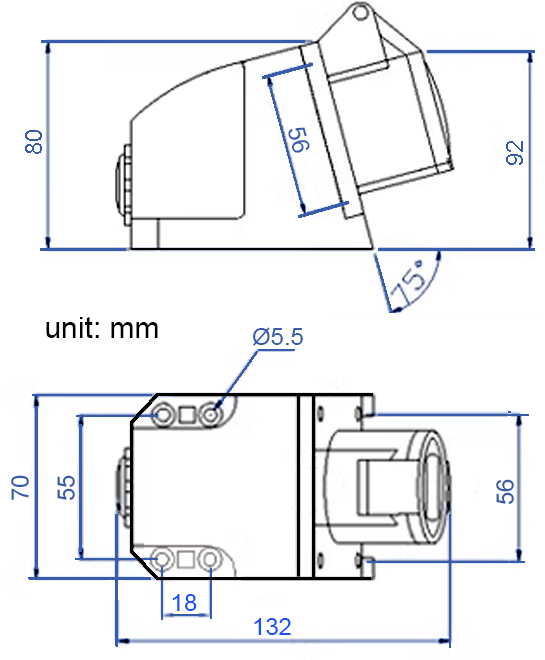

Socket Y115 (part number Y1151106) & dimensions:
