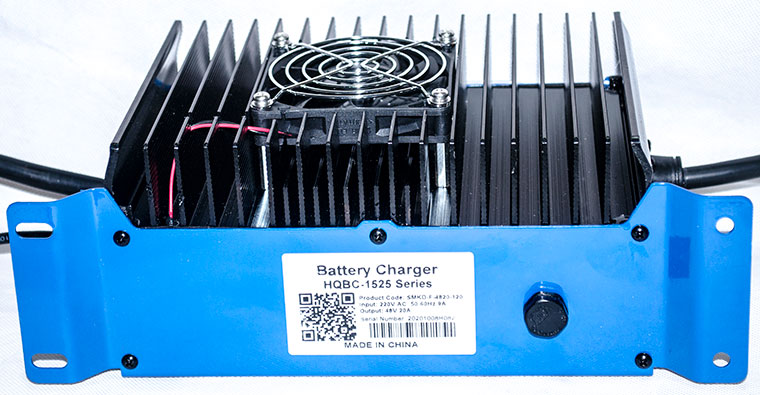

Onboard Battery Charger

Flexible configuration, suitable for different batteries

Overview

The HQBC-1525 automatic battery chargers are designed for battery power driven vehicles, for example golf cart and forklift.

• Suit for multiple battery types, if your battery pack is a special model, you may contact us for more information about the charger
• Features with intelligent temperature compensation function which could optimize the charging process, greatly extending the lifespan of battery
• Onboard type, easy to install
• Multiple AC power plug options
• Forced ventilation cooling
• Intelligent charging design
• Clear LED display board:
  • Power on
  • Working status
  • Battery full charged indicator
  • Error code ("1": LED flashed 1 second; "_": LED off 1 second):
    • 1 _ _ _ _ _ _ _ : wrong battery
    • 1 _ 1 _ _ _ _ _ : charging overtime
    • 1 _ 1 _ 1 _ _ _ : battery temperature error
• Typical application: golf cart, electric utility vehicle, pallet stacker, remote DC power station, etc.

YEEDA DC power charging connector (The mating connector will be provided with the battery charger. Other charging connector could also be provided, please contact us for more details.):

Dimensions (unit: mm):

Only available for Lead-Acid battery

Optional

Optional

Specifications:

• Model: HQBC-1525
  • Input voltage:
    • 110V AC (100-120V AC)
    • 220V AC (200-240V AC)
  • Output voltage:
    • 24V DC
    • 36V DC
    • 48V DC
    • 60V DC
    • 72V DC
  • Output current:
    • 15A
    • 20A
    • 22A
    • 25A
    • 30A (not available for 72V charger)
• Full sealed structure, IP66 level protection
• Thermal Sensor / Enable: the "Enable" shares the same cable with "Thermal Sensor". When the charger is set for Lithium batteries, the temperature sensor is disabled.
  • Thermal Sensor: for Lead-Acid battery charger (battery over-temperature protection), recommended to attach the temperature sensor to one of the highest temperature battery cells.
  • Enable: monitoring the "Enable Signal" of battery protection circuit of the Lithium battery pack. The "Enable Signal" interact with charger through an internal DC relay, to control the ON / OFF actions of charger.
• Charging Efficiency: 95%
• Electrical isolation (min.): 1000 V AC
• Stand-by power consumption: ≤ 5W
• Self-protections available:
  • Output over-voltage protection
  • Output over-current protection
  • Output short-circuit protection
  • Output reversed polarity protection
  • Charger over-temperature protection
  • Battery over-temperature protection
• More options (need to buy separately, for more information, please Contact us):

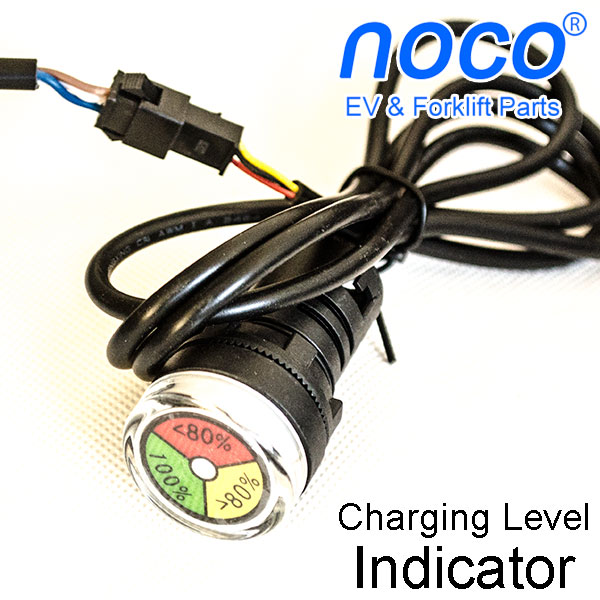

  • LED battery charging level indicator
  • An output of 12V DC (working current: ≤ 0.2A) is available for facilitating the external applications, for example an "Charger On" alarm light.
• Mating connector of DC power charging connector is included
• Reliability test: MTBF 150,000 hours (reliability based on tested device failure rate)
• Operating ambient temperature range: -40°C to 60°C
• Storage ambient temperature range: -40°C to 90°C
• Relative Humidity: 5 - 95%

AC plug options:

• Type A: Germany, France, Ireland, Switzerland, Netherlands, Luxembourg, Iceland, Austria, Belgium, Spain, Portugal, Sweden, Denmark, Norway, Finland, Croatia, Greece, Poland, Hungary, Czech Republic, Slovakia, Bulgaria, Bosnia, Russia, Ukraine, Lithuania, Turkey, South Korea, Vietnam, Thailand, Bangladesh, Myanmar, Cambodia, Afghanistan, UAE, Israel, Jordan, Kuwait, Oman, Iran, Iraq, Brazil, Argentina, Cuba, Bolivia, Cameroon, Central Africa, Congo, Egypt, Rwanda, Senegal, Tunisia, Mongolia, China, etc. Also called "German standard conversion plug", made with CEE 7/16 standards, rated for 16A / 100-250V AC.
• Type B: USA, Canada, Mexico, Japan, etc.
• Type C: UK, Ireland, Malta, Cyprus, Malaysia, Singapore, Sri Lanka, Saudi Arabia, Kuwait, Qatar, Abu Dhabi & Dubai (states of UAE), Bangladesh, Belize, Saint Helena, Saint Lucia, Seychelles, Grenada, Bhutan, Botswana, Malawi, Kenya, Uganda, Hong Kong, Macau, etc. Also called "Type G", with a cartridge fuse.
• Type D: China, Australia, New Zealand, Argentina, etc.
