XQT-4HV Carbon Brush Set

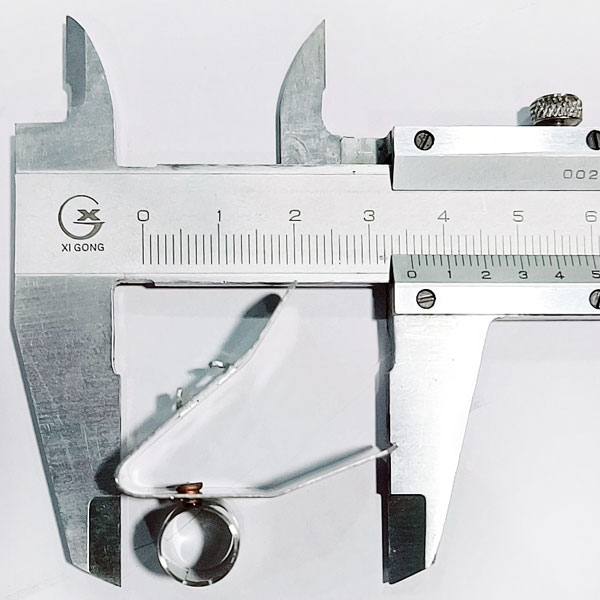

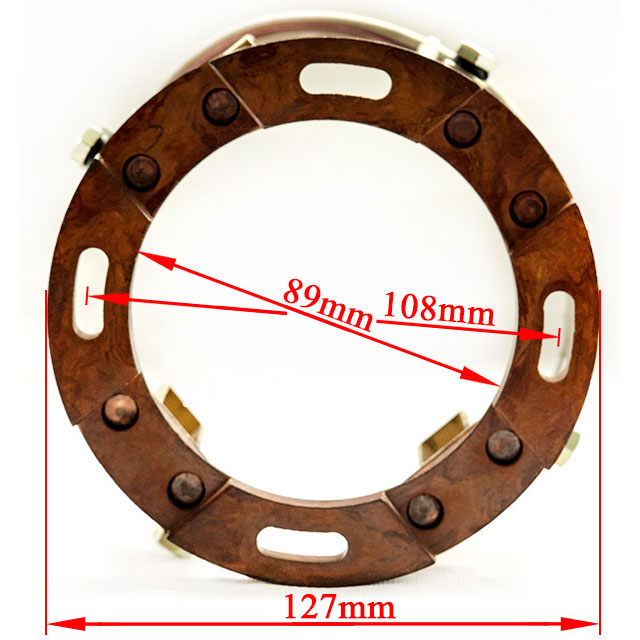

Carbon Brush + Spring + Frame

The carbon brush, spring and frame of 48V motor XQT-4HV are compatible with 72V motor XQ-5-7HV.

The DC SepEx motor model XQT-4HV is used as traction motor for electric vehicles, widely applied by vehicle brands EAGLE, Star EV, Marshell, etc.

Typical application: 6-8 seats golf cart.

Features:

• Motor model: XQT-4HV
• Motor type: DC Seperately Excited Motor
• Working voltage: 48V DC
• Power rate: 4 kW
• Rating for S2 60 min
• Armature working current: 101 Amperes
• Insulation class: F
• Rated speed: 2800 rpm
• Spline: 10 teeth internal type

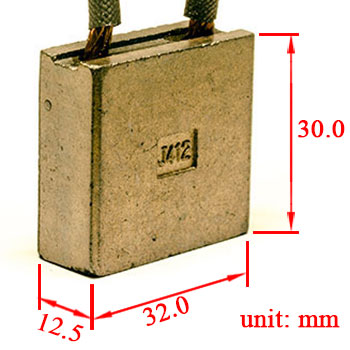

• Parts: carbon brushes (J412, thickness 12.5mm, height 30mm, width 32mm), springs and carbon brush frame (holder)
• Ingress protection: IP44
• Rated exciting current: 9 Amperes (minimum exciting current: 5A)
• Speend sensor: 4 pulse / rev, (red wire: power +; black wire: power -; blue wire: speed signal)

There are other motor models of XQ & XQT series using the same carbon brush set of XQT-4HV, for example the motor model XQ-5-7HV. For more information, please contact us.

If you buy the full set of carbon brush assemblage (4 carbon brushes + 4 springs + frame), these parts will not be assembled together. They will be shipped as individual pieces.

We may supply also the DC series winding motor model XQ-4HV / XQ-4-4HV and their parts (carbon brushes, springs and carbon brush holder). For more details, please contact us.

The DC SepEx motor model XQT-4HV is used as traction motor for electric vehicles, widely applied by vehicle brands EAGLE, Star EV, Marshell, etc.

Typical application: 6-8 seats golf cart.

Features:

• Working voltage: 48V DV
• Power rate: 4 kW
• Rating for S2 60 min
• Armature working current: 101 Amperes
• Insulation class: F
• Rated speed: 2800 rpm
• Spline: 10 teeth internal type
• Ingress protection: IP44
• Rated exciting current: 9 Amperes (minimum exciting current: 5A)
• Speend sensor: 4 pulse / rev, (red wire: power +; black wire: power -; blue wire: speed signal)

There are other motor models of XQ & XQT series using the same carbon brush set of XQT-4HV, for example the motor model XQ-5-7HV. For more information, please contact us.
