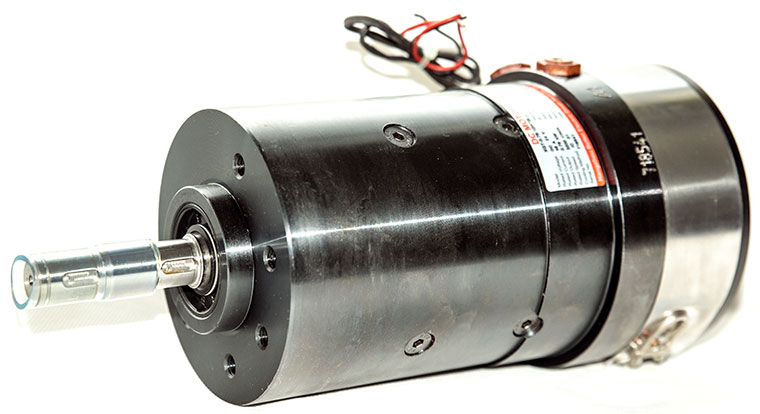

24 / 0.75kW DC SepEx Motor

Model: XQT-0.75-1DH1U, Noblelift PS10M / PT15 / LPT15 drive motor

The DC SepEx motor XQT-0.75-1DH1U is used as driving motor (traction motor) of electric vehicle drive wheel. A drive wheel is a multi-purpose mechanism, which integrates the DC powered motor, the transmission and the brake. Featuring with compact size, the drive wheel is easy to be installed on an electric vehicle, as its traction unit.

Typical application: NOBLIFT PS10M / PT15 / LPT15 power pallet truck.

Specifications:

• Nominal power rate: 0.75 kW
• Operating voltage: 24V DC
• Rated current: 45A
• Exciting method: separately
• Exciting curent: 6.4A
• Rated duty time: 60 min.
• Rated speed: 3200 rpm
• Max. speed: 3600 rpm
• Accessory kit is included
• Insulation: class F
• Package weight: 10.6 kg
• Ingress protection rating: IP54

We supply also:

• Motor driving unts 3EL-DC-0.75 (0.75 kW), 3EL-DC-1.0 (1.0 kW) and 3EL-DC-1.2 (1.2 kW)
• Driving motor XQT-1.2-3HIU

For more information, please contact us.
