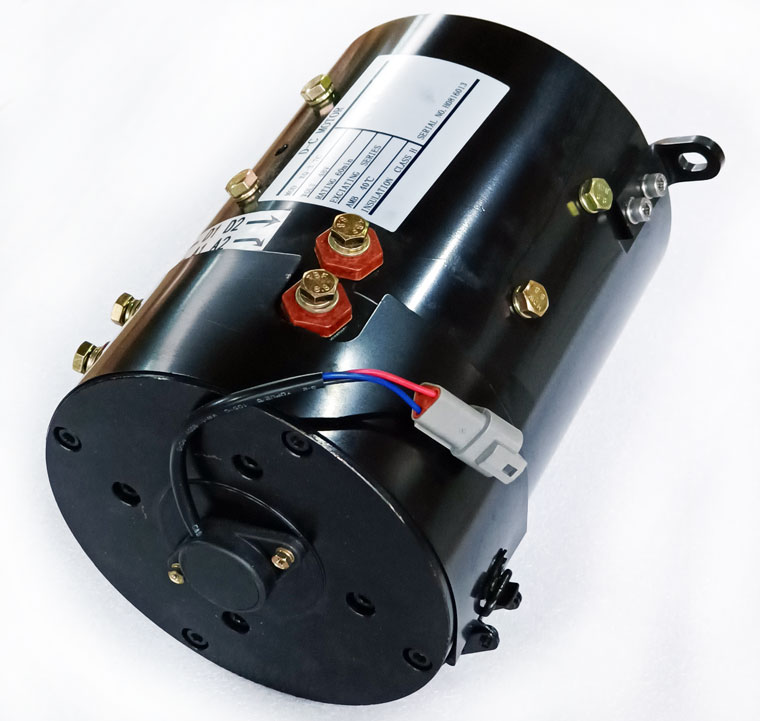

36V / 48V DC Series Winding Motor

With 10-teeth spline, golf cart traction motor

About the speed sensor: An hall-effect speed sensor is installed at the blind end of motor. For most DC series motor controllers, the speed sensor of motor is not required. You may leave it unconnected. When there is a speedometer (tachometer), the speed sensor could be a speed signal feeder to the meter.

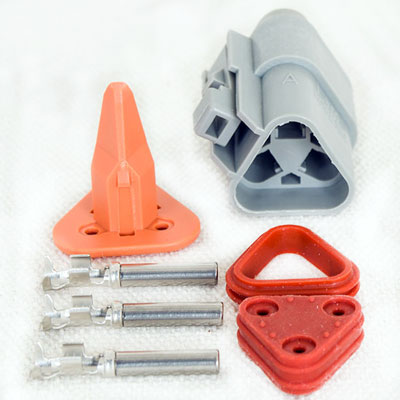

Speed Sensor Mating Connector

XQ-3.0C and XQ-3.7C are DC Series Winding Motors, used as golf cart traction motors. Both models are subjected to be replacements for Club Car DS golf cart motors as listed below:

• 36V:
  • 1012190
  • 1012191
  • 1018134-01
  • 101772801
  • 102237401
• 48V
  • 101813301
  • 101785701
  • 102237701

Specifications:

• Model:
  • XQ-3.0C
  • Voltage: 36V DC
  • Power Rate: 3.0 kW
  • XQ-3.7C
  • Voltage: 48V DC
  • Power Rate: 3.7 kW
• Speed sensor mating connector is included
• Insulation: class H
• Net weight: 25.6 kg
• Package weight: 28.0 kg
• Ingress protection: IP20

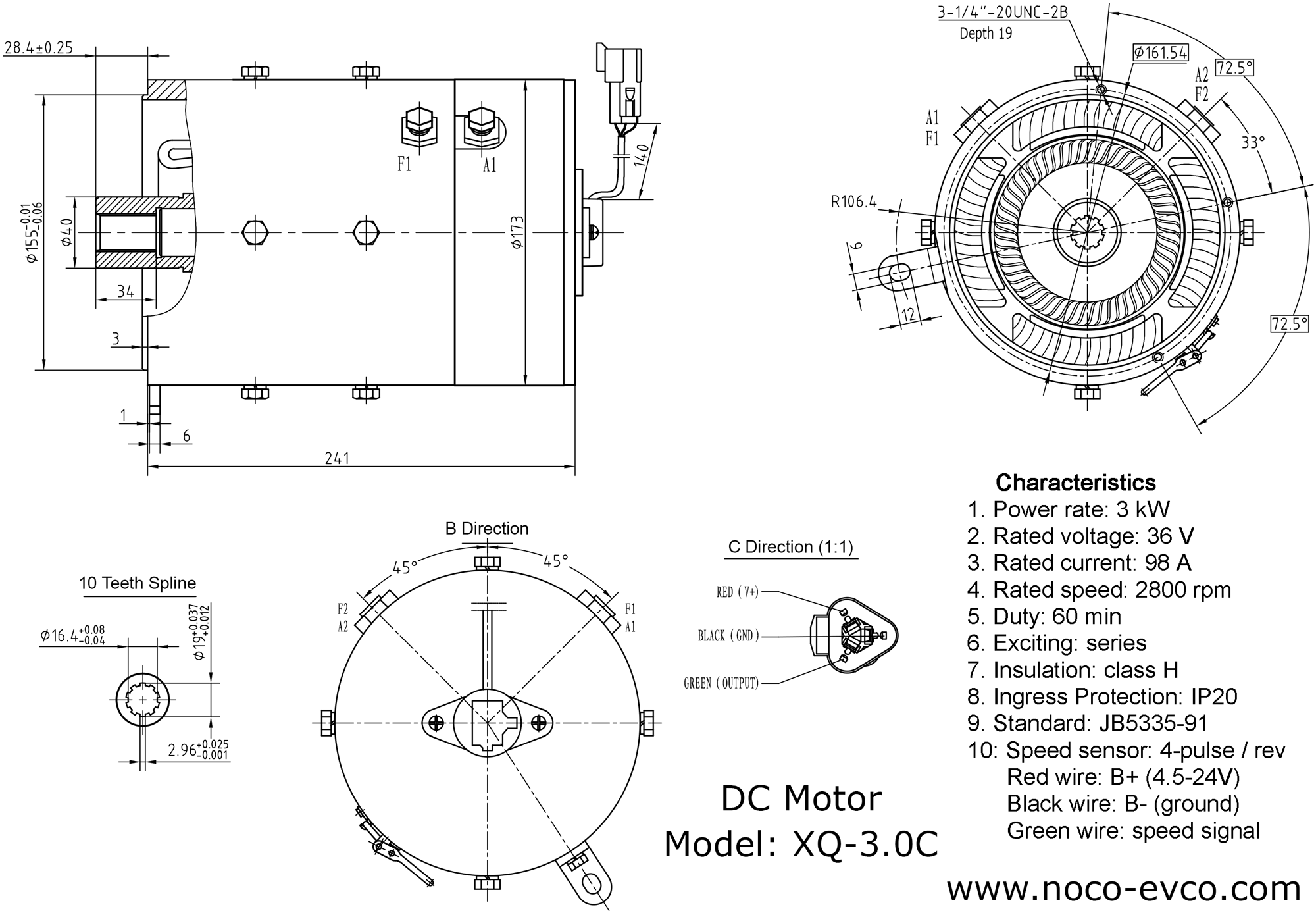

Diagram of XQ-3.0C:

Diagram of XQ-3.7C:
