Three-Phase Phase-Shift Trigger Module
Model: SSR-3JK
With Three-Phase Synchronous Transformer Module TB-3
Lowest Unit Price 47.80 USD
1 / 4

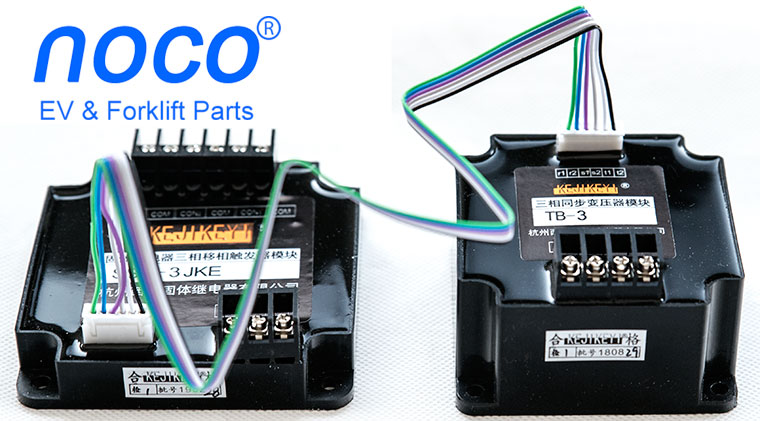

XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
2 / 4

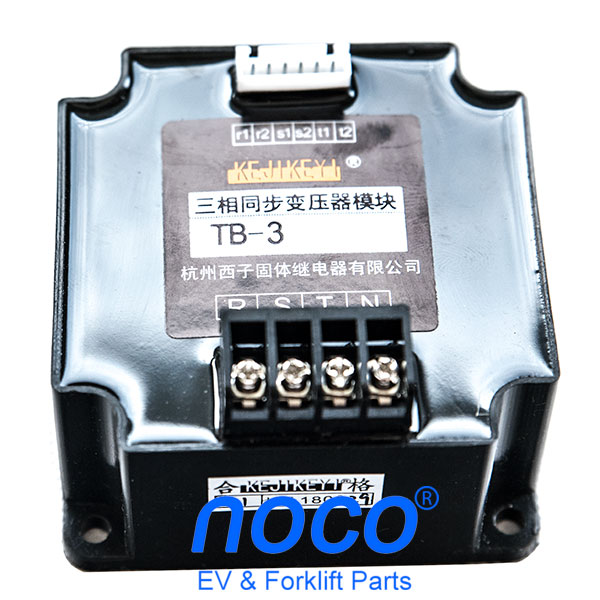

XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
3 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
4 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
Quantity Options
Model Options
Secured Payment of PayPal, VISA, MASTERCARD

XIZI Solid State Relay (SSR) Three-Phase Voltage Regulating Thyristor

3-Phase Phase-Shift Trigger Module + 3-Phase Synchronous Transformer Module

XIZI Solid State Relay SSR-3JKF

Specifications:

  • Manufacturer: XIZI Solid State Semiconductor Co., Ltd.
  • Brand: KEJIKEYI®
  • Product name: 3-phase, phase-shift trigger module (includes 3-phase synchronous transformer module TB-3)
  • Model:
    • SSR-3JKE (control signal input: 0 - 5V)
    • SSR-3JKF (control signal input: 0 - 10V)
    • SSR-3JKG (control signal input: 2 - 20mA)
    • SSR-3JKG (control signal input: 1 - 5V)
  • Net weight:
    • SSR-3JKE/F/G/H: 0.205 kg / unit
    • TB-3: 0.540 kg / unit
  • Applications:
    • grid-connected photovoltaic power system (solar power generating system)
    • 3-phase AC power source voltage regulator
    • electric heating system
    • electric transformer
    • industrial & tunnel ventilator
    • etc.
XIZI Solid State Relay SSR-H480D155P

Working with solid state relays, 3-phase phase shifted trigger module SSR-3JK integrates 3-phase power phase detection, phase shift circuit, control circuit and solid state relay triggering circuit, SSR-3JK generates three pulse signals which can change the conduction angle to control three pieces random type solid state relays separately, can achieve to stepless adjust three-phase load voltage from 0V to full voltage.

We supply also solid state relays which work with SSR-3JK modules. These solid state relays are variable in dimensions and form, with wildly different voltage & current ratings:

  • Rated voltage: 220V AC, 380V AC and 480V AC
  • Rated working current: from 2A to 500A (for 480V product, the minimum current rate is 10A)

For more details of the solid state relays, please contact us.

Working with different control signals, SSR-3JK product family has four module models:

  • SSR-3JKE: control signal 0-5V
  • SSR-3JKF: control signal 0-10V
  • SSR-3JFG: control signal 4-20mA
  • SSR-3JFH: control signal 1-5V

SSR-3JK product model specification table:

  SSR-3JKE SSR-3JKF SSR-3JKG SSR-3JKH
Control Signal 0-5V 0-10V 4-20 mA 1-5V
Input Resistance > 30KΩ > 30KΩ 250Ω > 30KΩ
Valid Input Range 0.75 - 4.75V 1.5 - 9.5V 5 - 19 mA 1.25 - 4.75V
Phase Shift Angle Range 150° - 0° 150° - 0° 150° - 0° 150° - 0°

Product size:

3-phase Phase-Shift Trigger Module SSR-3JK, with 3-phase synchronous transformer TB-3, dimensional diagram
Wiring diagram:
Wiring Diagram of 3-phase Phase-Shift Trigger Module SSR-3JK, with 3-phase synchronous transformer TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
3-Phase Phase-Shift Trigger Module
Model: SSR-3JK
With 3-Phase Synchronous Transformer Module TB-3
Lowest Unit Price 47.80 USD
1 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
2 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
3 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
4 / 4
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
Quantity Options
Model Options
Secured Payment of PayPal, VISA, MASTERCARD

XIZI solid state relay (SSR) three-phase voltage regulating thyristor unit is composed by a 3-Phase Phase-Shift Trigger Module (model SSR-3JK) and a 3-Phase Synchronous Transformer Module (model TB-3).

XIZI Solid State Relay SSR-3JKF XIZI Solid State Relay SSR-3JKF

Specifications:

  • Manufacturer: XIZI Solid State Semiconductor Co., Ltd.
  • Brand: KEJIKEYI®
  • Product name: 3-phase, phase-shift trigger module (includes 3-phase synchronous transformer module TB-3)
  • Model:
    • SSR-3JKE (control signal input: 0 - 5V)
    • SSR-3JKF (control signal input: 0 - 10V)
    • SSR-3JKG (control signal input: 2 - 20mA)
    • SSR-3JKG (control signal input: 1 - 5V)
  • Net weight:
    • SSR-3JKE/F/G/H: 0.205 kg / unit
    • TB-3: 0.540 kg / unit
  • Applications:
    • grid-connected photovoltaic power system (solar power generating system)
    • 3-phase AC power source voltage regulator
    • electric heating system
    • electric transformer
    • industrial & tunnel ventilator
    • etc.

Working with solid state relays, 3-phase phase shifted trigger module SSR-3JK integrates 3-phase power phase detection, phase shift circuit, control circuit and solid state relay triggering circuit, SSR-3JK generates three pulse signals which can change the conduction angle to control three pieces random type solid state relays separately, can achieve to stepless adjust three-phase load voltage from 0V to full voltage.

XIZI Solid State Relay SSR-H480D155P

We supply also solid state relays which work with SSR-3JK modules. These solid state relays are variable in dimensions and form, with wildly different voltage & current ratings:

  • Rated voltage: 220V AC, 380V AC and 480V AC
  • Rated working current: from 2A to 500A (for 480V product, the minimum current rate is 10A)

For more details of the solid state relays, please contact us.

Working with different control signals, SSR-3JK product family has four module models:

  • SSR-3JKE: control signal 0-5V
  • SSR-3JKF: control signal 0-10V
  • SSR-3JFG: control signal 4-20mA
  • SSR-3JFH: control signal 1-5V

SSR-3JK product model specification table:

  SSR-3JKE SSR-3JKF SSR-3JKG SSR-3JKH
Control Signal 0-5V 0-10V 4-20 mA 1-5V
Input Resistance > 30KΩ > 30KΩ 250Ω > 30KΩ
Valid Input Range 0.75 - 4.75V 1.5 - 9.5V 5 - 19 mA 1.25 - 4.75V
Phase Shift Angle Range 150° - 0° 150° - 0° 150° - 0° 150° - 0°

Product size:

3-phase Phase-Shift Trigger Module SSR-3JK, with 3-phase synchronous transformer TB-3, dimensional diagram
Wiring diagram:
Wiring Diagram of 3-phase Phase-Shift Trigger Module SSR-3JK, with 3-phase synchronous transformer TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
XIZI Solid State Relay, Three-Phase Phase-Shift Trigger Module SSR-3JK, With Three-Phase Synchronous Transformer Module TB-3
