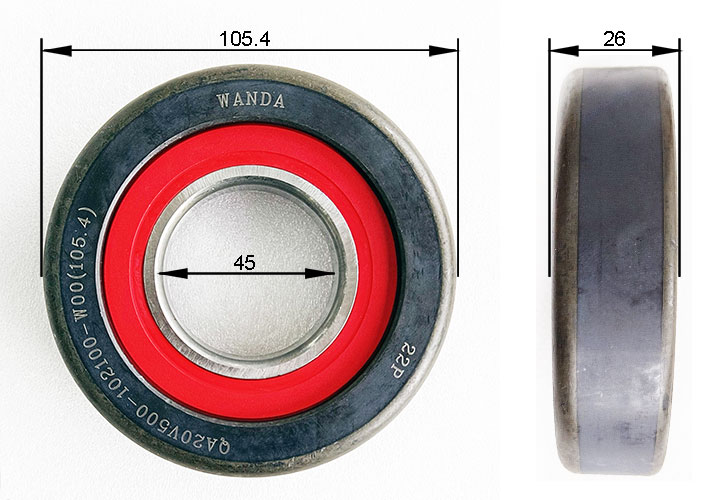

WANDA Mast Roller Bearing, 45x105.4x26

Part Number: 3316-514000-00 / QA20V500-102100-W00

Mast bearings are used on fork lift trucks. They carry the forks (carriage) up the mast and they also enable the various stages of the mast to extend.

WANDA mast bearings are used by multiple forklift brands, for example EP 2.0 Ton forklift CQD20RV.

Specifications:

• Part name: WANDA mast bearing
• Part number: 3316-514000-00 / QA20V500-102100-W00
• Dimensions:
  • Outer diameter: 105.4mm
  • Width: 26mm
  • Bearing bore diameter: 45mm
  • Bearing width: 19mm
• Net weight: 1.08kg

Typical application: HELI forklifts, EP forklifts, etc.

Features:

• Thick Outer Ring: Mast bearings operate at relatively low speeds. They travel along the rail as a track bearing (like a wheel) and consequently experience high loads. The outer ring (steel tyre) of a mast bearing is much thicker than a standard bearing, to enable this load to be transmitted.
• Inseparable Design: The components of the bearings are held together to form an inseparable "wheel".
• Support Heavy Duty Operation: With a solid and compact design, mast bearings work with repeated tasks of lifting / lowering manoeuvering of weighted load.
• Seals: Sealed to prevent the grease from escaping and to keep debris out.

There are many different mast bearings. If you are looking for a specific model, please contact us...
