Trombetta PowerSeal 12V / 24V / 48V DC Contactor

Intermittent Duty, Non-Grounded

Overview

The TROMBETTA 684-1261 / 684-2461 / 684-4861 contactor is designed for direct current loads, particularly for motors on small electric vehicles such as light industrial trucks, electric forklift, electric pallet stacker, golf cart, etc. For automotive, the typical application of TROMBETTA contactors 684-1261 / 684-2461 / 684-4861, is engine starter DC relay.

TROMBETTA has double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

TROMBETTA PowerSeal 684-1261 / 684-2461 / 684-4861 are contactors of unicoil winding, with curved "L" shape bracket. We supply also similar contactor with flat type "L" shape bracket, model 684-2451-212-17 (24V).

Specifications:

• Model: TROMBETTA 684-1261-212 / 684-2461-212 / 684-4861-212 (with "L" shape bracket)
• Contactor type: SPST NO (single pole single throw, normal open)
• Voltage Options (Volts): 12V / 24V / 48V
• Max sustained duty circle:
  • Duty circle = on time / (on time + off time)
  • 12V 684-1261: 25%
  • 24V 684-2461: 25%
  • 48V 684-4861: 25%
  • Max. on time: 6 minutes
• Pull in voltage:
  • 12V 684-1261: 6V
  • 24V 684-2461: 12V
  • 48V 684-4861: 28V
• Hold voltage:
  • 12V 684-1261: 3.5V
  • 24V 684-2461: 7V
  • 48V 684-4861: 18V
• Coil resistance:
  • 12V 684-1261: 5.4Ω
  • 24V 684-2461: 20.1Ω
  • 48V 684-4861: 74.3Ω
• Resistive / Inductive Load: 150A
• Interrupt Capability: 250A
• Peak inductive inrush capability: 800A
• Electrical cycle life:
  • 12V 684-1261: 100,000 times
  • 24V 684-2461: 60,000 times
  • 48V 684-4861: 40,000 times
• Contact material: Copper
• Main contact: M8
• Control coil terminal: M5
• Operating temperature：-40 ~ +82°C
• Installation method：vertically or horizontally

Mounting instructions (when used as engine starter motor DC relay, 2 mounting holes may have already been prepared on the motor body):

1. Select a desired mounting location.
2. Using the contactor as a template, mark the centers of the mounting holes.
3. Using a 1/4" drill bit, drill the holes marked in the previous step.
4. Mount the contact using 1/4" bolts and nuts.
5. Wire the relay according to the wiring diagram.

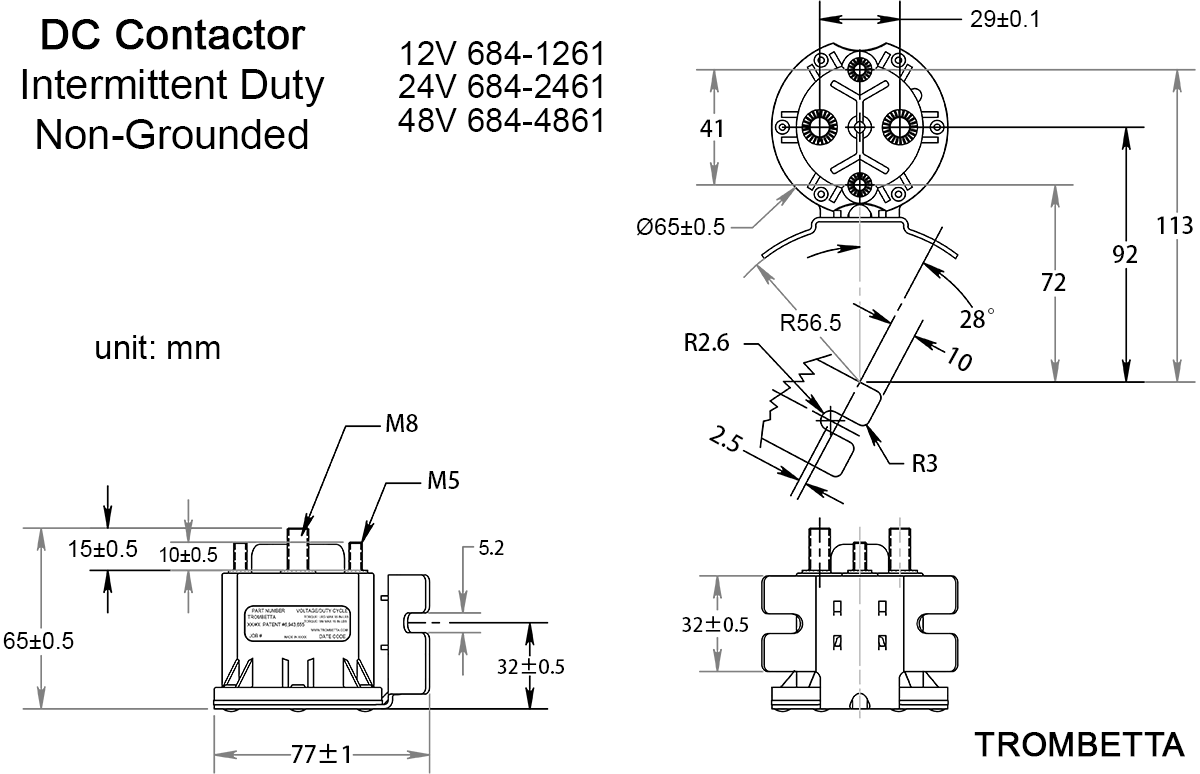

Dimensions:

We supply also other Trombetta or compatible contactors:

• 24V with flat L shape bracket: 684-2451
• 36V with flat L shape bracket: EZGO 609428, compatible with 684-3651
• 48V with flat L shape bracket: 684-4851
• 36V / 48V with 90 degree bracket: 684-3641-012 / 684-4861-012
