Stanley Circlip (Snap Ring) Plier
5" 7" 9" 13"
Straight or 90 Degree Bent

From 5.99 USD
Size
Type
Secured Payment of PayPal, VISA, MASTERCARD
Free Shipping On Order $99.99
12-Month warranty

Due to the small volume and low cost of the Stanley circlip plier, we don't offer free international expedited delivery service for a single Stanley circlip plier. Please use the "ADD TO CART" button, and checkout together with your other purchases. When the total order amount is over 99.99 USD, all products in the order are automatically qualified for free international shipping.

For more information, please see our delivery terms.
Stanley Circlip (Snap Ring) Plier, Cr-V Steel Tool, 84-332-23, 84-334-23, 84-335-23, 84-337-23, 84-338-23, 84-341-23, 84-348-23, 84-359-23 Stanley Circlip (Snap Ring) Plier, Cr-V Steel Tool, 84-332-23, 84-334-23, 84-335-23, 84-337-23, 84-338-23, 84-341-23, 84-348-23, 84-359-23
Stanley Circlip (Snap Ring) Plier, Cr-V Steel Tool, 84-332-23, 84-334-23, 84-335-23, 84-337-23, 84-338-23, 84-341-23, 84-348-23, 84-359-23 Stanley Circlip (Snap Ring) Plier, Cr-V Steel Tool, 84-332-23, 84-334-23, 84-335-23, 84-337-23, 84-338-23, 84-341-23, 84-348-23, 84-359-23

Features:

  • Two types: straight or 90 degree bent
  • Material: Cr-V steel
  • Complying with DIN 5254 standard
  • Anti-corrosion treatment
  • Optimized handle protection
  • Net weight:
    • 5": 0.11kg
    • 7": 0.19kg
    • 9": 0.35kg
    • 13": 0.55 kg

For opening or repairing the CURTIS SepEx controllers (1268-5403, 1244-5561, 1244-5651 or 1244-6661), you may need a 5" circlip plier.

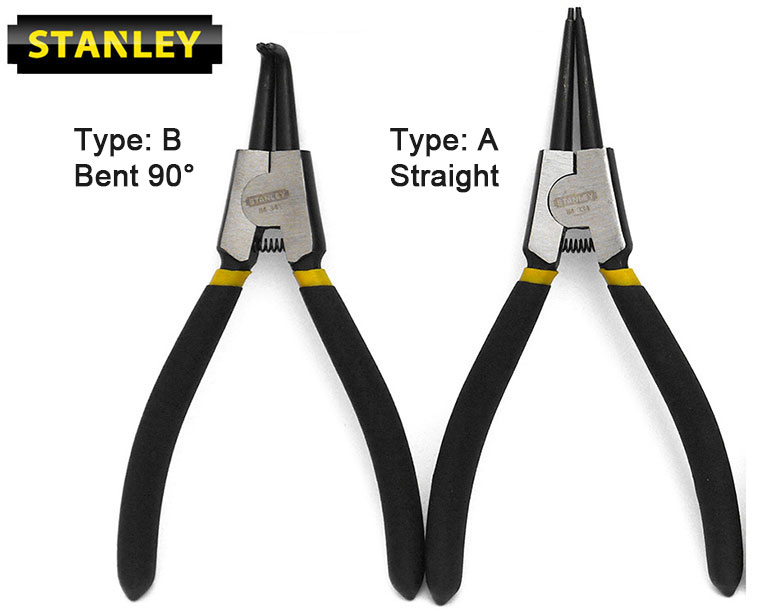

Stanley Circlip Plier Type Options
Type A:
Size
L (mm)
A (mm)
C (mm)
D (mm)
Circlip Size (mm)
Plier Head Diameter (mm)
5"
125
38
8
60.5
8-25
0.9
7"
175
58.5
10
86
19-60
1.8
9"
225
75
12
94.5
35-100
2.3
13"
325
90.5
13.5
155
85-165
3.2

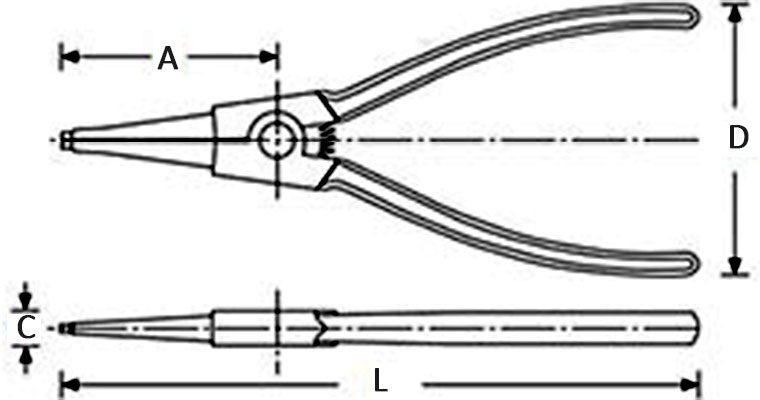

Stanley Circlip (Snap Ring) Plier Dimensions, Straight Type
Type B:
Size
L (mm)
A (mm)
C (mm)
D (mm)
Circlip Size (mm)
Plier Head Diameter (mm)
5"
125
31
8
60.5
8-25
0.9
7"
175
47.8
10
86
19-60
1.8
9"
225
60.3
12
94.5
35-100
2.3
13"
325
70
13.5
155
85-165
3.2

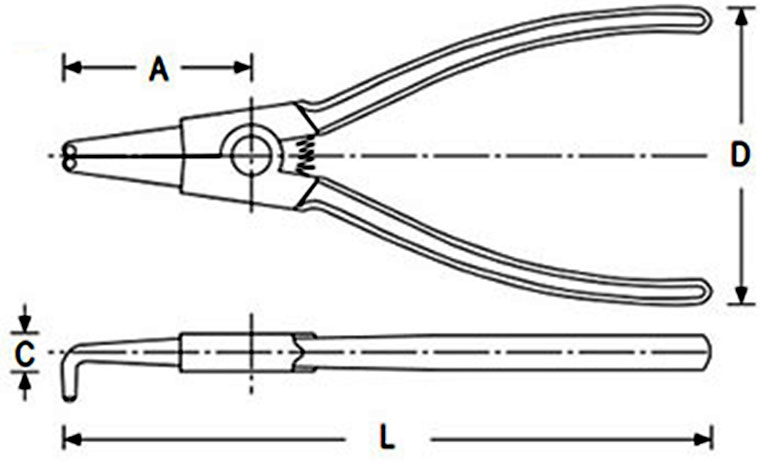

Stanley Circlip (Snap Ring) Plier Dimensions, 90 Degree Bent Type
