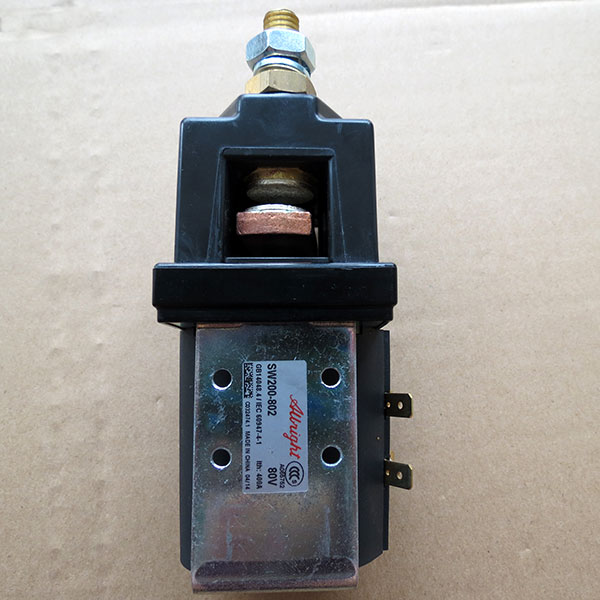

Albright DC Contactor SW200-583 / SW200-802

80V 400A SPST NO (Single Pole Single Throw, Normal Open) DC Contactor

"L" Shape Bracket (optional)

Top Hat Shape Bracket (optional)

Overview

The SW200 series contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

Click to download the Albright DC Contactor Model List (PDF format).

Specifications:

• Manufacturer: ALBRIGHT
• Model:
  • SW200-802 (Zapi Model: B8SW31, forklift lifting pump contactor)
  • SW200-583 (Zapi Model: B8SW32, forklift driving motor control system main contactor)
• Contactor Type: Single Pole Single Throw, On/Off Type
• Rated coil working voltage: 80V DC (72 - 84V DC)
• Maximum recommended contact voltage: 96V DC
• Main Circuit Current Rating: 400A
• Main circuit voltage rating (recommended): 60V / 72V / 80V / 84V DC
• Typical fault current which can be ruptured: 1,500 Amperes at 96V DC
• Mechanical life: > 5,000,000 times
• Weight: about 1.35kg

The SW200-583 & SW200-802 contactors are wildly applied in 60V, 72V & 80V DC power systems. The maximum recommended contact voltage for SW200 is 96VDC. For more details of voltage options, please read carefully the Albright SW200 Contactor Datasheet before making the purchase.

We supply also the mounting bracket for SW200 / SW200B contactors (need to buy separately):

• Top hat shape
• L shape

Typical application of SW200-583 and SW200-802: electric forklift 72V / 80V driving motor and lifting pump DC power switching ON / OFF. Both models are often used by forklift manufacturers HANGCHA, HELI, TCM, Tailift, Hyster, STILL, etc.

Features include:

• The contactors are compact in size.
• Fully serviceable, with a full range of spare parts available.
• Easy installation, the contactors SW200-583 and SW200-802 can be mounted horizontally or vertically. If mounted vertically, the main terminals should point upwards.
• Proved quality by different application, forklift, electric vehcile, industrial equipments, etc.
