| Paired Single Pole Double Throw DC Contactor 200A SW182 Type Motor Reversing Contactor Electric Vehicle Forward / Reverse Switching Contactor |
||||||||||||||||||||||||||||||||||||
|
Lowest Unit Price 92.90 USD
|
||||||||||||||||||||||||||||||||||||

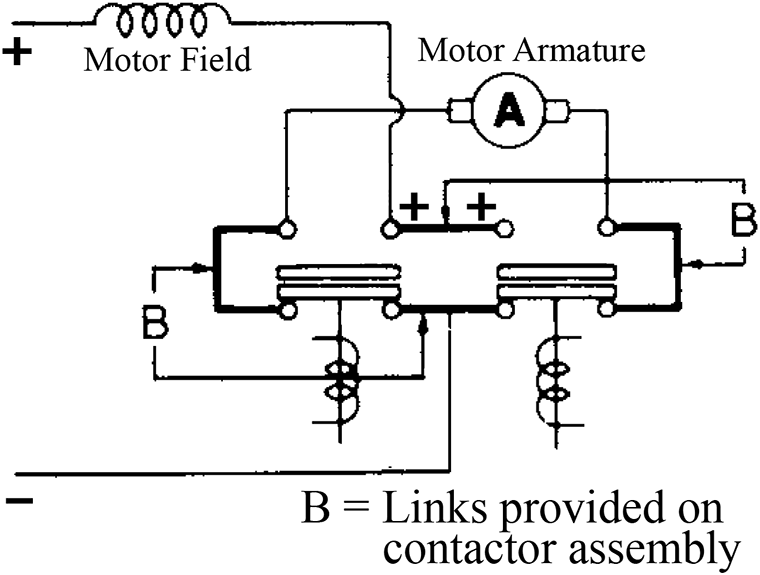

SW182 Type 200A DC Reversing ContactorWith 6.3mm (1/4") spade connector kitThis SW182 stype motor reversing contactor is an OEM product, made by a Chinese manufacturer. The SW182 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW182 is suitable for switching Resistive, Capacitive and Inductive loads. The SW182 features single pole double throw, double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW182 has M8 stud main terminals and 6.3mm spade coil connections. The main contact circuit, designed for motor reversing, is such that it has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuits. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.   We supply also the contact kit (repair service kit) for SW182 contactor. Features:
Dimensions:  |
||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||
| Paired SPDT DC Contactor SW182 Type Motor Reversing Contactor EV Forward / Reverse Contactor |
||||||||||||||||||||||||||||||||||||
|
Lowest Unit Price 92.90 USD
1 / 4
2 / 4
3 / 4
4 / 4
 |
||||||||||||||||||||||||||||||||||||
SW182 Type 200A DC Reversing Contactor 6.3mm (1/4") Spade Connector Kit This SW182 stype motor reversing contactor is an OEM product, made by a Chinese manufacturer. The SW182 has been designed for direct current loads, including motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW182 is suitable for switching Resistive, Capacitive and Inductive loads. The SW182 features single pole double throw, double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW182 has M8 stud main terminals and 6.3mm spade coil connections. The main contact circuit, designed for motor reversing, is such that it has a built in fail safe, so that if both coils are energised simultaneously the contact arrangement is open circuits. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this. Features:
Dimensions: We supply also the contact kit (repair service kit) for SW182 contactor. |
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||
