Though SME E68EC080A is a newer version than SME encoder E68EC050A01, its plastic flange is a weakness. Corresponding to the market requirement, we don't supply E68EC080A any more.

SME encoder E68EC050A01 is recommended as an alternative replacement of E68EC080A.

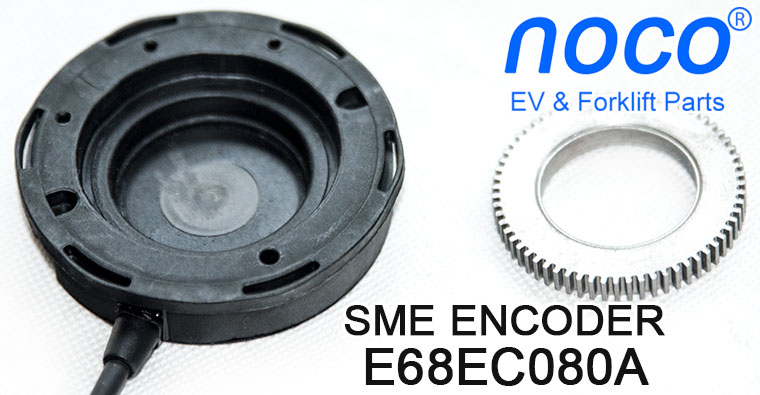

Motor Encoder Sensor E68EC080A

External Motor Speed Sensor / HELI, TCM, TAILIFT Forklift Motor Part

The SME motor encoder E68EC080A is used as external motor speed sensor. Typical application: SME motors, widely used by multiple forklift brands, HELI, TCM, TAILIFT, HANGCHA, LONKING, etc.

Key features:

• Low working temperature
• High immunity to electromagnetic noise
• Easy substitution in case of damage
• IP65 protection level

Specification:

• Model: E68EC080A (compatible with E68EC050A01, can interchange each other directly; E68EC051A01 has a different wiring sequence, can not be replaced directly by E68EC080A)
• 4-Pin connector:
  • Pin 1: red wire, positive (B+)
  • Pin 2: black wire, groud (B-)
  • Pin 3: white wire, channel A
  • Pin 4: green wire, channel B
• Components:
  • Speed sensor (part number: E68EC080A)
  • Locking flange (in pair)
  • Speed sensor gear
  • Ringnut
• Supply voltage: 5V - 24V DC
• PPR (pulses per revolution): 64
• Maximum speed: 6000 rpm
• Duty circle: 50% ± 25%
• Rated phase shift: 90° ± 45° EL
• Operating temperature: -30°C ~ +120°C
