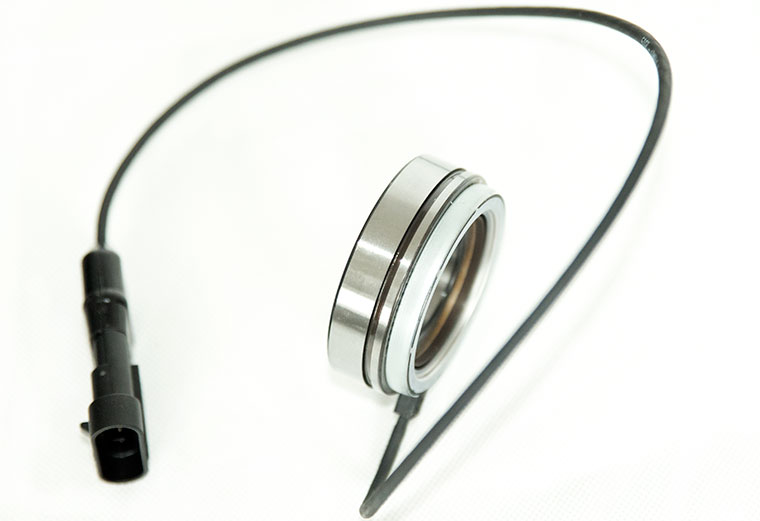

SKF Motor Encoder Unit Model: 6202 / 6204 / 6205 / 6206 / 6208 / 6209 Shaft Diameters: 15 - 45 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
109.99 - 236.99 USD
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKF Sensor BearingEncoders of AC induction motors, for continuously monitoring speed / direction of rotationSuited for most AC induction motors, the SKF Motor Encoder Unit is available in a range of sizes for shaft diameters from 15 to 45 mm, with a free cable end or connector that best fits your application. The new model sensor bearings are compatible with its precedent model, for example the BMO-6206/064S2/UA108A can replace the BMO-6206/064S2/UA106A. SKF motor encoder units use a compact and robust sensor that produces an incremental encoder signal. The sensor is accurate down to zero r/min. An integrated active circuit (requiring an external voltage supply) in the sensor body contains two Hall effect cells that produce an output signal consisting of two square waves. The signals can be interpreted by motor controllers in different ways:
The two square waves are 90° out of phase with each other. This phase shift changes sign with the direction of rotation. The presence of two signals in quadrature enables a processing unit to multiply the number of angular position increments per revolution. For example, using a standard SKF sensor bearing with 64 pulses per revolution and a standard electronic interface that can detect the rising (Low/High) and falling (High/Low) times of each of the two signals, it is possible to obtain 256 electrical events per revolution, which translates to an angular resolution of 1,4°. SKF motor encoder units provide accurate and reliable signals for effective motor control and are 100% tested for period accuracy, duty cycle and phase shift during manufacture. The SKF Motor Encoder Unit is a compact, integrated unit consisting of:
For more details , please see the product datasheet of SKF motor encoder unit (PDF format). Dimensions (unit:mm): |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cable connection: SKF motor encoder units are available as standard with either a free cable end (designation suffix 008A) or an AMP Superseal™ connector (AMP Nos. 282106-1 and 282404-1, designation suffix 108A). The standard cable lengths are listed in the product table. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKF Motor Encoder Unit Model: 6202 / 6204 / 6205 / 6206 / 6208 / 6209 Shaft Diameters: 15 - 45 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
109.99 - 236.99 USD
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SKF Sensor BearingEncoders of AC induction motors, for continuously monitoring speed / direction of rotationSuited for most AC induction motors, the SKF Motor Encoder Unit is available in a range of sizes for shaft diameters from 15 to 45 mm, with a free cable end or connector that best fits your application. The new model sensor bearings are compatible with its precedent model, for example the BMO-6206/064S2/UA108A can replace the BMO-6206/064S2/UA106A. SKF motor encoder units use a compact and robust sensor that produces an incremental encoder signal. The sensor is accurate down to zero r/min. An integrated active circuit (requiring an external voltage supply) in the sensor body contains two Hall effect cells that produce an output signal consisting of two square waves. The signals can be interpreted by motor controllers in different ways:
The two square waves are 90° out of phase with each other. This phase shift changes sign with the direction of rotation. The presence of two signals in quadrature enables a processing unit to multiply the number of angular position increments per revolution. For example, using a standard SKF sensor bearing with 64 pulses per revolution and a standard electronic interface that can detect the rising (Low/High) and falling (High/Low) times of each of the two signals, it is possible to obtain 256 electrical events per revolution, which translates to an angular resolution of 1,4°. SKF motor encoder units provide accurate and reliable signals for effective motor control and are 100% tested for period accuracy, duty cycle and phase shift during manufacture. The SKF Motor Encoder Unit is a compact, integrated unit consisting of:
For more details , please see the product datasheet of SKF motor encoder unit (PDF format). Dimensions (unit:mm): |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cable connection: SKF motor encoder units are available as standard with either a free cable end (designation suffix 008A) or an AMP Superseal™ connector (AMP Nos. 282106-1 and 282404-1, designation suffix 108A). The standard cable lengths are listed in the product table. |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
